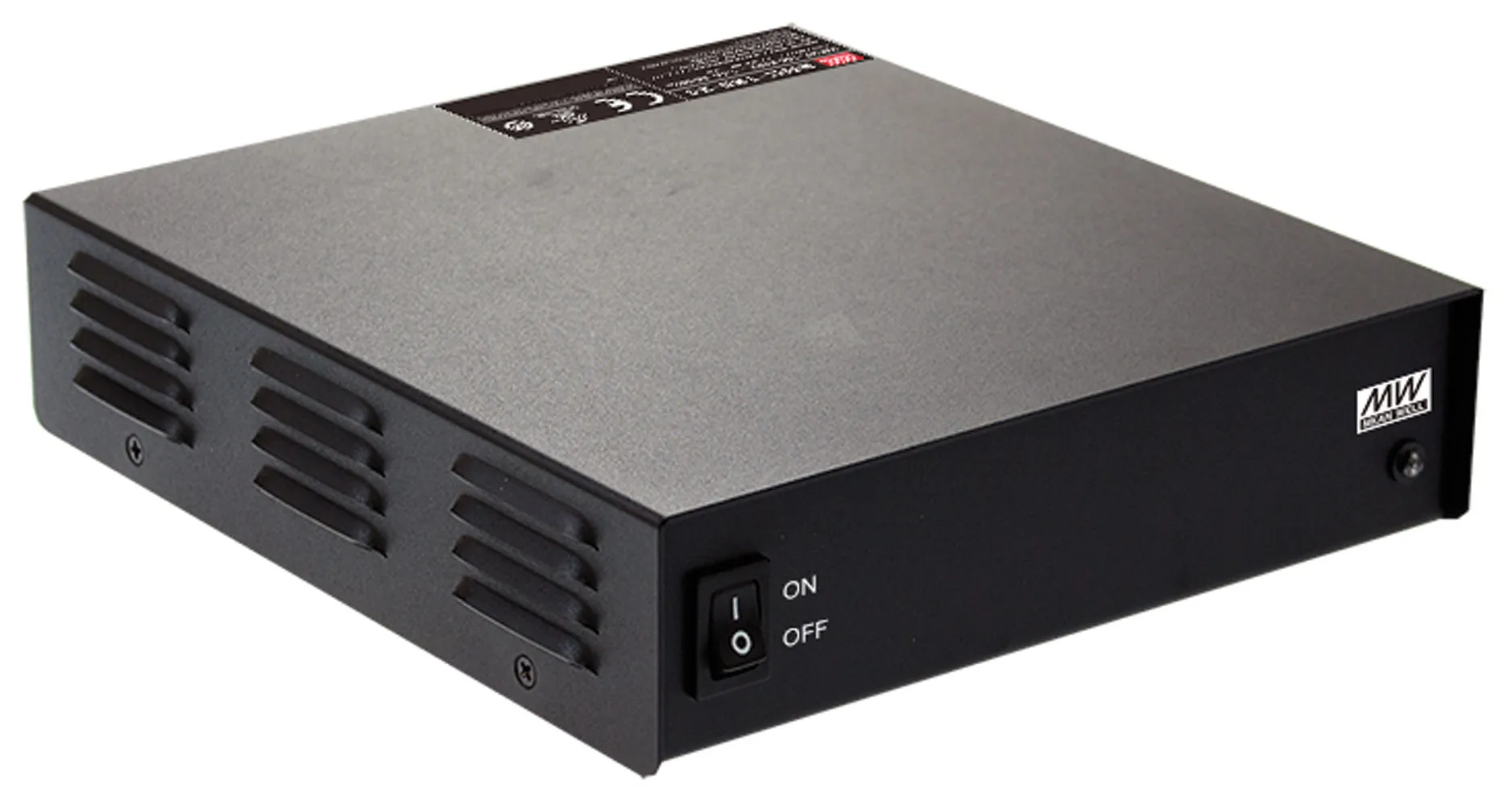

179W 13.8V 13A Level VI Desktop Type Power Supply

13.8 Volts @ 13 Amps

Features

  • Universal AC input / full range (90-264 VAC @ 47-63Hz)
  • Built-in active PFC function
  • Energy efficiency Level VI
  • No load power consumption <0.15W
  • Comply with EISA 2007/DoE, NRCan and EU ErP
  • 125% peak load capability
  • Fanless design, cooling by free air convection
  • Protections: Short circuit, overload, over voltage, over temperature
  • 3 year warranty

Applications

  • Land mobile radio system
  • TV antenna facility
  • Surveillance system

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:ENP-180

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, FCC, UL

Dimensions & Appearance

Style:Desktop
Color:Black
Height:1.79 in.
Width:7.01 in.
Length:7.56 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:1.9 A

Output

Number of Outputs:1
Output Voltage (Channel 1):13.8 VDC
Output Connector Diameters:N/A
Output Voltage:13.8 VDC
Output Connector Type:Screw Terminal Block
Additional Output Voltages (VDC):N/A
Output Current (Channel 1):13 A
Output Current:13 A

Features

Minimum Isolation Voltage:3000V
Polarity:N/A
Product Note:Level VI
AC Power Cord:NOT INCLUDED, RECOMMEND 2271575
IP Rating:N/A
Efficiency:91%
Power Rating:225 W
,
