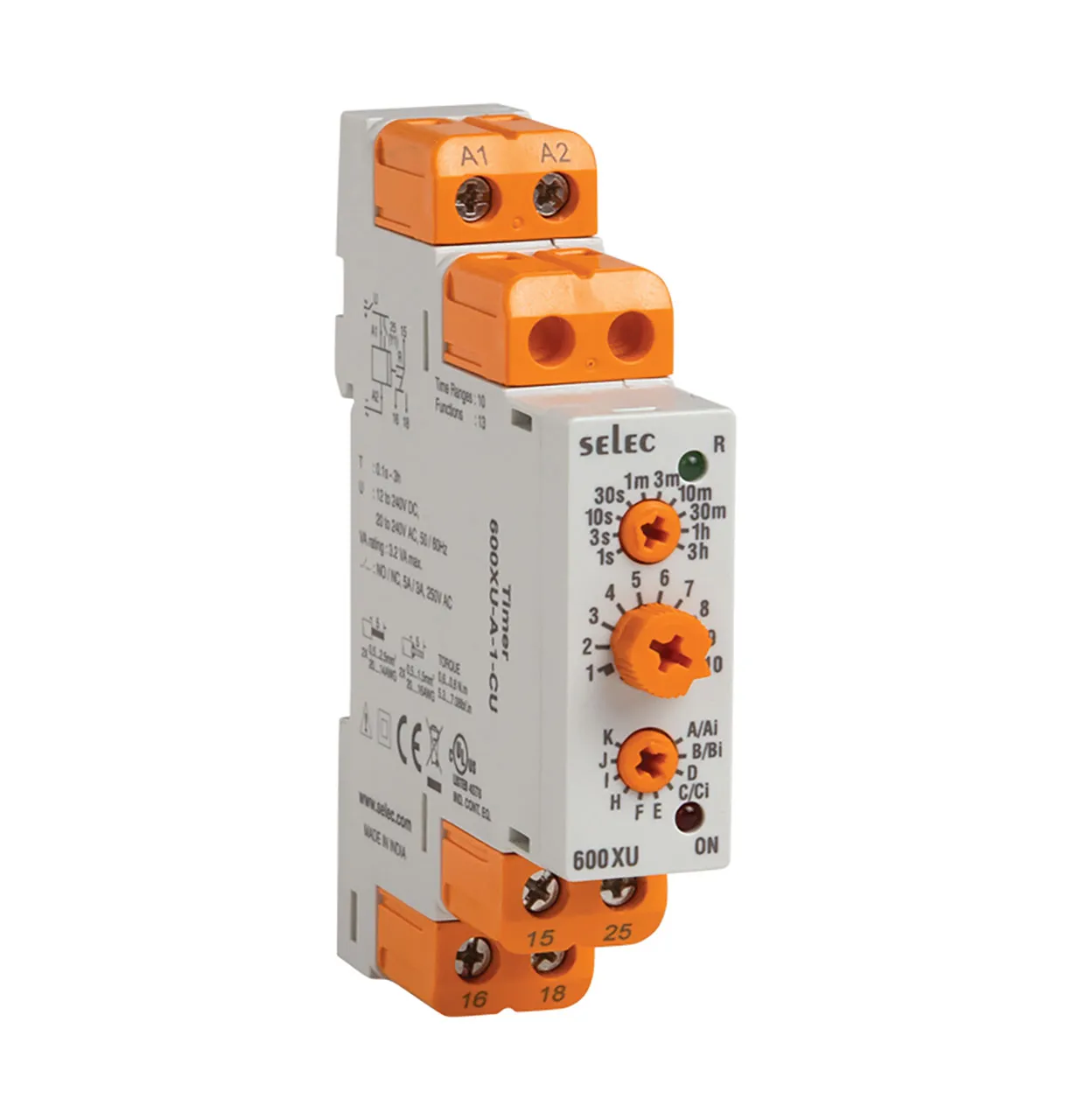

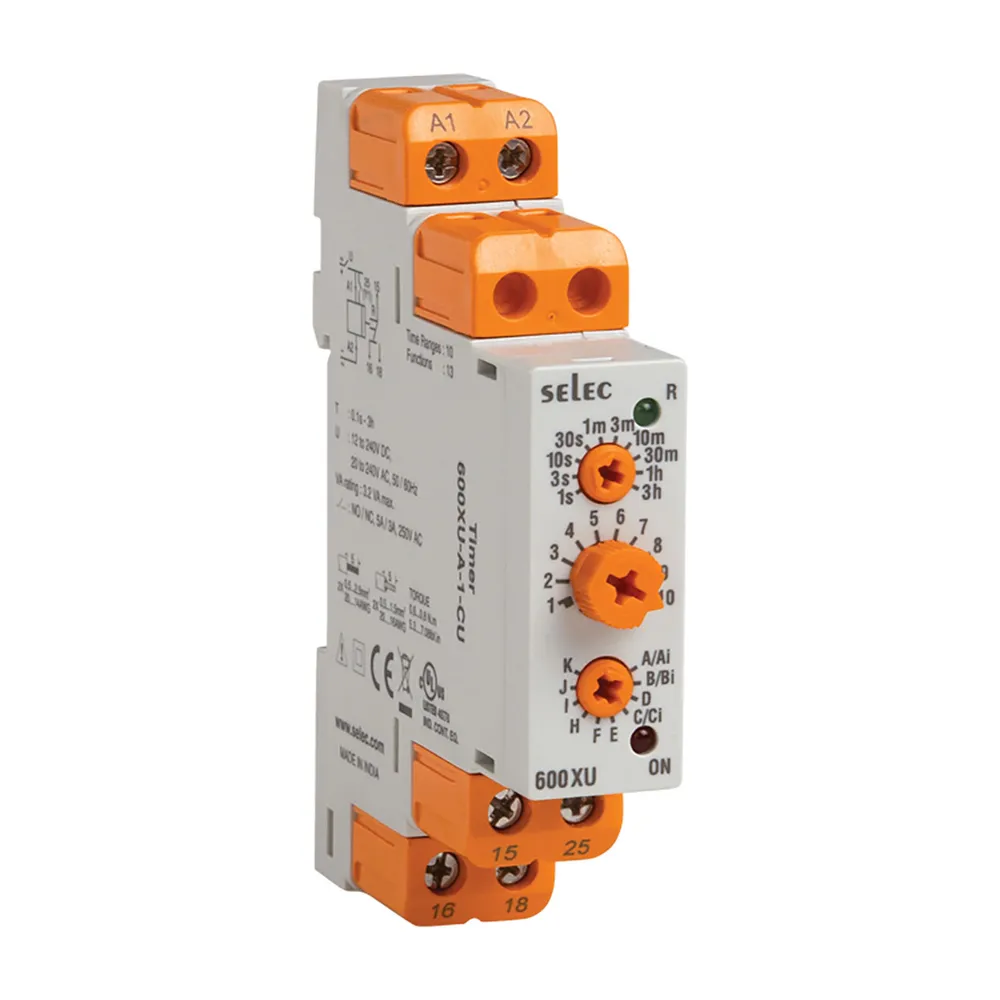

17.5mm DIN Rail Timer, Analog
Features:
Multifunction - 13 Timing Functions10 Time RangesUniversal Supply Voltage 20-240VAC @ 50/60Hz, 12-240VDCPower consumption: 4VA max. Output contact: SPDT (1 C/O) Contact rating: NO: 5A, NC: 3A @ 250VACOperating temperature: 32 to 122°F (0 to 50°C)Storage temperature: -4 to 167°F (-20 to 75°C) 17.5mm DIN Rail / Back Panel Mount Slim, Space Saving Design Finger Safe TerminalsProtection level: IP50 for faceplate, IP40 for housing, IP20 for terminalsSize: 0.69"W x 3.5"H x 2.4"D (17.5mm W x 90mm H x 60mm D)Weight: 2.26 ounces (0.14 lbs.)
