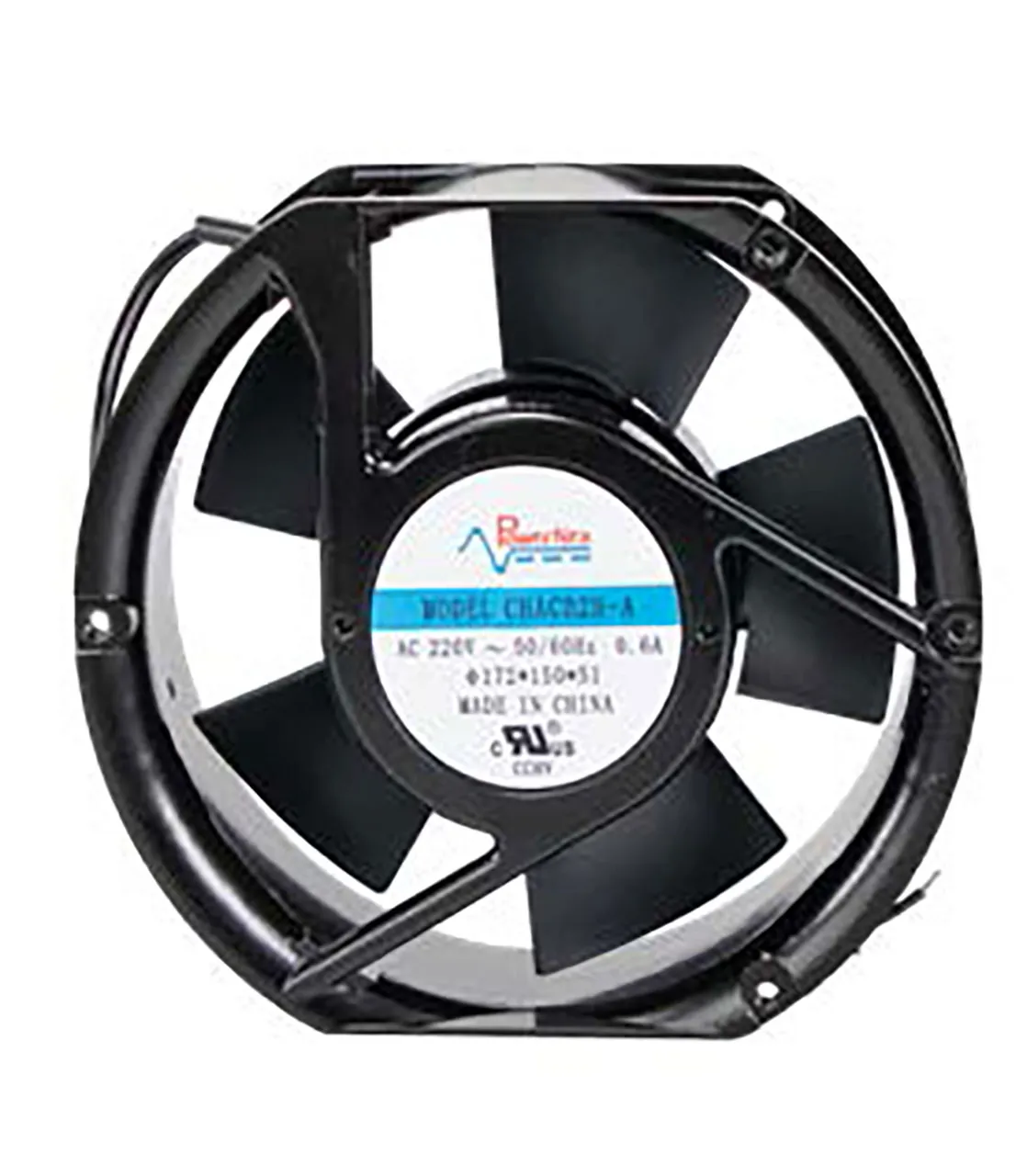

172x151x51mm Fan 220VAC Dual Ball Bearing 230 CFM 58d0 12" Wires

Features

  • Wide operating environment temperature: -20°C to +70°C.
  • Direct driven by AC power, no need for additional peripheral drivers
  • Aluminum alloy frame, sturdy and durable structure.

    • Overview

    172x151x51mm Fan 220VAC Dual Ball Bearing 230 CFM 58d0 12" Wires

Product Identification

Product Type:AC Fan
Additional Feature:Die Cast Aluminum Frame Black, PBT Impeller, Class B Insulation

Compliance

Agency Approvals: CUL, UL

Dimensions & Appearance

Depth:51 mm
Height:151 mm
Width:172 mm

Features

Bearing:Dual Ball
Noise (dBA):50
Speed:2600 rpm
Maximum Pressure:0.49 in.
Termination:12" Wires
Voltage Rating:230 VAC
Air Flow (CFM):205
Power Rating:34 W
Current Rating:230 mA
,
