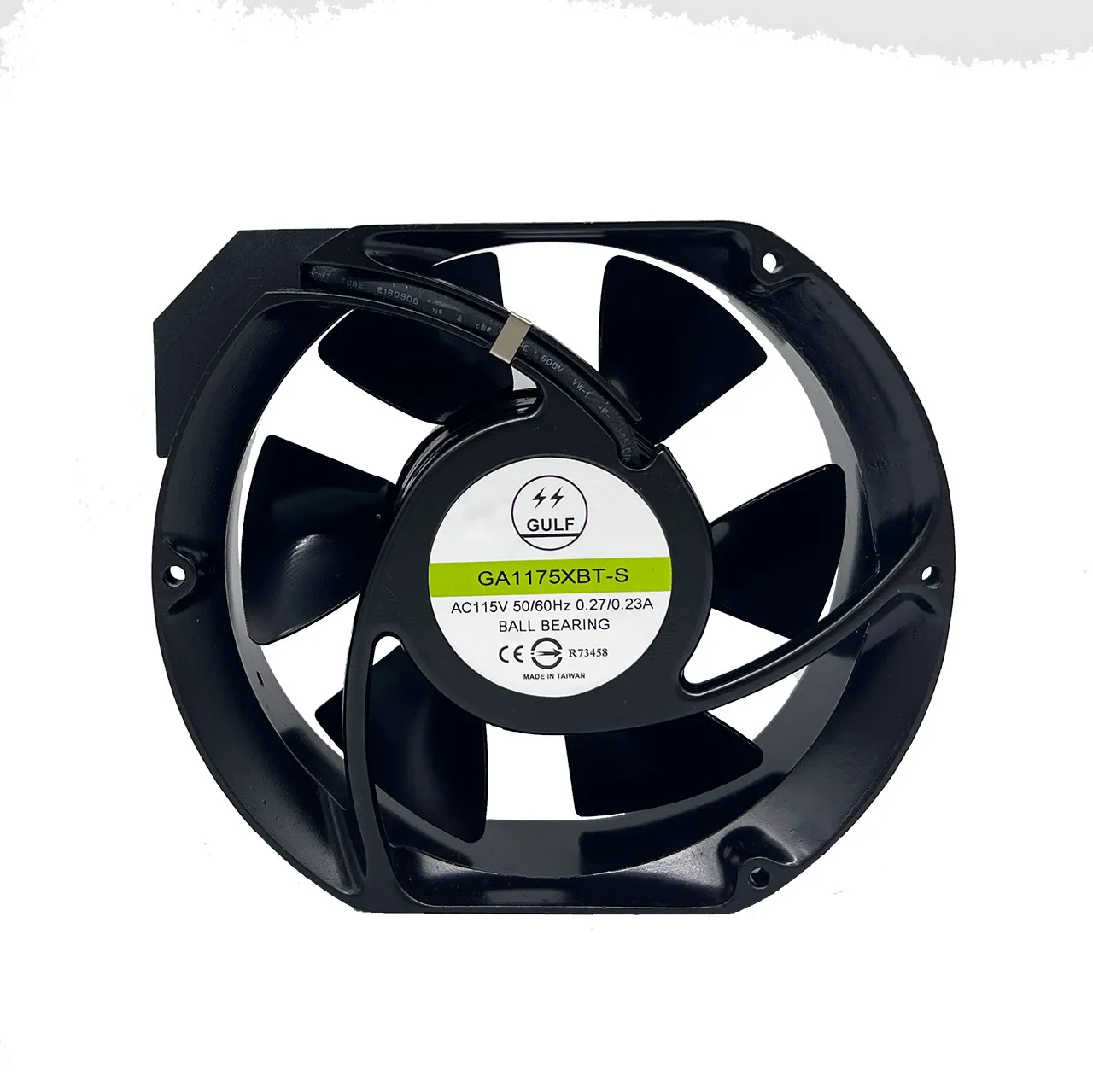

172 mm x 150 mm x 51 mm Tube Axial Fan 115 VAC Dual Ball Bearing 260CFM 61dBA Terminals

Features

  • Voltage Rating: 115 VAC
  • Height: 150 mm
  • Width: 172 mm
  • Depth: 51 mm
  • Air Flow (CFM): 260
  • Bearing: Dual Ball
  • Current Rating: 226 mA
  • Power Rating: 26 W
  • Agency Approvals: UL, CUL, TUV
  • Noise (dBA): 61
  • Termination: Terminals
  • Product Type: AC Fan
  • Speed: 3300 rpm
  • IP Rating: IP54
  • Maximum Pressure: 0.78 in.
  • Additional Features: Die Cast Aluminum Frame Black, Steel Impeller, Class F Insulation
  • Motor Drive Type: Capacitor Drive, Impedance Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Dual Ball bearing system of the tube axial fan is designed to operate up to 3300 rpm.

Product Identification

Product Type:AC Fan
Additional Feature:Die Cast Aluminum Frame Black, Steel Impeller, Class F Insulation

Compliance

Agency Approvals: CUL, TUV, UL

Dimensions & Appearance

Depth:51 mm
Height:150 mm
Width:172 mm

Features

Bearing:Dual Ball
Motor Drive Type: Impedance Protected, Capacitor Drive
IP Rating:IP54
Noise (dBA):61
Maximum Pressure:0.78 in.
Speed:3300 rpm
Voltage Rating:115 VAC
Termination:Terminals
Air Flow (CFM):260
Power Rating:26 W
Current Rating:226 mA
,
