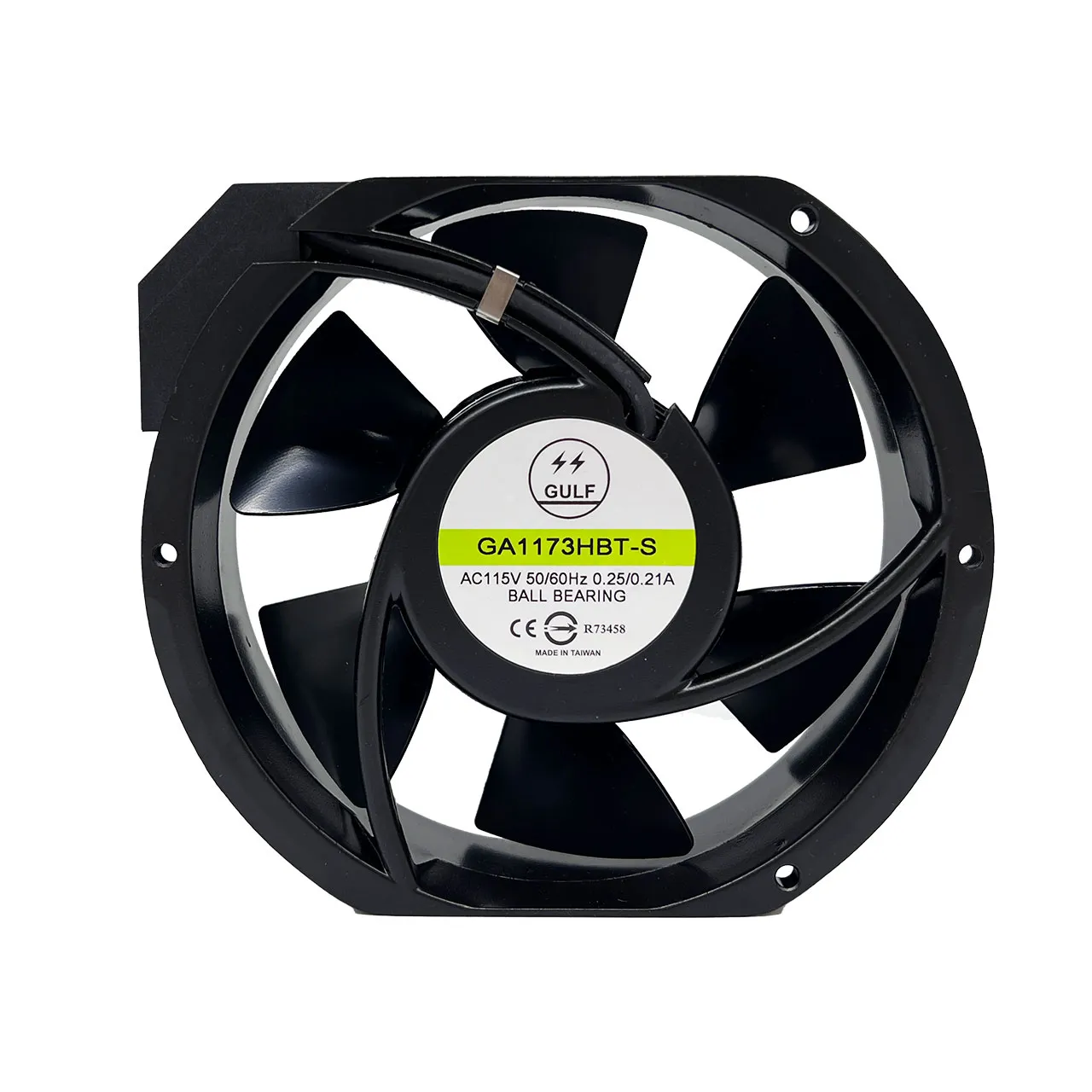

172 mm x 150 mm x 38 mm Tube Axial Fan 115 VAC Dual Ball Bearing 240CFM 59dBA Terminals

Features

  • Voltage Rating: 115 VAC
  • Height: 150 mm
  • Width: 172 mm
  • Depth: 38 mm
  • Air Flow (CFM): 240
  • Bearing: Dual Ball
  • Current Rating: 217 mA
  • Power Rating: 25 W
  • Noise (dBA): 59
  • Termination: Terminals
  • Product Type: AC Fan
  • Speed: 3100 rpm
  • Additional Features: Die Cast Aluminum Frame Black, Steel Impeller, Class A Insulation
  • Motor Drive Type: Induction

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Dual Ball bearing system of the tube axial fan is designed to operate up to 3100 rpm.

Product Identification

Product Type:AC Fan
Additional Feature:Die Cast Aluminum Frame Black, Steel Impeller, Class A Insulation

Dimensions & Appearance

Depth:38 mm
Height:150 mm
Width:172 mm

Features

Bearing:Dual Ball
Noise (dBA):59
Motor Drive Type:Induction
Speed:3100 rpm
Voltage Rating:115 VAC
Termination:Terminals
Air Flow (CFM):240
Power Rating:25 W
Current Rating:217 mA
,
