172 mm x 150 mm x 51 mm Tube Axial Fan 115 VAC Dual Ball Bearing 180CFM 61dBA Terminals

Features

  • Voltage Rating: 115 VAC
  • Height: 150 mm
  • Width: 172 mm
  • Depth: 51 mm
  • Air Flow (CFM): 180
  • Bearing: Dual Ball
  • Current Rating: 400 mA
  • Power Rating: 50 W
  • Agency Approvals: UL, CUL, TUV
  • Noise (dBA): 61
  • Termination: Terminals

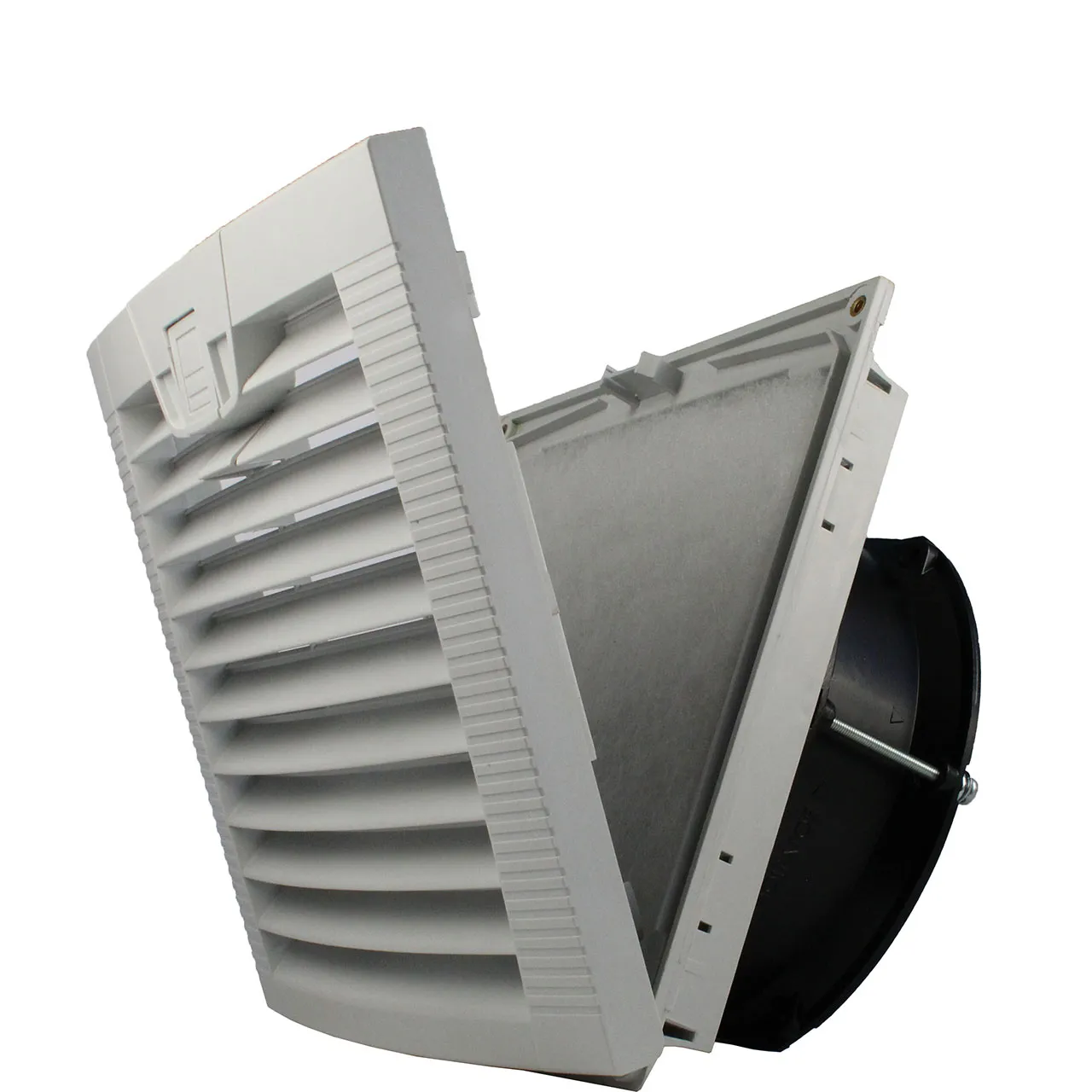

  • Product Type: Louvered Filter Fan Kit with Fan Installed
  • Speed: 3300 rpm
  • IP Rating: IP54
  • Maximum Pressure: 0.78 in.
  • Additional Features: Die Cast Aluminum Frame Black, PBT Impeller, Louvered Filter Kit, Class B Insulation, Hinged Guard
  • Motor Drive Type: Capacitor Drive, Impedance Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Dual Ball bearing system of the tube axial fan is designed to operate up to 3300 rpm.

Product Identification

Additional Feature:Die Cast Aluminum Frame Black, PBT Impeller, Louvered Filter Kit, Class B Insulation, Hinged Guard
Product Type:Louvered Filter Fan Kit with Fan Installed

Compliance

RoHS Status:ROHS Compliant
Compliance:Compliance Docs
Agency Approvals: CUL, TUV, UL

Dimensions & Appearance

Depth:51 mm
Height:150 mm
Width:172 mm

Features

Bearing:Dual Ball
IP Rating:IP54
Noise (dBA):61
Motor Drive Type:Capacitor Drive, Impedance Protected
Maximum Pressure:0.78 in.
Speed:3300 rpm
Voltage Rating:115 VAC
Air Flow (CFM):180
Termination:Terminals
Power Rating:50 W
Current Rating:400 mA
,
