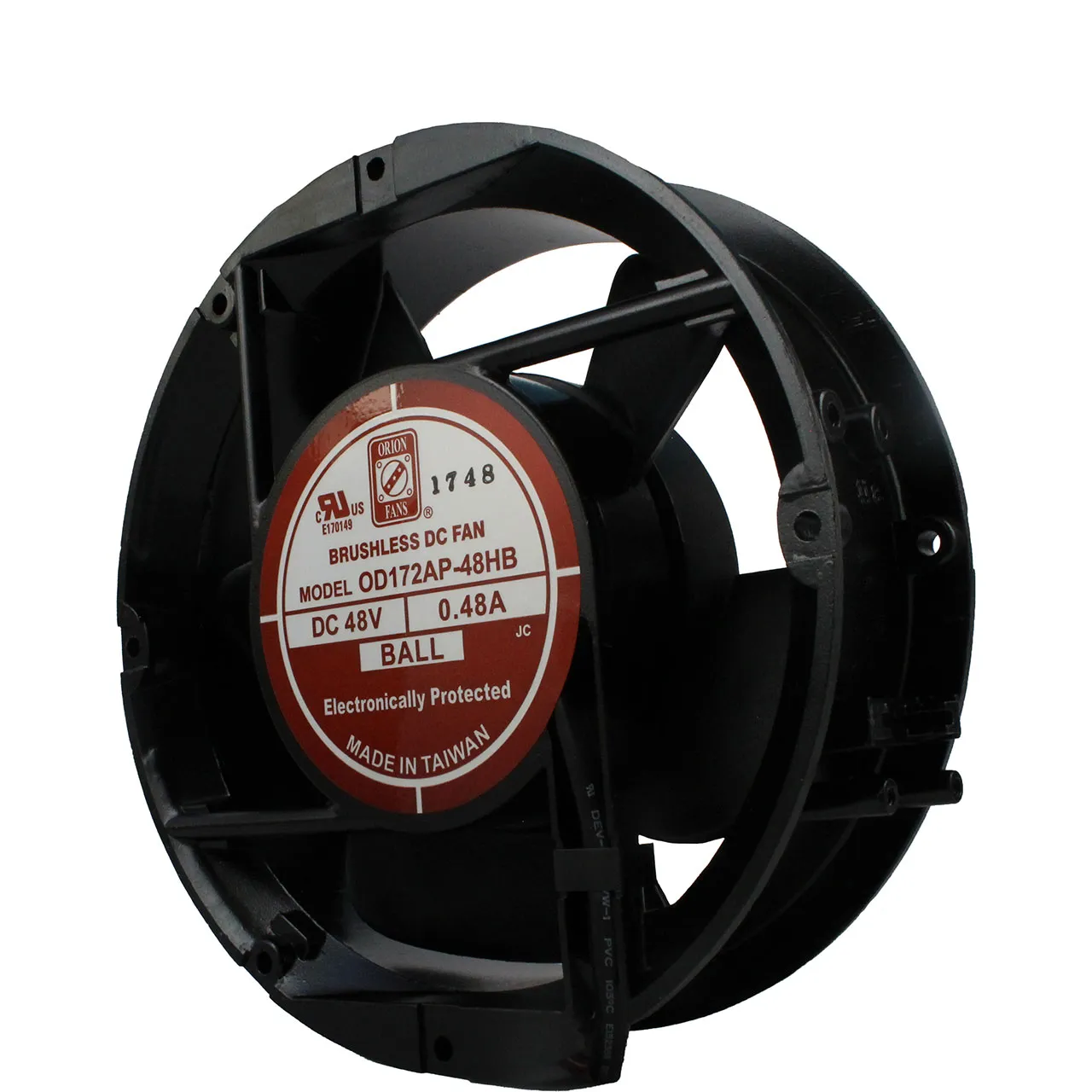

172 mm x 172 mm x 51 mm Tube Axial Fan 48 VDC Ball Bearing 318CFM 60.1dBA 12" Wires

Features

  • Voltage Rating: 48 VDC
  • Height: 172 mm
  • Width: 172 mm
  • Depth: 51 mm
  • Air Flow (CFM): 318
  • Bearing: Ball
  • Current Rating: 1300 mA
  • Power Rating: 62.4 W
  • Agency Approvals: UL, CUL, TUV, CE, UKCA
  • Noise (dBA): 60.1
  • Termination: 12" Wires
  • Product Type: 172mm x 172mm DC Fan
  • Speed: 4125 rpm
  • Maximum Pressure: 1.05 in.
  • Additional Features: Die Cast Aluminum Frame Black, PBT Impeller
  • Motor Drive Type: Brushless DC, Auto Cutoff, Auto Restart, Electronically Protected, Polarity Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 4125 rpm.

Product Identification

Additional Feature:Die Cast Aluminum Frame Black, PBT Impeller
Product Type:DC Fan

Compliance

RoHS Status:ROHS Compliant
Compliance:Compliance Docs
Agency Approvals: CE, CUL, TUV, UKCA, UL

Dimensions & Appearance

Depth:51 mm
Height:172 mm
Width:172 mm

Features

Bearing:Ball
Motor Drive Type:Brushless DC, Auto Cutoff, Auto Restart, Electronically Protected, Polarity Protected
Speed:4125 rpm
Maximum Pressure:1.05 in.
Noise (dBA):60.1
Voltage Rating:48 VDC
Termination:12" Wires
Air Flow (CFM):318
Power Rating:62.4 W
Current Rating:1300 mA
,
