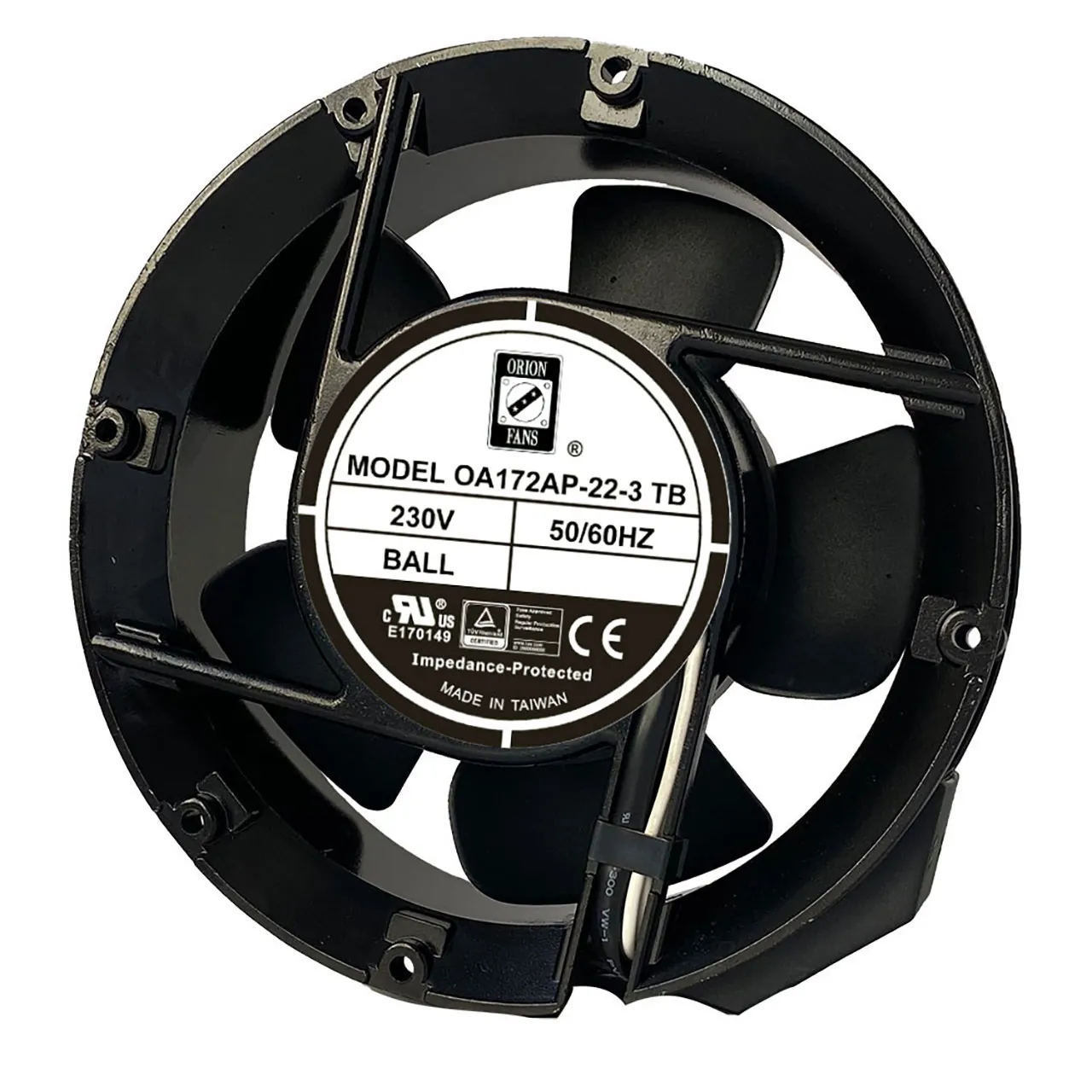

172 mm x 172 mm x 51 mm Tube Axial Fan 230 VAC Ball Bearing 135CFM 33dBA Terminals

Features

  • Voltage Rating: 230 VAC
  • Height: 172 mm
  • Width: 172 mm
  • Depth: 51 mm
  • Air Flow (CFM): 135
  • Bearing: Ball
  • Current Rating: 69 mA
  • Power Rating: 16 W
  • Agency Approvals: UL, CUL, TUV
  • Noise (dBA): 33
  • Termination: Terminals
  • Product Type: 172mm x 172mm AC Fan
  • Speed: 1800 rpm
  • Maximum Pressure: 0.43 in.
  • Motor Drive Type: Capacitor Drive, Impedance Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 1800 rpm.

,
