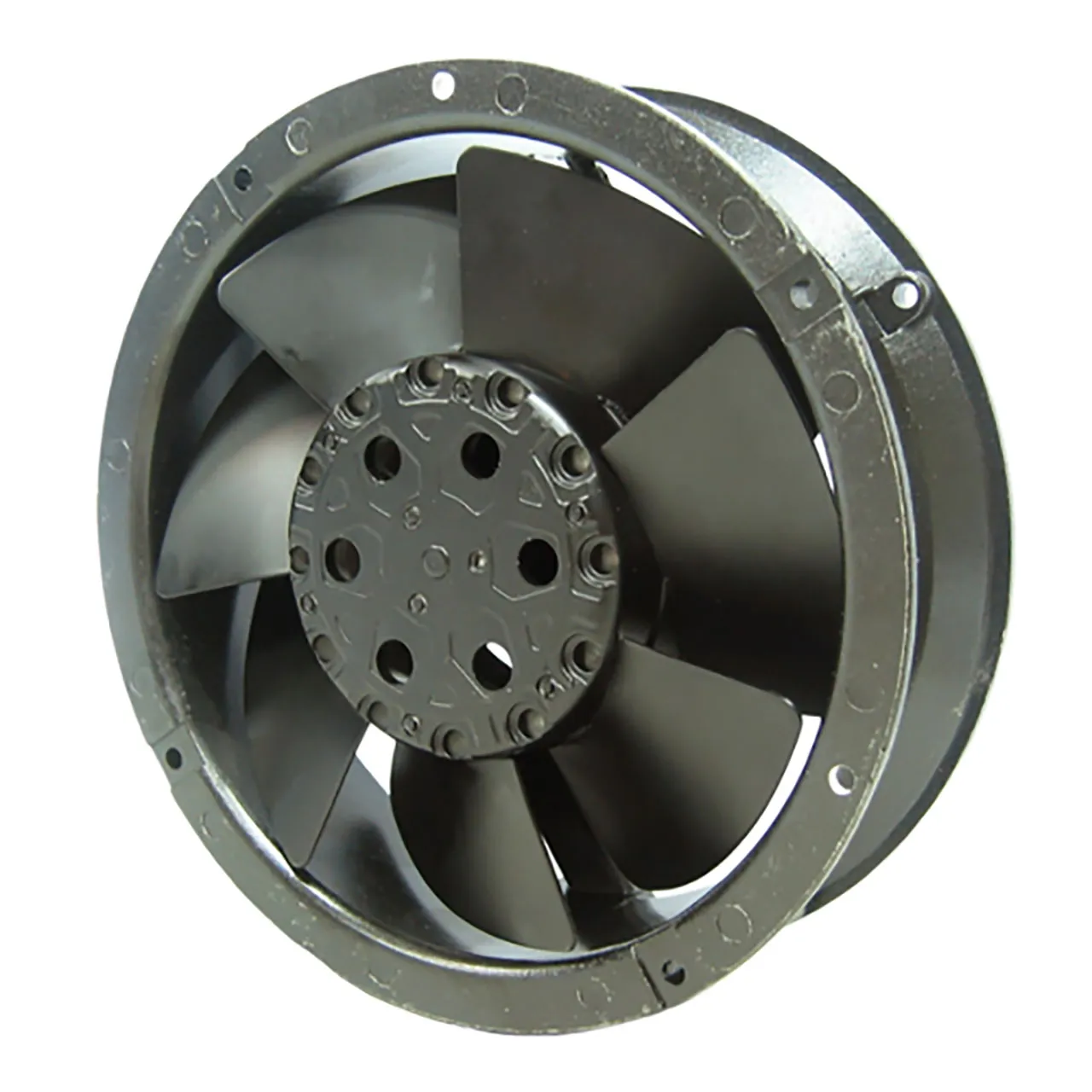

172 mm x 172 mm x 51 mm Tube Axial Fan 230 VAC Ball Bearing 105CFM 35dBA 12" Wires
Features
- Voltage Rating: 230 VAC
- Height: 172 mm
- Width: 172 mm
- Depth: 51 mm
- Air Flow (CFM): 105
- Bearing: Ball
- Current Rating: 87 mA
- Power Rating: 20 W
- Agency Approvals: UL, CUL
- Noise (dBA): 35
- Termination: 12" Wires
- Product Type: 172mm x 172mm AC Fan
- Speed: 1600 rpm
- IP Rating: IP55
- Maximum Pressure: 0.26 in.
- Motor Drive Type: AC Shaded Pole, Thermal Protected
Overview
Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 1600 rpm.
Product Identification
Product Type:AC Fan
Additional Feature:Die Cast Aluminum Frame, Steel Alloy Impeller
Compliance
Dimensions & Appearance
Depth:51 mm
Height:172 mm
Width:172 mm
Features
Bearing:Ball
Speed:1600 rpm
IP Rating:IP55
Maximum Pressure:0.26 in.
Motor Drive Type:AC, Capacitor Induction, Single Phase, Auto Cutoff, Auto Restart, Thermally Protected
Noise (dBA):35
Air Flow (CFM):105
Termination:12" Wires
Voltage Rating:230 VAC
Power Rating:20 W
Current Rating:87 mA
