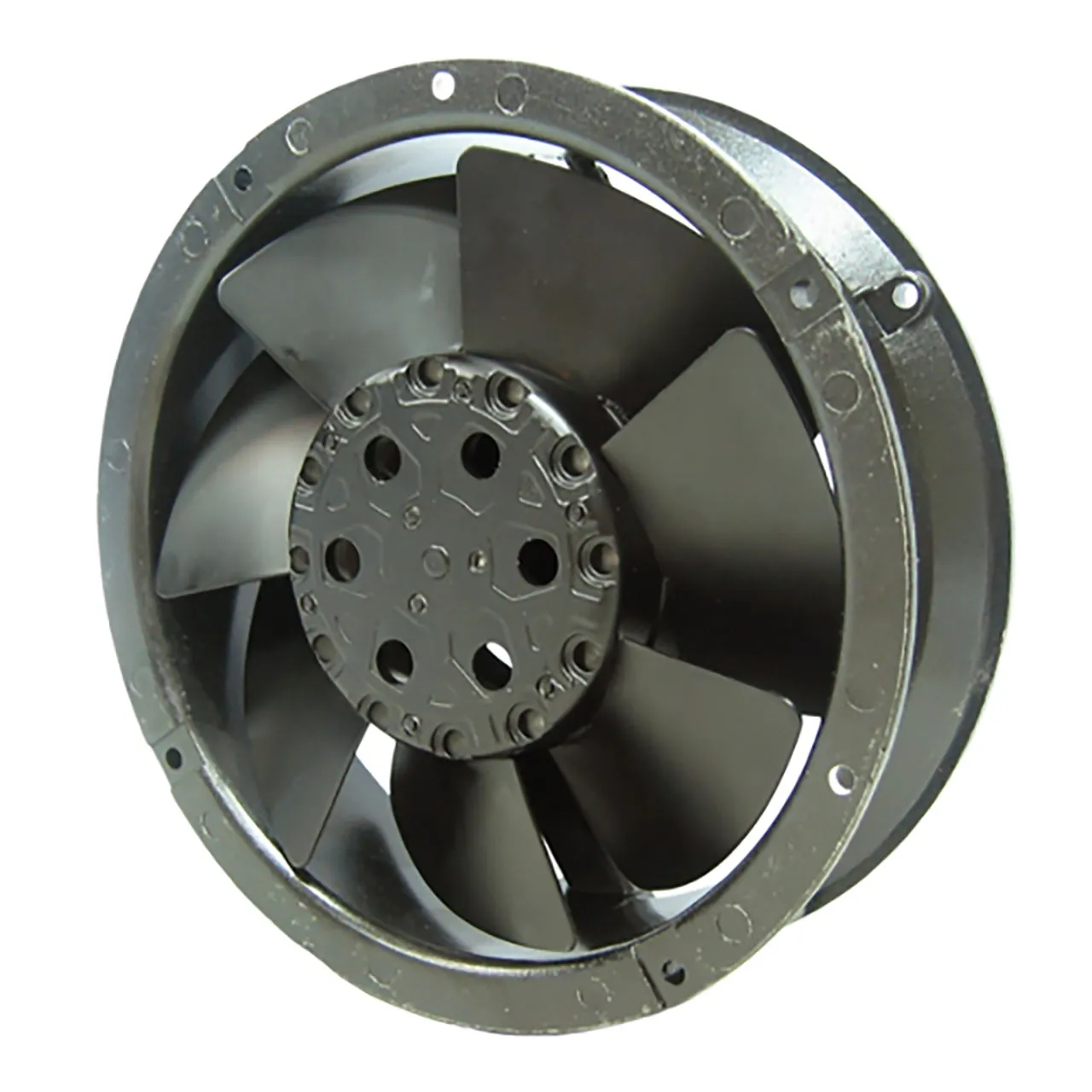

172 mm x 172 mm x 51 mm Tube Axial Fan 115 VAC Ball Bearing 110CFM 36dBA Terminals

Features

  • Voltage Rating: 115 VAC
  • Height: 172 mm
  • Width: 172 mm
  • Depth: 51 mm
  • Air Flow (CFM): 110
  • Bearing: Ball
  • Current Rating: 173 mA
  • Power Rating: 20 W
  • Agency Approvals: UL, CUL
  • Noise (dBA): 36
  • Termination: Terminals
  • Product Type: 172mm x 172mm AC Fan
  • Speed: 1600 rpm
  • IP Rating: IP55
  • Maximum Pressure: 0.27 in.
  • Motor Drive Type: AC Shaded Pole, Thermal Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 1600 rpm.

,
