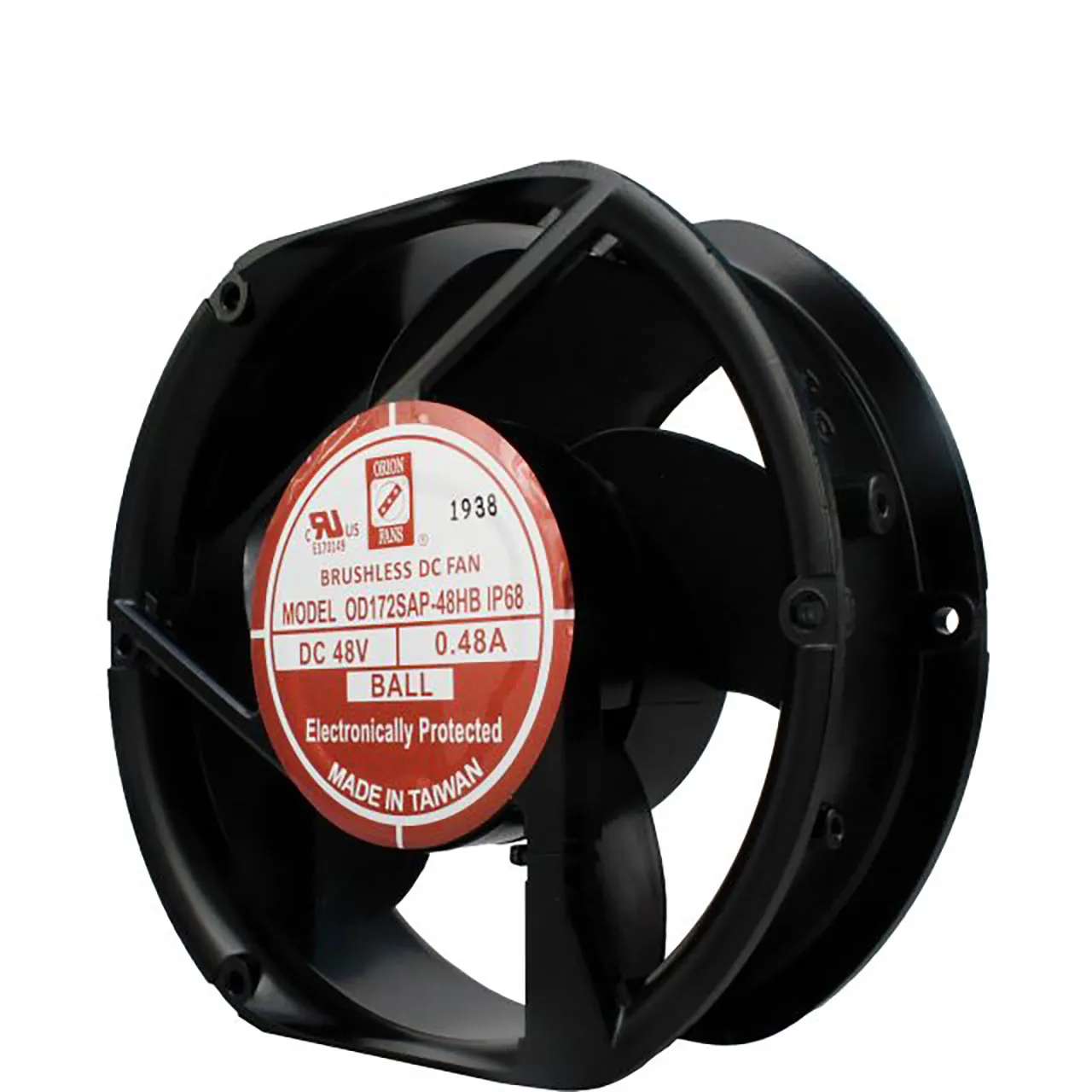

172 mm x 152 mm x 51 mm Tube Axial Fan 48 VDC Ball Bearing 300CFM 56dBA Terminals

Features

  • Voltage Rating: 48 VDC
  • Height: 152 mm
  • Width: 172 mm
  • Depth: 51 mm
  • Air Flow (CFM): 300
  • Bearing: Ball
  • Current Rating: 1030 mA
  • Power Rating: 49.44 W
  • Agency Approvals: UL, CUL, TUV, CE, UKCA
  • Noise (dBA): 56
  • Termination: Terminals
  • Product Type: 172mm x 152mm DC Fan
  • Speed: 3850 rpm
  • Maximum Pressure: 0.95 in.
  • Additional Features: Open Collector Tach Output
  • Motor Drive Type: Brushless DC, Auto Restart, Polarity Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 3850 rpm.

Product Identification

Additional Feature:Open Collector Tach Output
Product Type:DC Fan

Compliance

RoHS Status:ROHS Compliant
Compliance:Compliance Docs
Agency Approvals: CE, CUL, TUV, UKCA, UL

Dimensions & Appearance

Depth:51 mm
Height:152 mm
Width:172 mm

Features

Bearing:Ball
Motor Drive Type:Brushless DC, Auto Restart, Polarity Protected
Noise (dBA):56
Maximum Pressure:0.95 in.
Speed:3850 rpm
Voltage Rating:48 VDC
Air Flow (CFM):300
Termination:Terminals
Power Rating:49.44 W
Current Rating:1030 mA
,
