172 mm x 150 mm x 51 mm Tube Axial Fan 230 VAC Dual Ball Bearing 180CFM 61dBA Terminals

Features

  • Voltage Rating: 230 VAC
  • Height: 150 mm
  • Width: 172 mm
  • Depth: 51 mm
  • Air Flow (CFM): 180
  • Bearing: Dual Ball
  • Current Rating: 200 mA
  • Power Rating: 50 W
  • Agency Approvals: UL, CUL, TUV
  • Noise (dBA): 61
  • Termination: Terminals

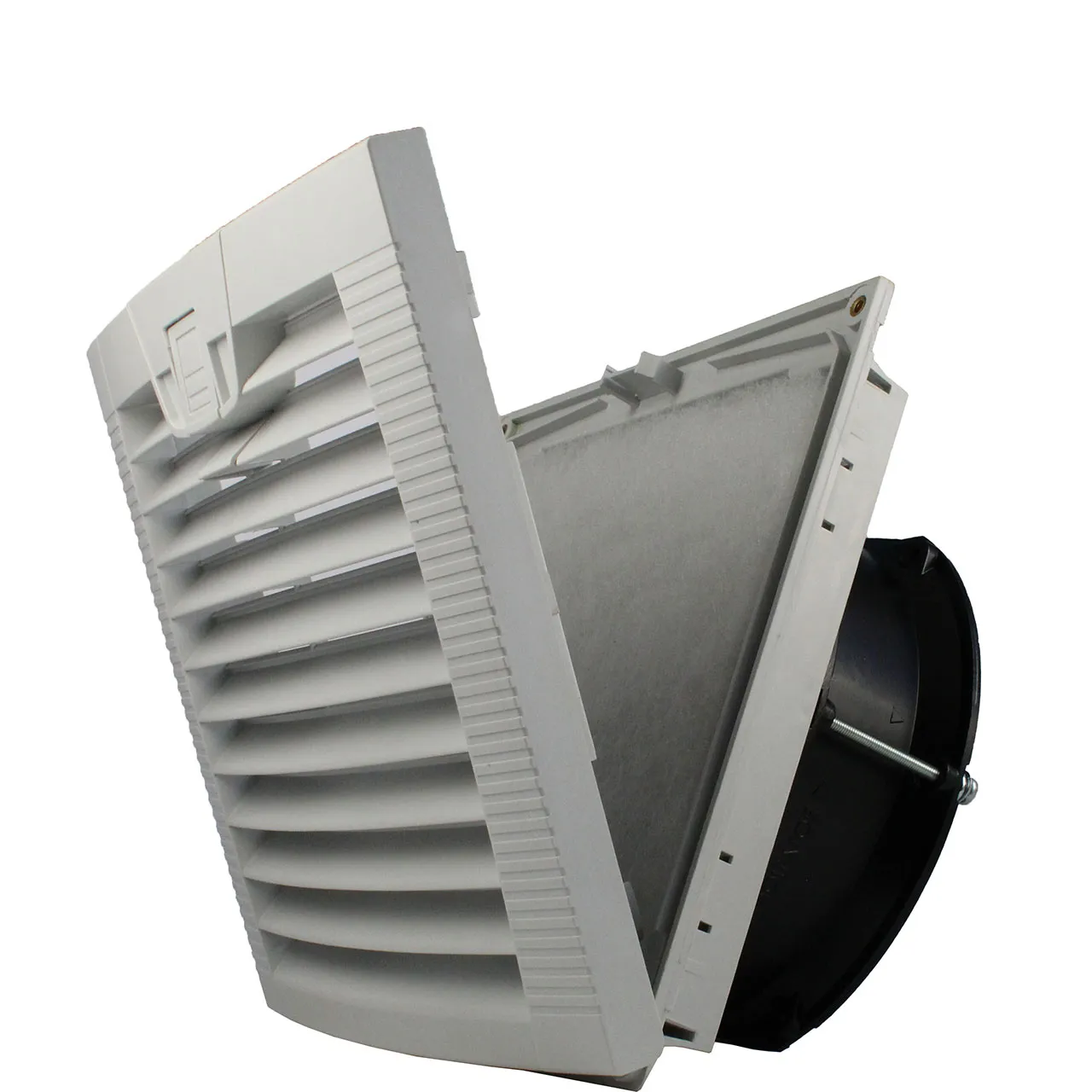

  • Product Type: Louvered Filter Fan Kit with Fan Installed
  • Speed: 3300 rpm
  • IP Rating: IP54
  • Maximum Pressure: 0.78 in.
  • Additional Features: Die Cast Aluminum Frame Black, PBT Impeller, Louvered Filter Kit, Class B Insulation
  • Motor Drive Type: Capacitor Drive, Impedance Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Dual Ball bearing system of the tube axial fan is designed to operate up to 3300 rpm.

,
