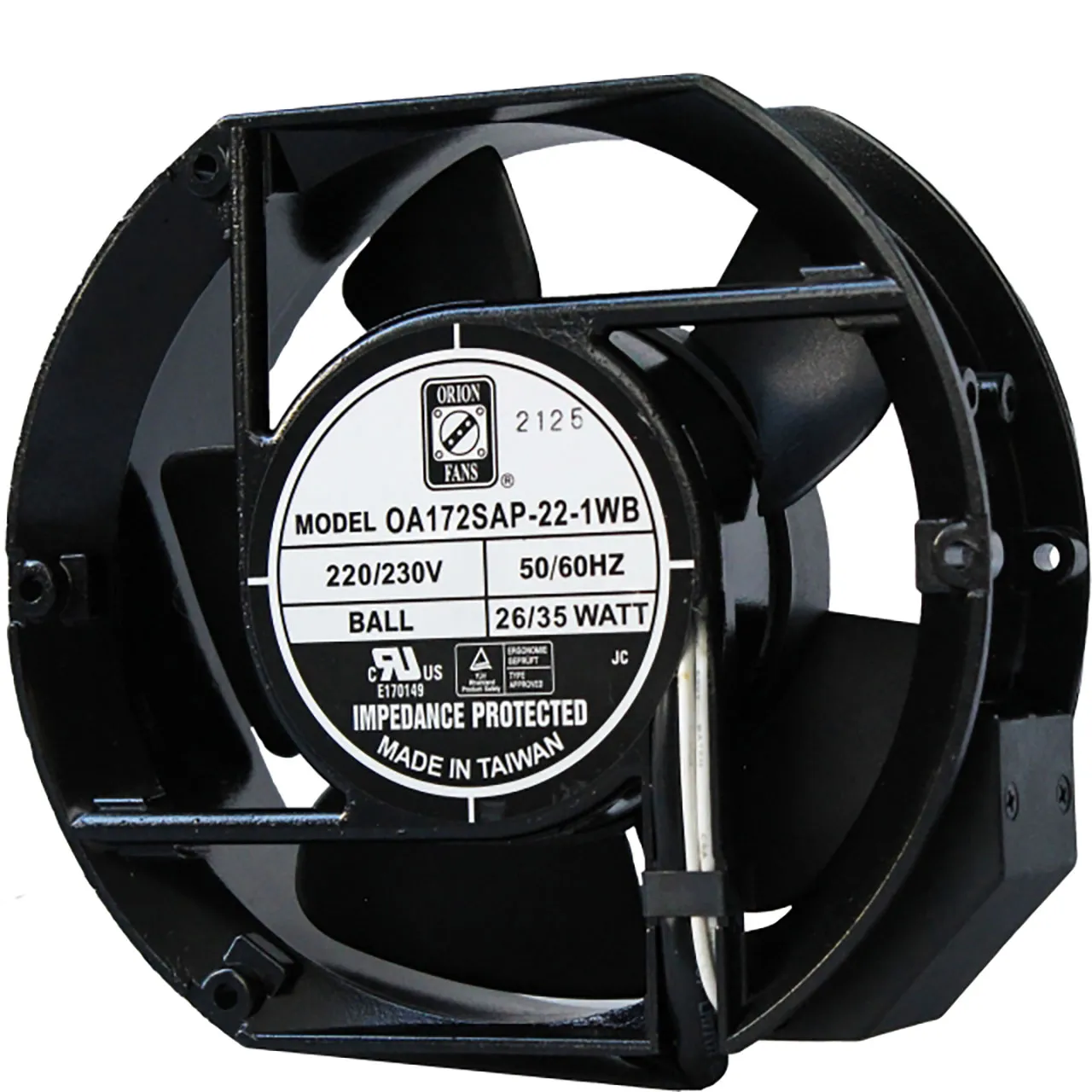

172 mm x 150 mm x 51 mm Tube Axial Fan 230 VAC Ball Bearing 226CFM 58dBA Terminals

Features

  • Voltage Rating: 230 VAC
  • Height: 150 mm
  • Width: 172 mm
  • Depth: 51 mm
  • Air Flow (CFM): 226
  • Bearing: Ball
  • Current Rating: 126 mA
  • Power Rating: 29 W
  • Agency Approvals: UL, CUL, TUV
  • Noise (dBA): 58
  • Termination: Terminals
  • Product Type: 172mm x 150mm AC Fan
  • Speed: 3400 rpm
  • IP Rating: Salt Fog
  • Maximum Pressure: 0.79 in.
  • Motor Drive Type: AC Capacitor Drive, Thermal Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 3400 rpm.

,
