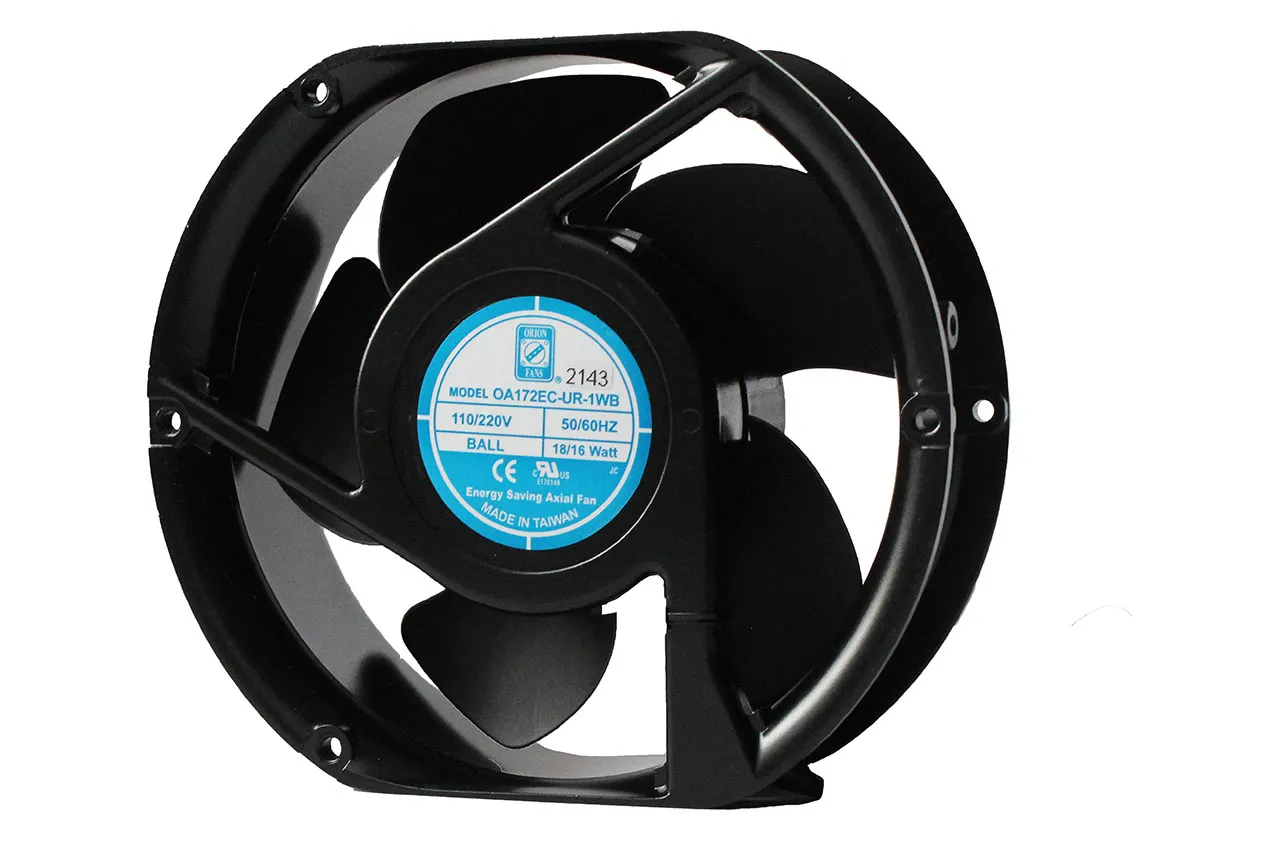

172 mm x 150 mm x 51 mm Tube Axial Fan 230 VAC Ball Bearing 220CFM 57.3dBA 12" Wires

Features

  • Voltage Rating: 230 VAC
  • Height: 150 mm
  • Width: 172 mm
  • Depth: 51 mm
  • Air Flow (CFM): 220
  • Bearing: Ball
  • Current Rating: 65 mA
  • Power Rating: 15 W
  • Agency Approvals: UL, CUL, CE
  • Noise (dBA): 57.3
  • Termination: 12" Wires
  • Product Type: 172mm x 150mm AC Fan
  • Speed: 3000 rpm
  • Maximum Pressure: 0.62 in.
  • Motor Drive Type: EC Motor, Electronically Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 3000 rpm.

Product Identification

Product Type:AC Fan

Compliance

RoHS Status:ROHS Compliant
Compliance:Compliance Docs
Agency Approvals: CE, CUL, UL

Dimensions & Appearance

Depth:51 mm
Height:150 mm
Width:172 mm

Features

Bearing:Ball
Motor Drive Type:EC Motor, Electronically Protected
Speed:3000 rpm
Maximum Pressure:0.62 in.
Termination:12" Wires
Noise (dBA):57.3
Air Flow (CFM):220
Voltage Rating:230 VAC
Power Rating:15 W
Current Rating:65 mA
,
