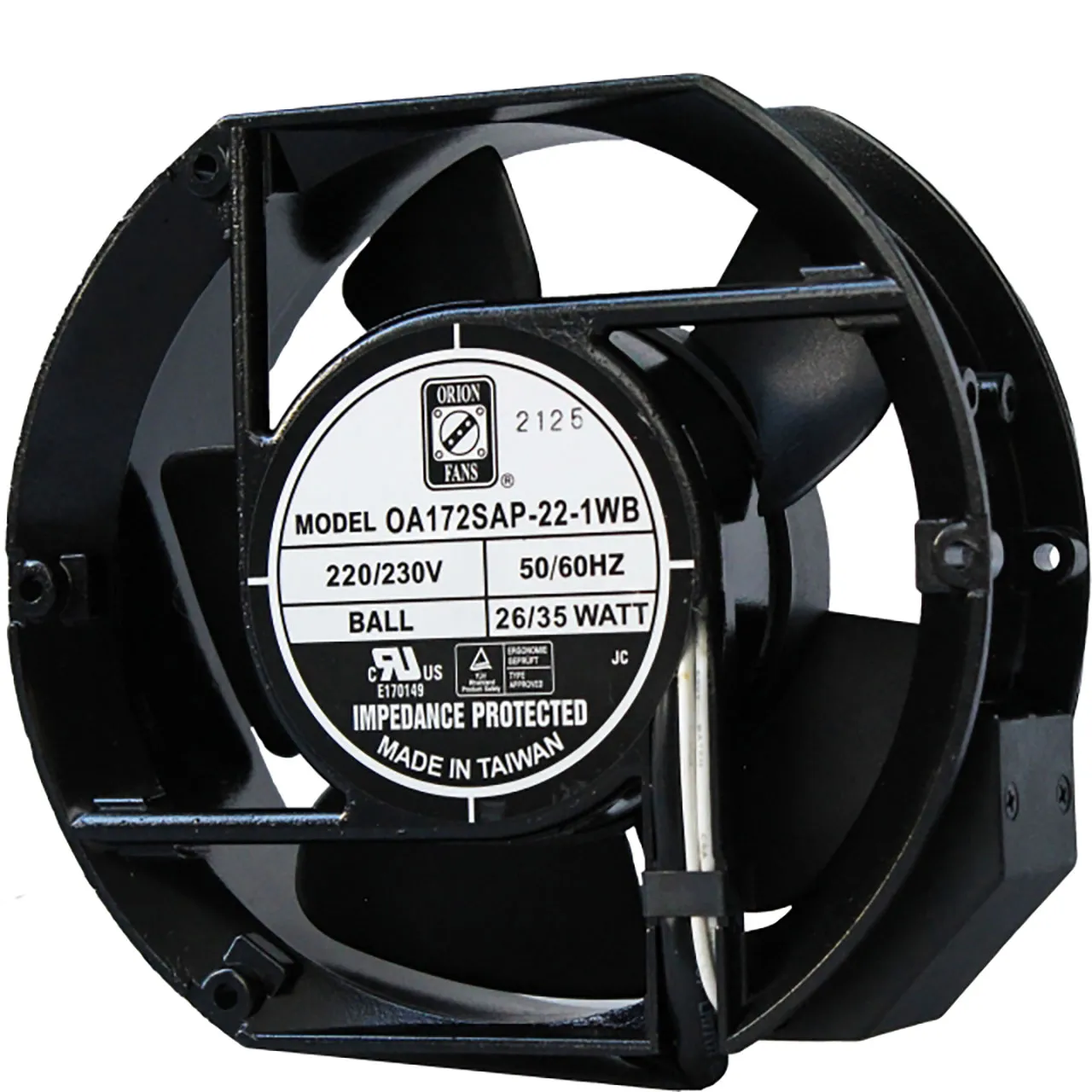

172 mm x 150 mm x 51 mm Tube Axial Fan 230 VAC Ball Bearing 170CFM 39.8dBA Terminals

Features

  • Voltage Rating: 230 VAC
  • Height: 150 mm
  • Width: 172 mm
  • Depth: 51 mm
  • Air Flow (CFM): 170
  • Bearing: Ball
  • Current Rating: 87 mA
  • Power Rating: 20 W
  • Agency Approvals: UL, CUL, TUV
  • Noise (dBA): 39.8
  • Termination: Terminals
  • Product Type: 172mm x 150mm AC Fan
  • Speed: 2300 rpm
  • Maximum Pressure: 0.49 in.
  • Motor Drive Type: Capacitor Drive, Thermal Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 2300 rpm.

,
