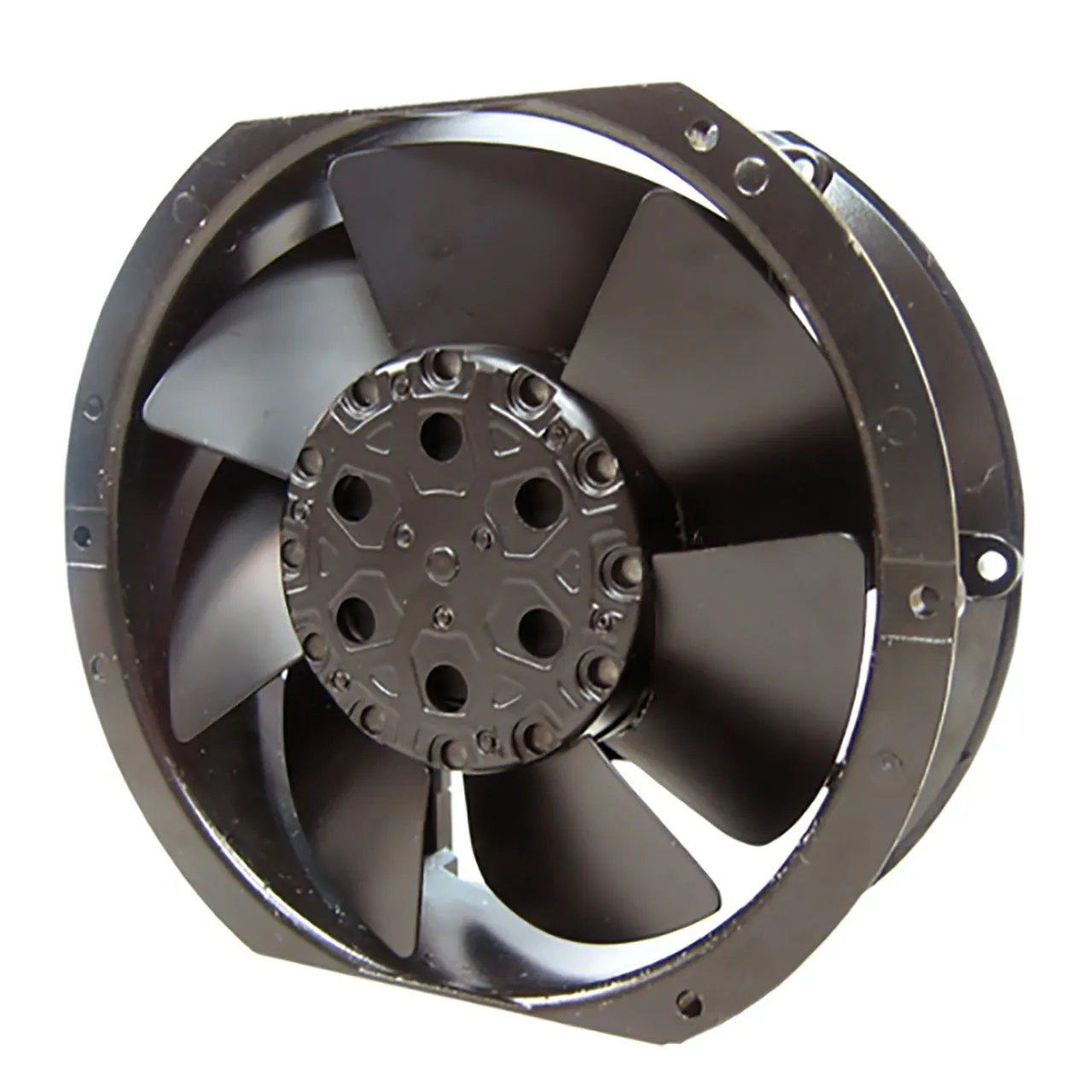

172 mm x 150 mm x 51 mm Tube Axial Fan 115 VAC Ball Bearing 210CFM 58dBA 12" Wires

Orion Fans

Jameco Part #:

Manufacturer #:

Primary datasheet

Product Price:

$66.250

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$66.250	-	-
5+	$60.950	5.30	8%
25+	$55.950	10.30	15.55%

Features

Voltage Rating: 115 VAC
Height: 150 mm
Width: 172 mm
Depth: 51 mm
Air Flow (CFM): 210
Bearing: Ball
Current Rating: 365 mA
Power Rating: 42 W
Agency Approvals: UL, CUL
Noise (dBA): 58
Termination: 12" Wires
Product Type: 172mm x 150mm AC Fan
Speed: 3100 rpm
IP Rating: IP55
Maximum Pressure: 0.49 in.
Motor Drive Type: AC Shaded Pole, Thermal Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 3100 rpm.
