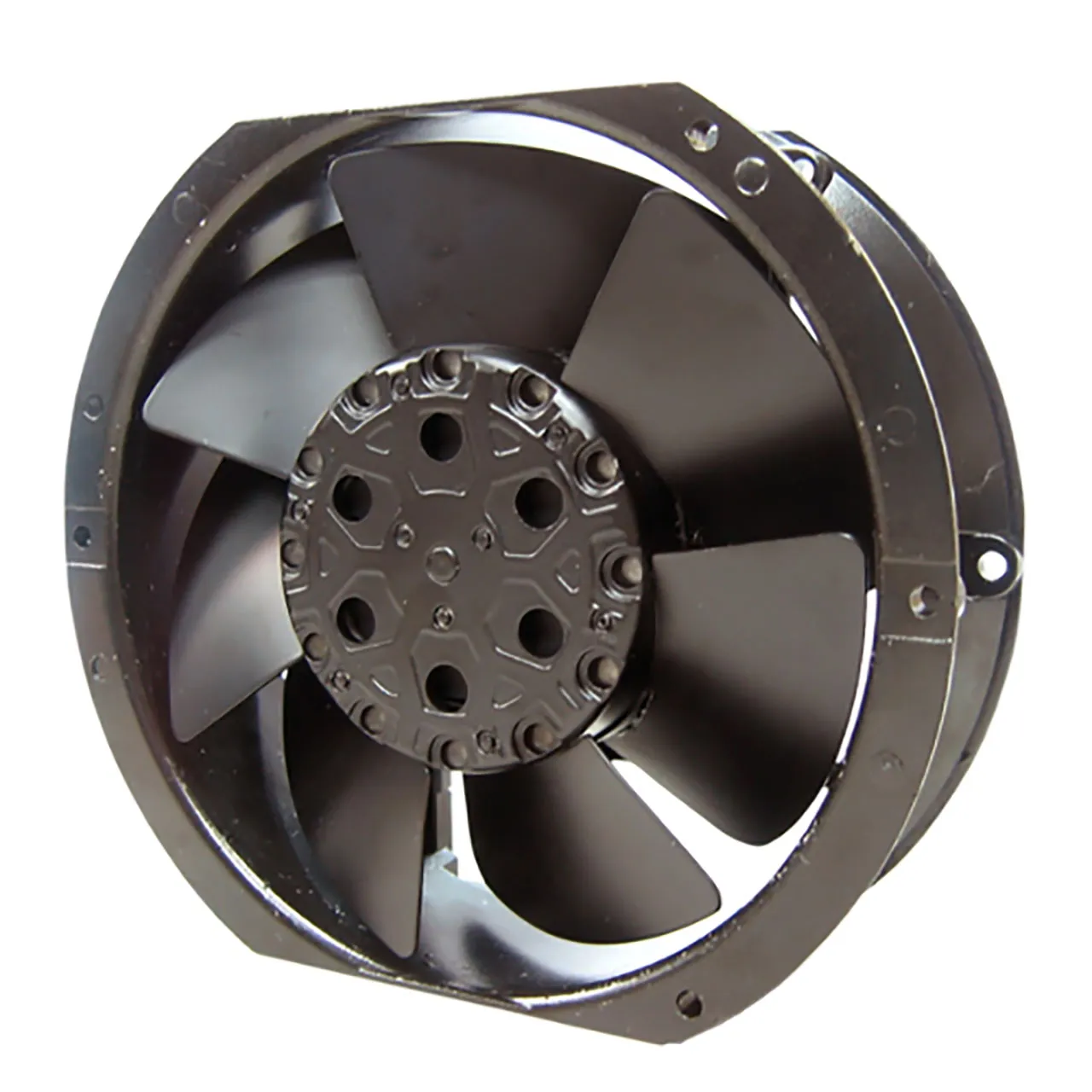

172 mm x 150 mm x 51 mm Tube Axial Fan 115 VAC Ball Bearing 105CFM 35dBA 12" Wires

Features

  • Voltage Rating: 115 VAC
  • Height: 150 mm
  • Width: 172 mm
  • Depth: 51 mm
  • Air Flow (CFM): 105
  • Bearing: Ball
  • Current Rating: 173 mA
  • Power Rating: 20 W
  • Agency Approvals: UL, CUL
  • Noise (dBA): 35
  • Termination: 12" Wires
  • Product Type: 172mm x 150mm AC Fan
  • Speed: 1600 rpm
  • IP Rating: IP55
  • Maximum Pressure: 0.26 in.
  • Motor Drive Type: AC Shaded Pole, Thermal Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 1600 rpm.

Product Identification

Product Type:AC Fan

Compliance

RoHS Status:ROHS Compliant
Compliance:Compliance Docs
Agency Approvals: CUL, UL

Dimensions & Appearance

Depth:51 mm
Height:150 mm
Width:172 mm

Features

Bearing:Ball
Speed:1600 rpm
IP Rating:IP55
Maximum Pressure:0.26 in.
Motor Drive Type:AC Shaded Pole, Thermal Protected
Noise (dBA):35
Air Flow (CFM):105
Termination:12" Wires
Voltage Rating:115 VAC
Power Rating:20 W
Current Rating:173 mA
,
