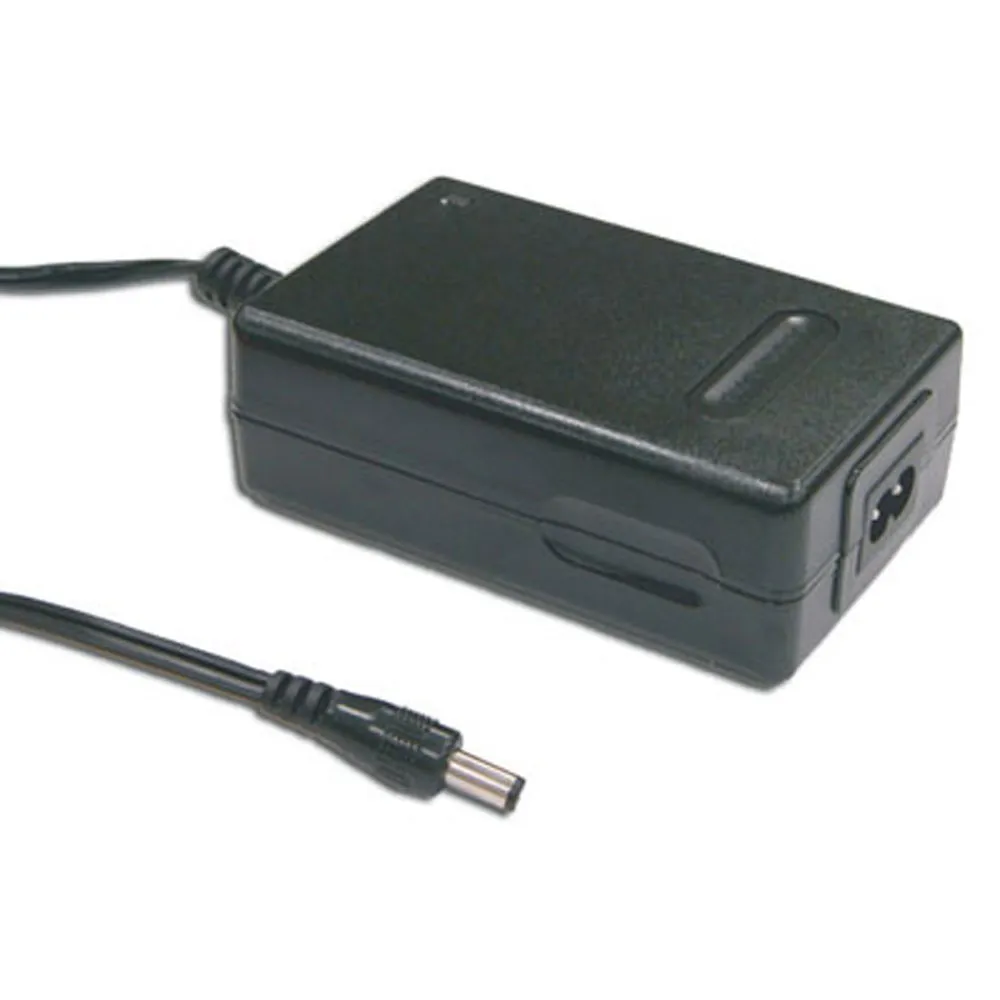

16.8 ~ 30 Watt Power Adaptor with Charging Function

4.2 Volts @ 4 Amps

Features :
  • Compliance to EN55014-1 class B, FCC part 15 Class B
  • Compliance to EN61000-3-2,3
  • Compliance to EN61000-4-2,3,4,5,6,11, light industry level, criteria A
  • HARMONIC CURRENT
  • EMS IMMUNITY
  • EMI CONDUCTION & RADIATION
  • OVERLOAD
  • OVER VOLTAGE
  • 90 ~ 110% Constant current mode and over 300% pulsing mode
  • Protection type : Constant current limiting, recovers automatically after fault condition is removed
  • 110 ~ 135% rated output voltage
  • Protection type : Clamp by zener diode
  • Universal AC input / Full range
  • 2 pole AC Inlet IEC320-C8
  • Class power (without earth pin)
  • No load power consumption <1.0W
  • Constant current and voltage(CC,CV mode)
  • Suitable for continue load
  • For high surge current equipment
  • Protections: Short circuit / Overload / Over voltage / Over temp.
  • 2 colors LED indicate for charging status
  • Fully enclosed plastic case
  • High reliability
  • Approvals: UL / CUL / TUV / CB / FCC / CE
  • 2 years warranty

    • Product Identification

    Additional Feature:For Lead-Acid, For Li-Ion
    Product Type:Power Supply with Charger
    Manufacturer Series:GC30B

    Compliance

    Agency Approvals: CB, CE, CUL, EN, FCC, TUV, UL

    Dimensions & Appearance

    Color:Black
    Height:1.40 in.
    Width:2.60 in.
    Length:4.30 in.

    Operating conditions

    Minimum Operating Temperature:0°C
    Maximum Operating Temperature:50°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:90 VAC to 264 VAC
    Maximum Input Current:0.7 A

    Output

    Output Range:3.6 VDC to 4.4 VDC
    Output Connector Diameters:2.1mm x 5.5mm
    Output Voltage:4.2 VDC
    Output Connector Type:Cylindrical Female
    Output Current:4 A

    Features

    PFC Function:No
    AC Power Cord:NOT INCLUDED, RECOMMEND 189587
    Efficiency:70%
    Power Rating:16.8 W
    ,
