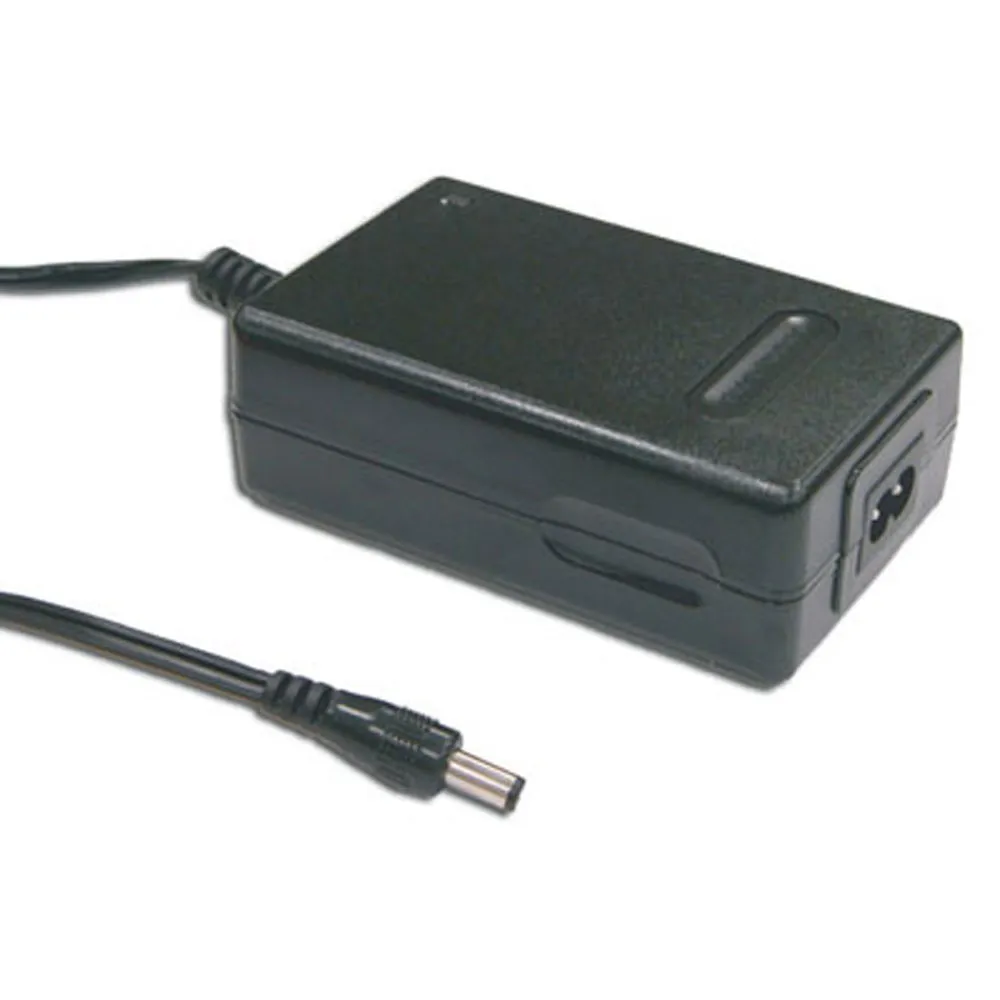

16.8 ~ 30 Watt Power Adaptor with Charging Function

14.3 Volts @ 2.09 Amps

Features

  • Compliance to EN55014-1 class B, FCC part 15 Class B
  • Compliance to EN61000-3-2,3
  • Compliance to EN61000-4-2,3,4,5,6,11, light industry level, criteria A
  • HARMONIC CURRENT
  • EMS IMMUNITY
  • EMI CONDUCTION & RADIATION
  • OVERLOAD
  • OVER VOLTAGE
  • 90 ~ 110% Constant current mode and over 300% pulsing mode
  • Protection type: Constant current limiting, recovers automatically after fault condition is removed
  • 110 ~ 135% rated output voltage
  • Protection type: Clamp by Zener diode
  • Universal AC input / Full range
  • 2 pole AC Inlet IEC320-C8, (AC cord not included, we recommend a 2-conductor AC power cord like P/N: 189587)
  • Class power (without earth pin)
  • No load power consumption <1.0W
  • Constant current and voltage (CC, CV mode)
  • Suitable for continuous load
  • For high surge current equipment
  • Protections: Short circuit / Overload / Over voltage / Over temp.
  • 2 colors LED indicate for charging status
  • Fully enclosed plastic case
  • High reliability
  • Approvals: UL / CUL / TUV / CB / FCC / CE
  • 2 years warranty

Product Identification

Manufacturer Series:GC30B
Additional Feature:For Lead-Acid, For Li-Ion
Product Type:Power Supply with Charger

Compliance

Agency Approvals: CB, CE, CUL, EN, FCC, TUV, UL

Dimensions & Appearance

Color:Black
Height:1.40 in.
Width:2.60 in.
Length:4.30 in.

Operating conditions

Minimum Operating Temperature:0°C
Maximum Operating Temperature:50°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:0.7 A

Output

Output Connector Diameters:2.1mm x 5.5mm
Output Range:7.7 VDC to 8.6 VDC
Output Connector Type:Cylindrical Female
Output Voltage:14.3 VDC
Output Current:2.09 A

Features

PFC Function:No
AC Power Cord:NOT INCLUDED, RECOMMEND 189587
Efficiency:78%
Power Rating:30 W
,
