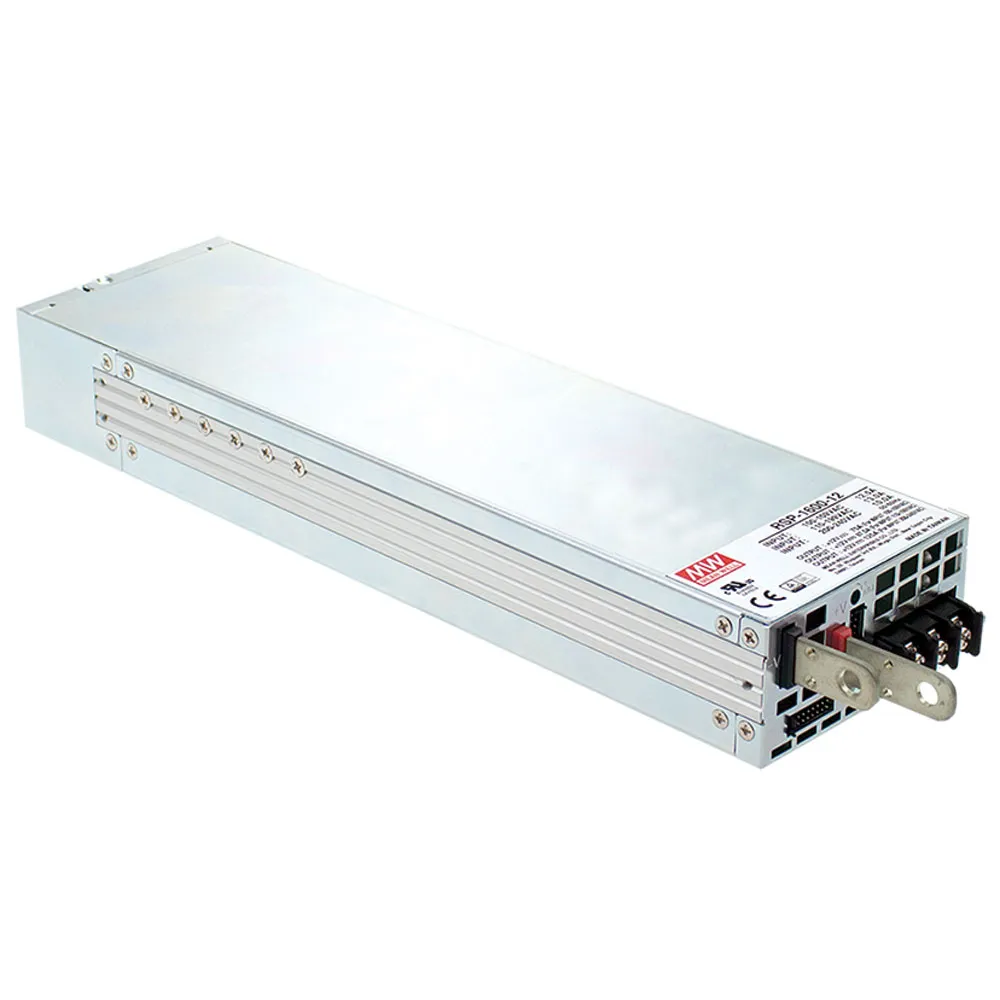

1608 Watt 24 Volt 67 Amp Enclosed Switching Power Supply

  • 24 Volts @ 67 Amps

    Features

    • Universal AC input / Full range (Withstand 300VAC surge input for5 seconds)
    • Built-in active PFC function
    • High efficiency up to 91.5%
    • Forced air cooling by built-in DC fan
    • Output voltage and constant current level programmable
    • Active current sharing up to 9600W (5+1)
    • Built-in remote ON-OFF control / remote sense / auxiliary power DC OK signal / OTP alarm signal
    • Protections: Short circuit / Overload / Over voltage / Over temperature
    • Optional PMBus protocol
    • 5 year warranty

    Applications

    • Factory control or automation apparatus
    • Test and measurement instrument
    • Laser related machine
    • Aging facility
    • Digital broadcasting
    • Constant current source
    • Redundant system

    Certificates

    • Safety: UL/EN/IEC 60950-1
    • EMC: EN 55022 / 55024

    Overview

    • Product Identification

    Type:Auto Switching SMPS
    Manufacturer Series:RSP-1600

    Compliance

    Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

    Dimensions & Appearance

    Style:Enclosed
    Color:Silver
    Height:1.61 in.
    Length:11.81 in.
    Width:3.35 in.

    Operating conditions

    Minimum Operating Temperature:-30°C
    Maximum Operating Temperature:70°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:90 VAC to 264 VAC
    Maximum Input Current:14 A

    Output

    Number of Outputs:1
    Output Voltage (Channel 1):24 VDC
    Output Connector Type:Lug Terminal Female
    Output Voltage:24 VDC
    Output Current (Channel 1):67 A
    Output Current:67 A

    Features

    PFC Function:Yes
    Minimum Isolation Voltage:3000V
    Efficiency:91.5%
    Power Rating:1608 W
    ,
