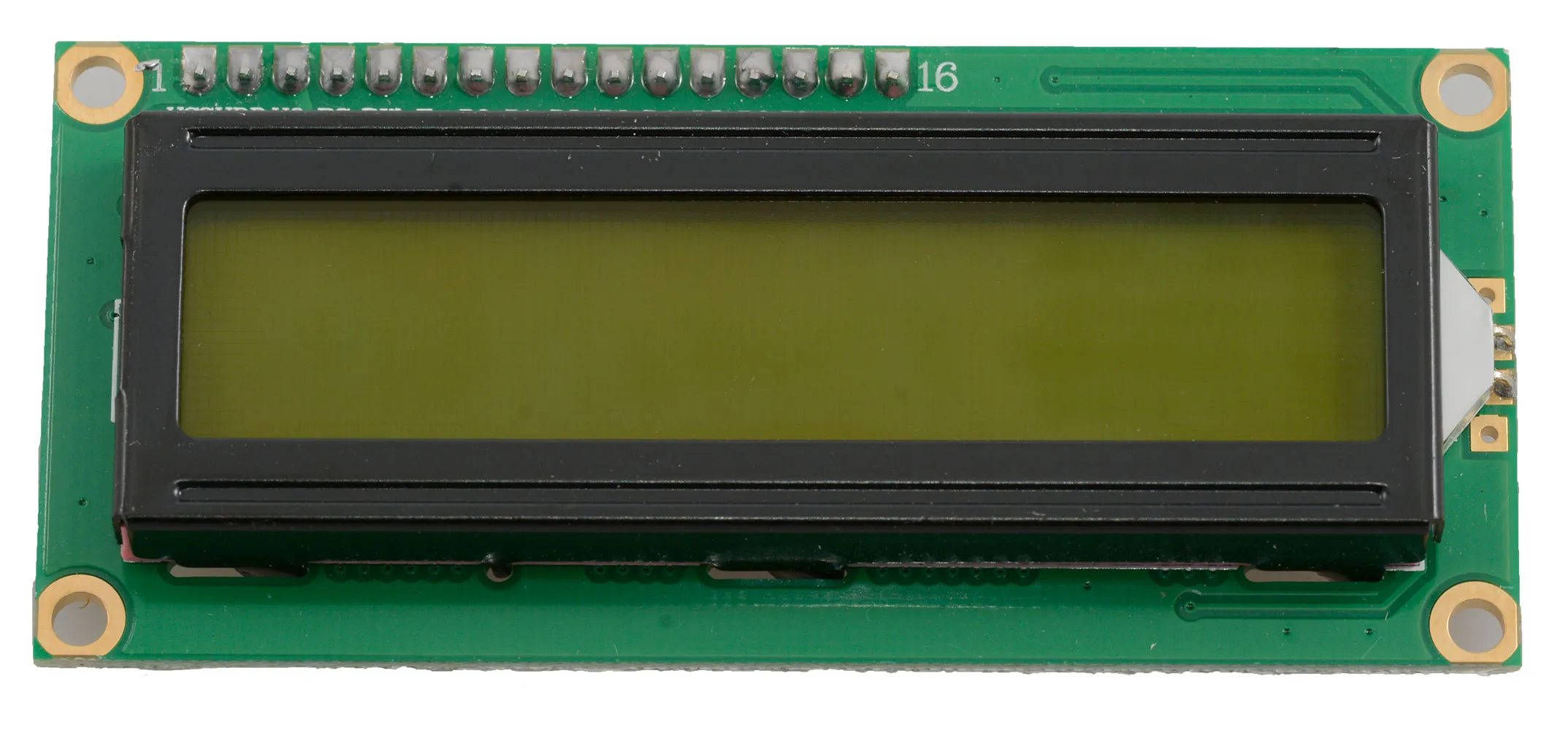

16 x 2 Character LCD Black Text with Yellow-Green Backlight and Pre-Soldered Headers

A low cost solution to showing messages directly from your microcontroller.

Specifications

  • Character format: 5 x 8 dots with cursor
  • Duty: 1/16
  • Bias: 1/5
  • 5V screen
  • Header pre-soldered
  • Module size (mm)(WxHxT): 80 x 36 x 12 (with LED) max.
  • Viewing area (mm)(WxH): 65 x 14
  • Character size: 2.95 x 4.35 mm
  • Character pitch: 3.65 x 5.05 mm
  • Dot size: 0.55 x 0.5 mm

Pin Out

  • 1: GND
  • 2: VCC
  • 3: VO
  • 4: RS
  • 5: RW
  • 6: CS
  • 7-14: DB0 to DB7
  • 15: LED-A
  • 16: LED-K

Input

Maximum Input Voltage:5 V

Features

Backlight (Y/N):Y
Character / Background Color: Yellow-Green, Black
Character Format:5x8
Characters x Lines:16x2
Module Size (W x H x T):3.15 in. x 1.42 in. x 0.47 in.
Display Size (WxH) Inches:2.56 x 0.55
Supply Current:100 mA
Interface:Parallel 4/8 Bit
,
