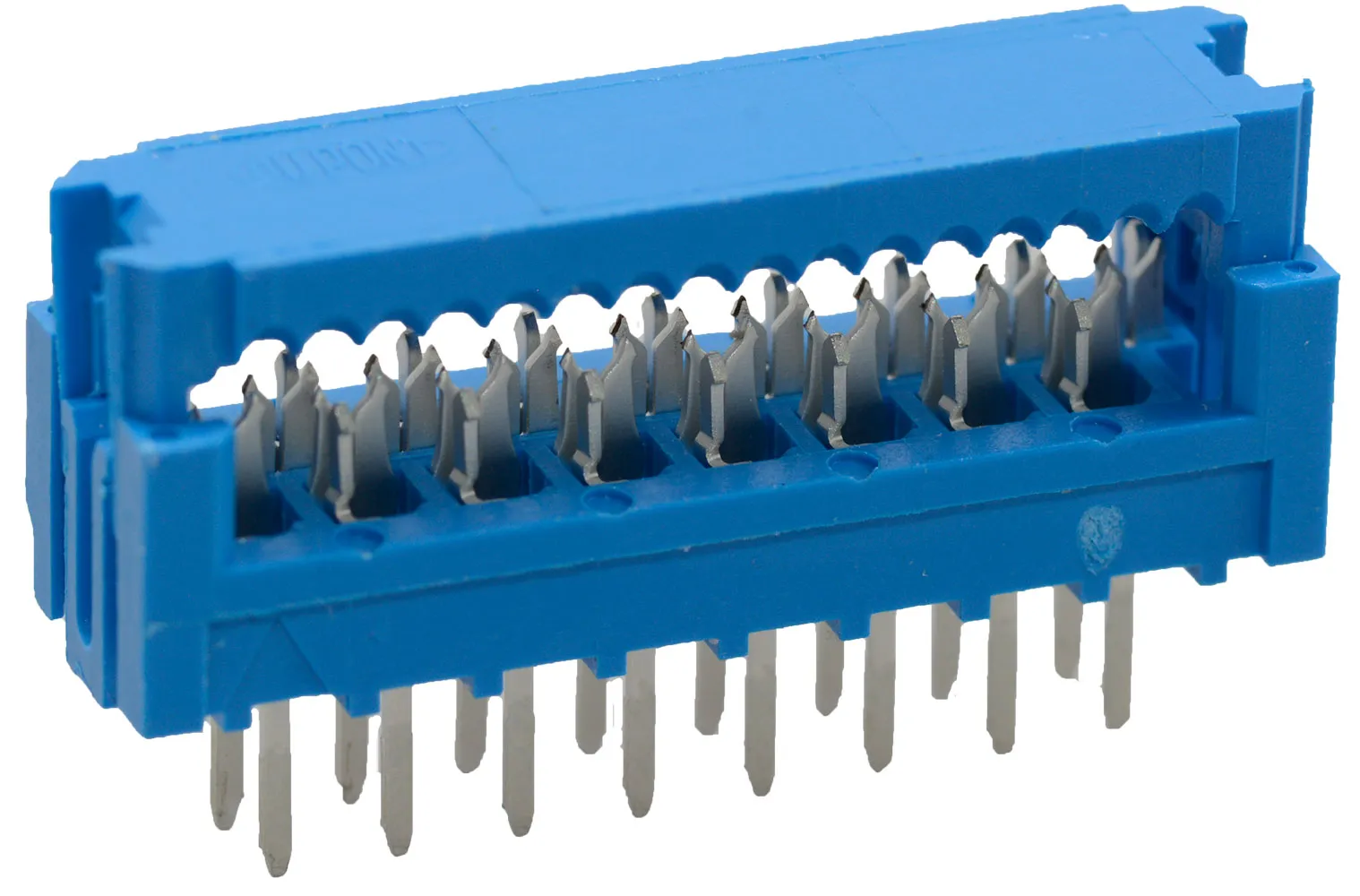

16 Position DIP Header Connector for IDC Ribbon Cable Through Hole

Specifications

  • Connector Type: Ribbon Cable, DIP Header
  • Number of Positions: 16
  • Number of Rows: 2
  • Number of Positions Loaded: All
  • Cable Pitch: 0.05" (1.27 mm)
  • Board-Side Pitch: 0.1" (2.54 mm)
  • Row Spacing: 0.1" (2.54 mm)
  • Mounting Type: Through Hole
  • Cable Termination: IDC
  • Wire Gauge: n/a
  • Features: Feed Through
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Color: Blue

Product Identification

Manufacturer Series:ValuePro

Dimensions & Appearance

Width:0.275 in.
Length:24.9 mm
Body Orientation:Right Angle

Features

Terminal Pitch:0.1 in, 2.54 mm
Number of Rows:2
Housing Color:Blue
Maximum Contact Resistance:30 mOhm
Contact Plating:Gold Over Nickel
Number of Contacts:16
Contact Material:Phosphor Bronze
Housing Material:Thermoplastic
Gender:Plug
Current Rating:1 A
Voltage Rating:250 VAC, 250 VDC
,
