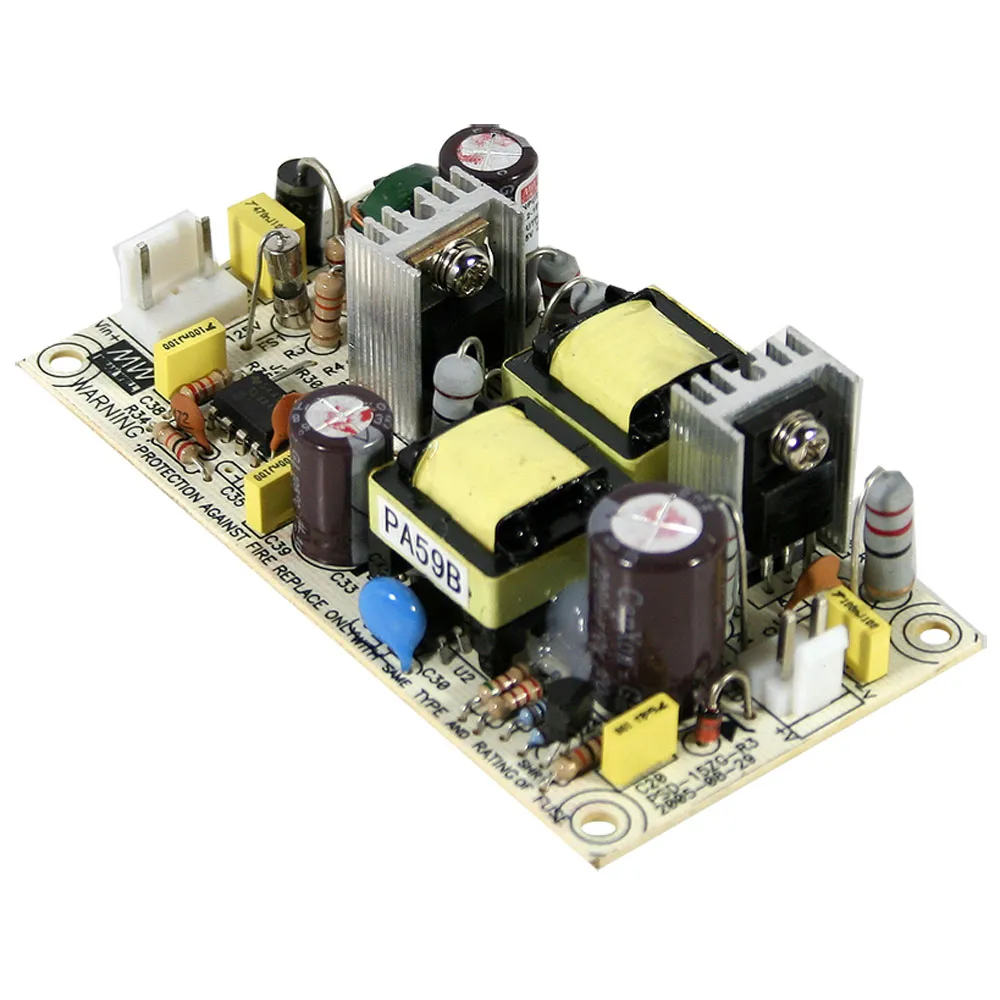

15W Single Output DC-DC Converter


Output: 5 Volts @ 3 Amps

Features:
  • Input voltage range: 9.2-18VDC
  • Cooling by free air convection
  • Protections: Short-circuit, overload, over-voltage, reverse-polarity
  • 100% full load burn-in test
  • Efficiency: 74%
  • Compact size: 3.7"L x 1.9"W x 0.98"H
  • Weight: 2.9 oz. (81 grams)
  • 1-year warranty

    • Product Identification

    Type:Step Down
    Product Type:DC-DC Single Output Switching Power Supply SMPS
    Manufacturer Series:PSD-15

    Compliance

    Agency Approvals: EAC, EN, CE, CE, EN, EAC

    Dimensions & Appearance

    Color:a, n, N/A
    Height:1 in.
    Width:1.9 in.
    Length:3.7 in.
    Mounting:Chassis

    Operating conditions

    Minimum Operating Temperature:-10°C
    Maximum Operating Temperature:60°C

    Input

    Input Voltage Range:9.2 VDC to 18 VDC
    Input Voltage:12 VDC
    Maximum Input Current:1.9 A

    Output

    Number of Outputs:1
    Output Connector Type:JST B2P-VH or equiv.
    Output Voltage:5 VDC
    Output Current:3 A

    Features

    Pins:5
    Efficiency:74%
    Power Rating:15 W
    ,
