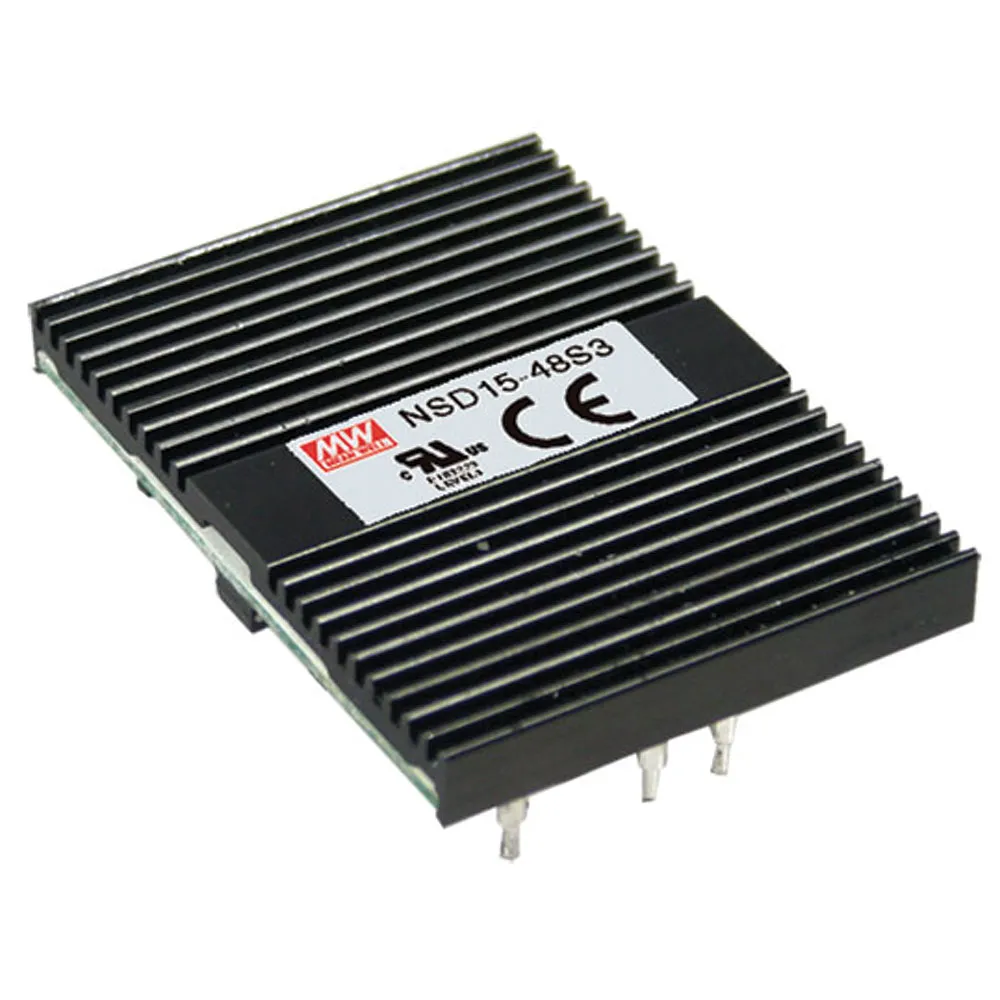

15W Regulated Single Output DC-DC Converter


Output: 3.3 Volts @ 3.75 Amps


Features:

  • Input voltage range: 18-72VDC
  • Rated DC input: 48V
  • Efficiency: 77%
  • Wide 4:1 DC input range
  • Protections: Short circuit / Overload / Over voltage
  • 1500VDC I/O isolation
  • Built-in EMI filter
  • Cooling by free air convection
  • Output voltage trimming function
  • Built-in remote ON-OFF control
  • 100% full load burn-in test
  • Size: 1.5"L x 2.0"W x 0.39"H
  • Weight: 0.066 lbs.

    • Product Identification

    Product Type:DC-DC Regulated Single Output Power Supply SMPS
    Manufacturer Series:NSD15

    Compliance

    Agency Approvals: CE, CUL, EAC, EN, UL, UL, CUL, CE, EN, EAC

    Dimensions & Appearance

    Color:Black
    Height:0.387 in.
    Length:1.5 in.
    Width:2 in.
    Mounting:Through Hole

    Operating conditions

    Minimum Operating Temperature:-25°C
    Maximum Operating Temperature:70°C

    Input

    Input Voltage Range:18 VDC to 72 VDC
    Input Voltage:48 VDC
    Maximum Input Current:0.4 A

    Output

    Number of Outputs:1
    Output Voltage:3.3 VDC
    Output Connector Type:PC Pins
    Output Current:3.75 A

    Features

    Pins:6
    Efficiency:77%
    Power Rating:12.37 W
    ,
