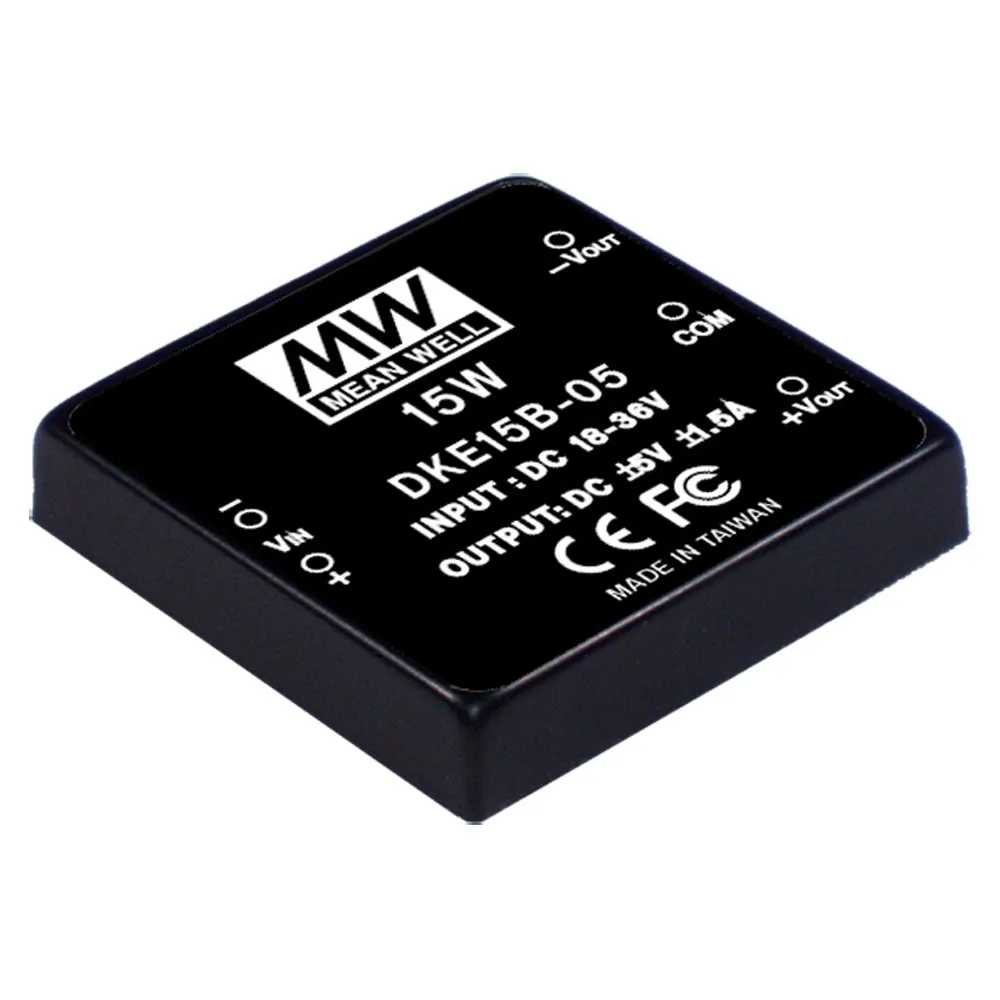

15W Regulated Dual Output DC-DC Converter


Output: ±5 Volts @ ±1.5 Amps

Features:
  • Input voltage range: 18-36VDC
  • Built-in EMI filter
  • Protection: Short-circuit, overload
  • Cooling by free air convection
  • 100% full load burn-in test
  • 1000VDC I/O isolation
  • Six-sided shielded metal case
  • Efficiency: 83%
  • Compact size: 2.0"L x 2.0"W x 0.43"H
  • Weight: 2.3 oz. (65 grams)
  • 2-year warranty

    • Product Identification

    Type:Step Down
    Product Type:DC-DC Regulated Dual Output SMPS
    Manufacturer Series:DKE15

    Compliance

    Agency Approvals: EAC, EN, FCC, UKCA, CE, CE, FCC, EN, EAC, UKCA

    Dimensions & Appearance

    Color:Black
    Height:0.40 in.
    Width:1 in.
    Length:2 in.

    Operating conditions

    Minimum Operating Temperature:-25°C
    Maximum Operating Temperature:71°C

    Input

    Input Voltage:24 VDC
    Input Voltage Range:18 VDC to 36 VDC

    Output

    Number of Outputs:2
    Additional Output Voltages (VDC):-5 VDC
    Output Voltage:5 VDC
    Output Current:1.50 A

    Features

    Pins:5
    Power Rating:15 W
    ,
