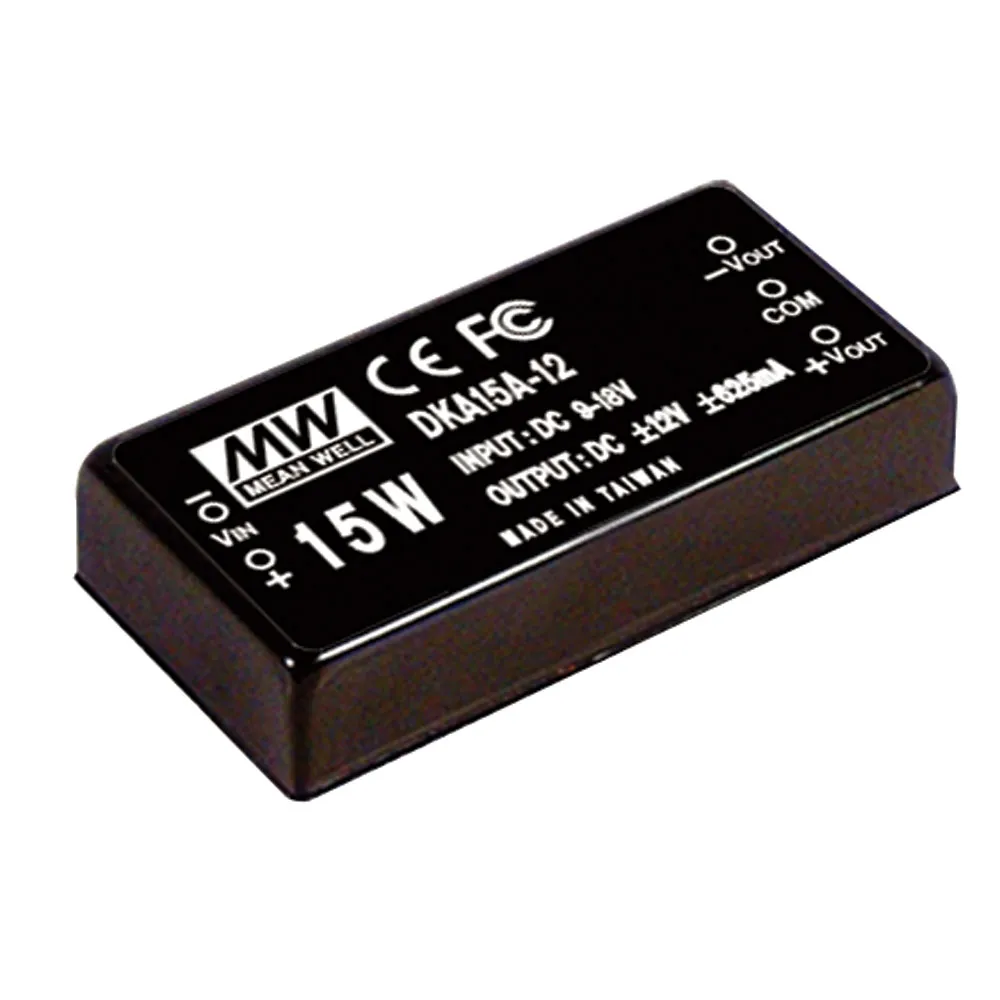

15W Regulated Dual Output DC-DC Converter


Output: ±12 Volts @ ±0.625 Amps

Features:
  • Input voltage range: 9-18VDC
  • Built-in EMI filter
  • Cooling by free air convection
  • 100% burn-in test
  • 1000VDC I/O isolation
  • Six-sided shielded metal case
  • Protections: Short-circuit, overload
  • Efficiency: 83%
  • Compact size: 2.0"L x 1.0"W x 0.44"H
  • Weight: 1.1 oz. (32 grams)
  • 2-year warranty

    • Product Identification

    Type:Non-Inverting, Step Up, Step Down
    Product Type:DC-DC Dual Output Converter SMPS
    Manufacturer Series:DKA15

    Compliance

    Agency Approvals: EAC, EN, FCC, UKCA, CE, CE, FCC, EN, EAC, UKCA

    Dimensions & Appearance

    Color:Black
    Height:0.40 in.
    Width:1 in.
    Length:2 in.

    Operating conditions

    Minimum Operating Temperature:-25°C
    Maximum Operating Temperature:71°C

    Input

    Input Voltage Range:9 VDC to 18 VDC
    Input Voltage:12 VDC
    Maximum Input Current:1.6 A

    Output

    Number of Outputs:2
    Additional Output Voltages (VDC):-12 VDC
    Output Voltage:12 VDC
    Output Connector Type:DIP
    Output Current:0.625 A

    Features

    Pins:5
    Power Rating:15 W
    ,
