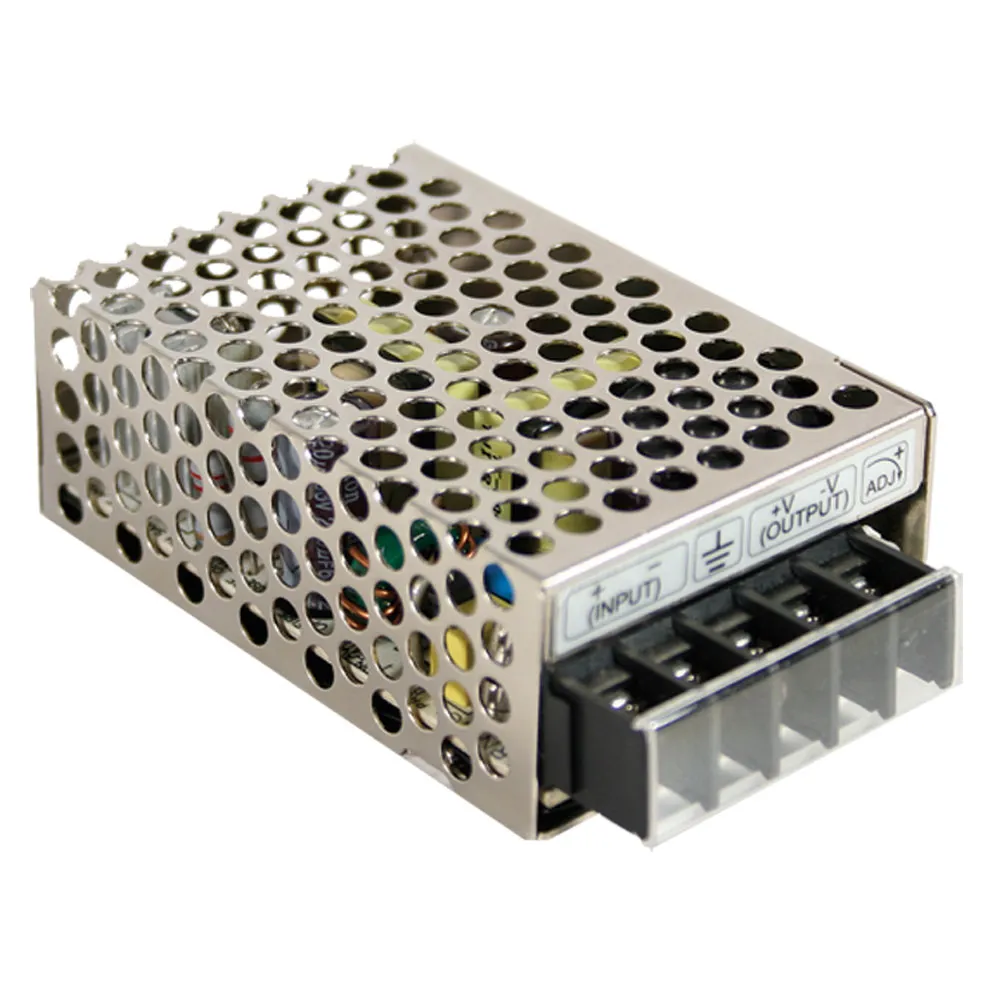

15W Enclosed DC/DC Converter 24V 625mA Output 36-72 VDCin

24 Volts DC @ 0.625 Amps

Features:

  • Wide 2:1 Input Voltage Range: 36V to 72V
  • Built-in EMI filter, low ripple noise
  • 100% Full load burn-in test
  • Low cost
  • High reliability (>653,500 hrs MTBF)
  • Protections: Short-circuit, Overload, Overvoltage
  • Number of terminal pins: 5
  • Ripple & Noise: 150 mVp-p
  • Size: 3.1"L x 2.0"W x 1.1"H
  • 2-year warranty
  • Agency Approvals: CE

Product Identification

Type:Step Down
Product Type:DC to DC Power Supply SMPS
Manufacturer Series:SD-15

Compliance

Agency Approvals: EAC, EN, CE, CE, EN, EAC

Dimensions & Appearance

Height:1.1 in.
Width:2 in.
Length:3.1 in.
Mounting:Enclosed

Operating conditions

Minimum Operating Temperature:-10°C
Maximum Operating Temperature:60°C

Packaging

Package:Enclosed

Input

Input Voltage:48 VDC
Input Voltage Range:36 VDC to 72 VDC
Maximum Input Current:0.45 A

Output

Number of Outputs:1
Output Connector Type:Screw Terminal Block
Output Voltage:24 VDC
Output Current:0.625 A
Additional Output Voltages (VDC):N/A

Features

Pins:5
Switching Regulator:Yes
Efficiency:78%
Power Rating:15 W
,
