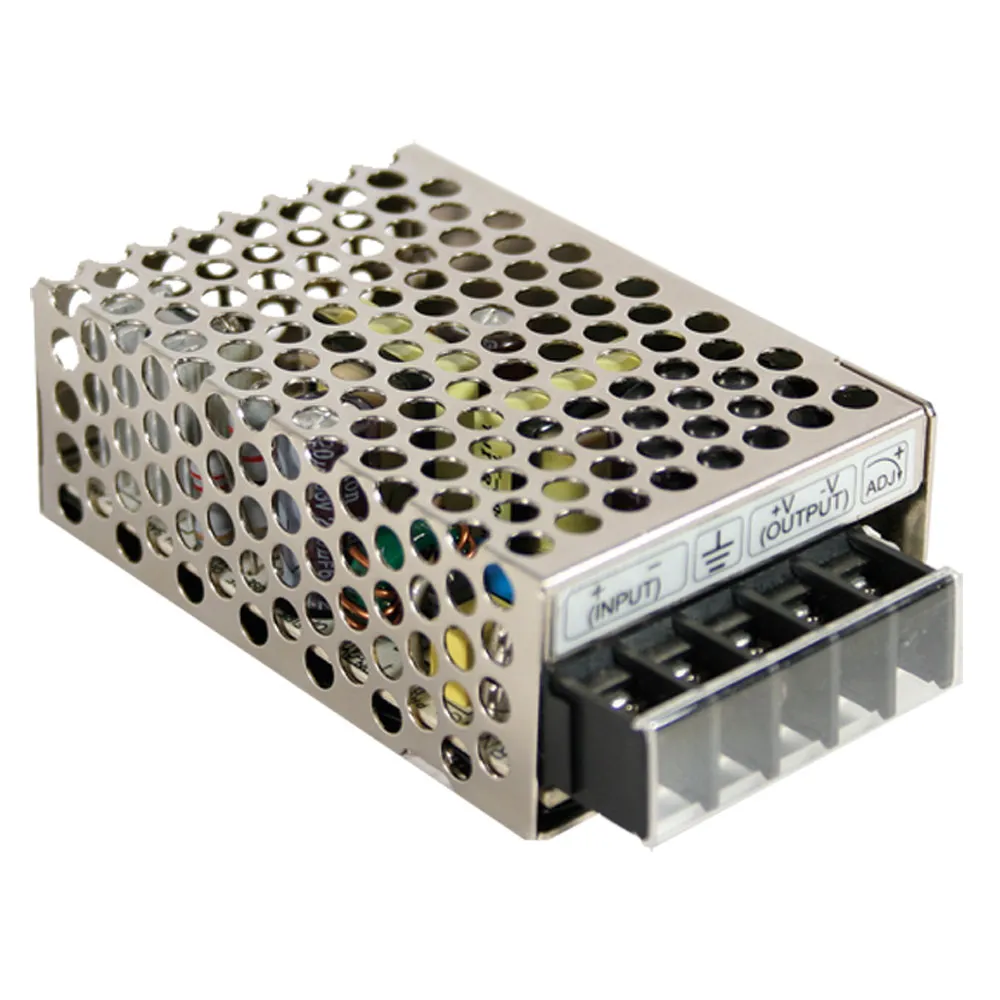

15W ENCLOSED DC/DC CONVERTER



12 Volts @ 1.25 Amps

Features

  • Input Voltage Range: 9.2V-18V
  • Built-in EMI filter, low ripple noise
  • 100% Full load burn-in test
  • Protections: Short-circuit, Overload, Overvoltage
  • Number of terminal pins: 5
  • Ripple & Noise: 120mVp-p
  • Size: 3.1"L x 2.0"W x 1.1"H
  • 2-year warranty

    • Product Identification

    Type:Non-Inverting, Step Up, Step Down
    Product Type:DC to DC Power Supply SMPS
    Manufacturer Series:SD-15

    Compliance

    Agency Approvals: EAC, EN, CE, CE, EN, EAC

    Dimensions & Appearance

    Height:1.1 in.
    Width:2 in.
    Length:3.1 in.
    Mounting:Enclosed

    Operating conditions

    Minimum Operating Temperature:-10°C
    Maximum Operating Temperature:60°C

    Packaging

    Package:Enclosed

    Input

    Input Voltage Range:9.2 VDC to 18 VDC
    Input Voltage:12 VDC
    Maximum Input Current:1.9 A

    Output

    Number of Outputs:1
    Output Voltage:12 VDC
    Output Connector Type:Screw Terminal Block
    Additional Output Voltages (VDC):N/A
    Output Current:1.25 A

    Features

    Pins:5
    Switching Regulator:Yes
    Efficiency:72%
    Power Rating:15 W
    ,
