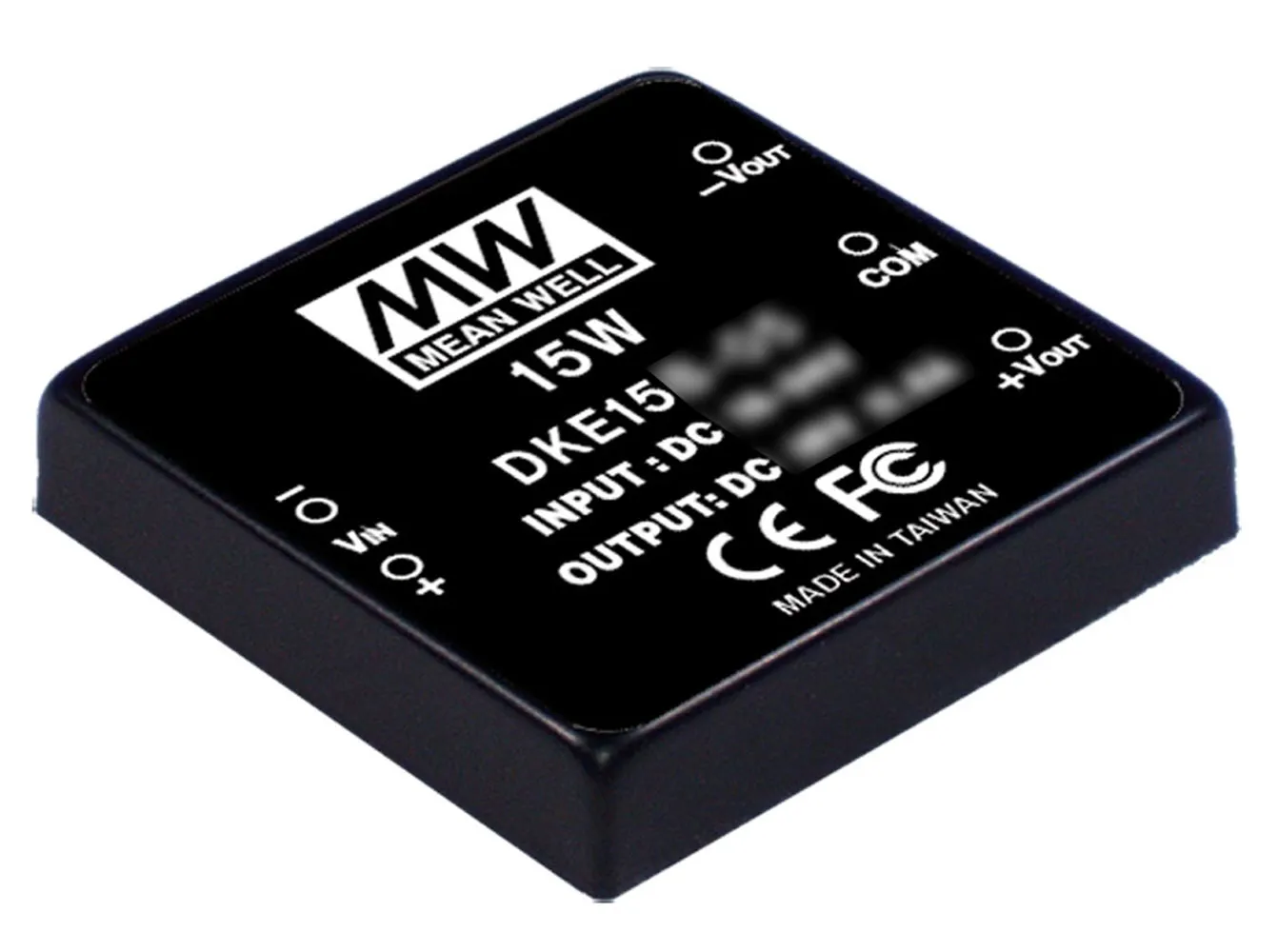

15W Encapsulated Dual Output DC-to-DC Converter

Output: ±24 Volts @ 0.313 Amps

Features:

  • Input range: 9-18VDC
  • Number of pins: 5
  • Line Regulation: ±0.3%
  • Load Regulation: ±0.5%
  • Ripple and Noise: 80mVp-p
  • Short-circuit/overload protection
  • 1000VDC I/O isolation
  • Shield metal case
  • Cooling by free air convection
  • Size: 2.0"L x 2.0"W x 0.43"H

    • Product Identification

    Type:Non-Inverting, Step Up, Step Down
    Product Type:DC-DC Regulated Dual Output SMPS
    Manufacturer Series:DKE15

    Compliance

    Agency Approvals: EAC, EN, FCC, UKCA, CE, CE, FCC, EN, EAC, UKCA

    Dimensions & Appearance

    Color:Black
    Height:0.44 in.
    Width:1 in.
    Length:2 in.

    Operating conditions

    Minimum Operating Temperature:-25°C
    Maximum Operating Temperature:71°C

    Input

    Input Voltage Range:9 VDC to 18 VDC
    Input Voltage:12 VDC

    Output

    Number of Outputs:2
    Output Current:0.313 A
    Additional Output Voltages (VDC):-24 VDC
    Output Voltage:24 VDC

    Features

    Pins:5
    Power Rating:15 W
    ,
