15W 5V 3A AC-DC High Reliability Interchangeable Medical Adaptor

5 Volts @ 3 Amps

Features

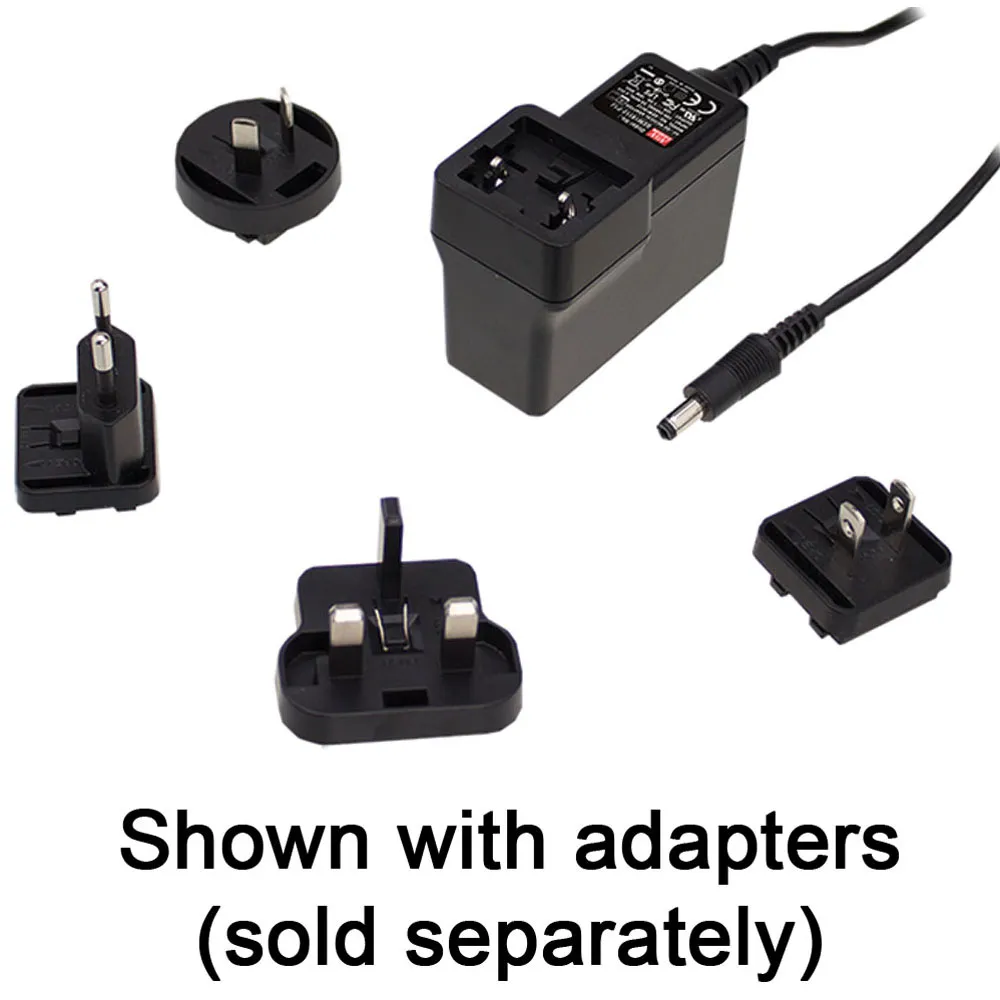

  • Uses interchangeable AC plugs (Interchangeable AC plug kit sold separately, see P/N: 2249352)
  • Medical safety approved (2 MOPP between primary to secondary)
  • Suitable for BF application with appropriate system consideration
  • Low leakage current <100 A
  • No load power consumption< 0.075W
  • Energy efficiency Level VI
  • Comply with EISA 2007/DoE and EU ErP
  • Class II power (without earth pin)
  • Protections: Short circuit / Overload / Over voltage
  • Fully enclosed plastic case
  • Optional lock type DC plug
  • 100% full load burn-in test
  • 3 year warranty

Applications

  • Blood glucose meter
  • Blood pressure meter
  • Nebulizer
  • Inhaler
  • Portable medical device
  • Sleep apnea devices

Specifications

  • Output connector: 2.1mm x 5.5mm, center positive female barrel plug
  • Input voltage: 80-264 VAC @ 47-63Hz or 113-370VDC
  • Size: 2.97"L x 1.54"W x 2.21"H
  • Case color: Black
  • Output cord length: 3.3 feet
  • Weight: 0.51 lbs.
  • Agency approvals: UL, CUL, TUV, CB, CE, FCC, ANSI

Product Identification

Product Type:Switching SMPS
Manufacturer Series:GEM18I

Compliance

Agency Approvals:UL, CUL, TUV, CB, CE, FCC, EN, EAC

Dimensions & Appearance

Color:Black
Style:Wall Mount
Width:1.54 in.
Height:2.21 in.
Length:2.97 in.

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:50°C

Input

Input Frequency:47 Hz to 63 Hz
Input Connector:AC Plug Clips sold separately
Input Voltage:80 VAC to 264 VAC
Maximum Input Current:0.45 A

Output

Number of Outputs:1
Output Cord Length:3 ft.
Output Connector Diameters:2.1mm x 5.5mm
Output Voltage:5 VDC
Output Connector Type:Cylindrical Female
Output Current:3 A

Features

Polarity:Center Positive
Product Note:Level VI
AC Power Cord:N/A
Efficiency:80%
Power Rating:15 W
,
