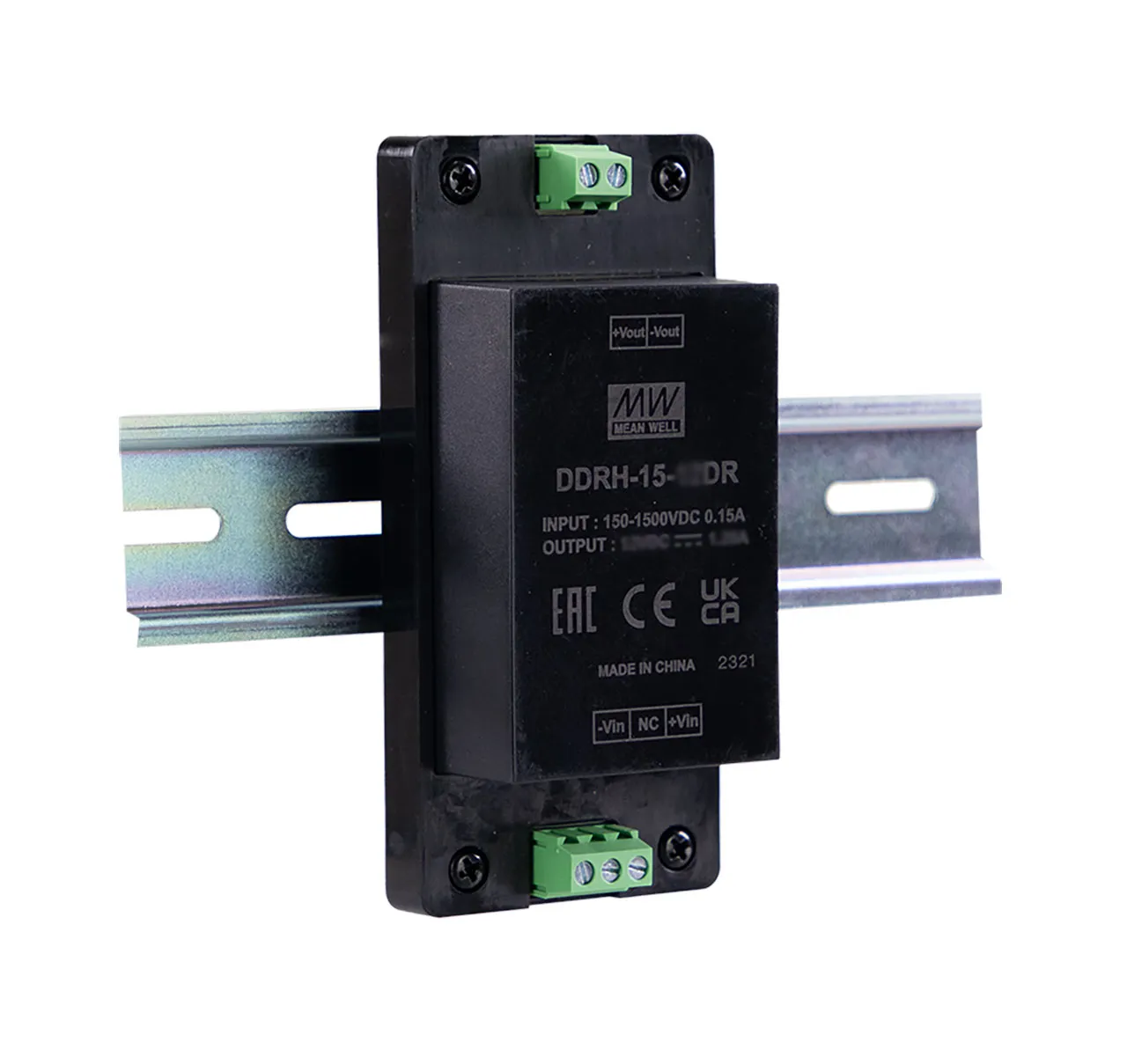

15W 24V 625mA High-Reliability DC-DC Converter Ultra-Wide Input 150-1500V DIN Rail
Features
- 150 to 1500 VDC 10:1 ultra-wide input range
- 4KVac I/O high isolation (reinforced isolation)
- Protections: Short circuit, overload, over voltage, DC input under voltage, DC input reverse polarity
- Fanless design, fully encapsulated, cooling by free air convection
- DR-Type can be installed on TS-35/7.5 or 15 DIN rail
- -40°C to +80°C ultra-wide operating temperature (> +50° derating)
- Operating altitude up to 5000 meters
- 3 year warranty
Overview
DDRH-15 series is a 150-1500Vdc ultra-high input high-reliability DC-DC converter which can supply stable working voltage for the load. Main features are it's compact size, wide operating temperature range, 4KV high isolation voltage, operation at up to 5000m altitude, low ripple & noise, complete protections, and more.
This series has three model formats, PCB mount, screw terminal, and DIN rail mount. DDRH-15 is designed to meet UL1741 (by request) and IEC62109-1 standard. It is suitable for industrial automation, surveillance, telecommunications and can be widely deployed in the applications of new energy generation such as solar power, and windmill power generation, photovoltaic power systems, high voltage inverting, DC bus centralized applications, ESS, charging pile, railway and so forth.
Applications
- Photovoltaic power generation
- Renewable Energy System
- High voltage frequency conversion
- Industrial control system
- Semiconductor fabrication equipment
- Electro-mechanical apparatus
- DC bus centralized application
- Energy Storage Systems (ESS)
- Charging pile
- Third rail
