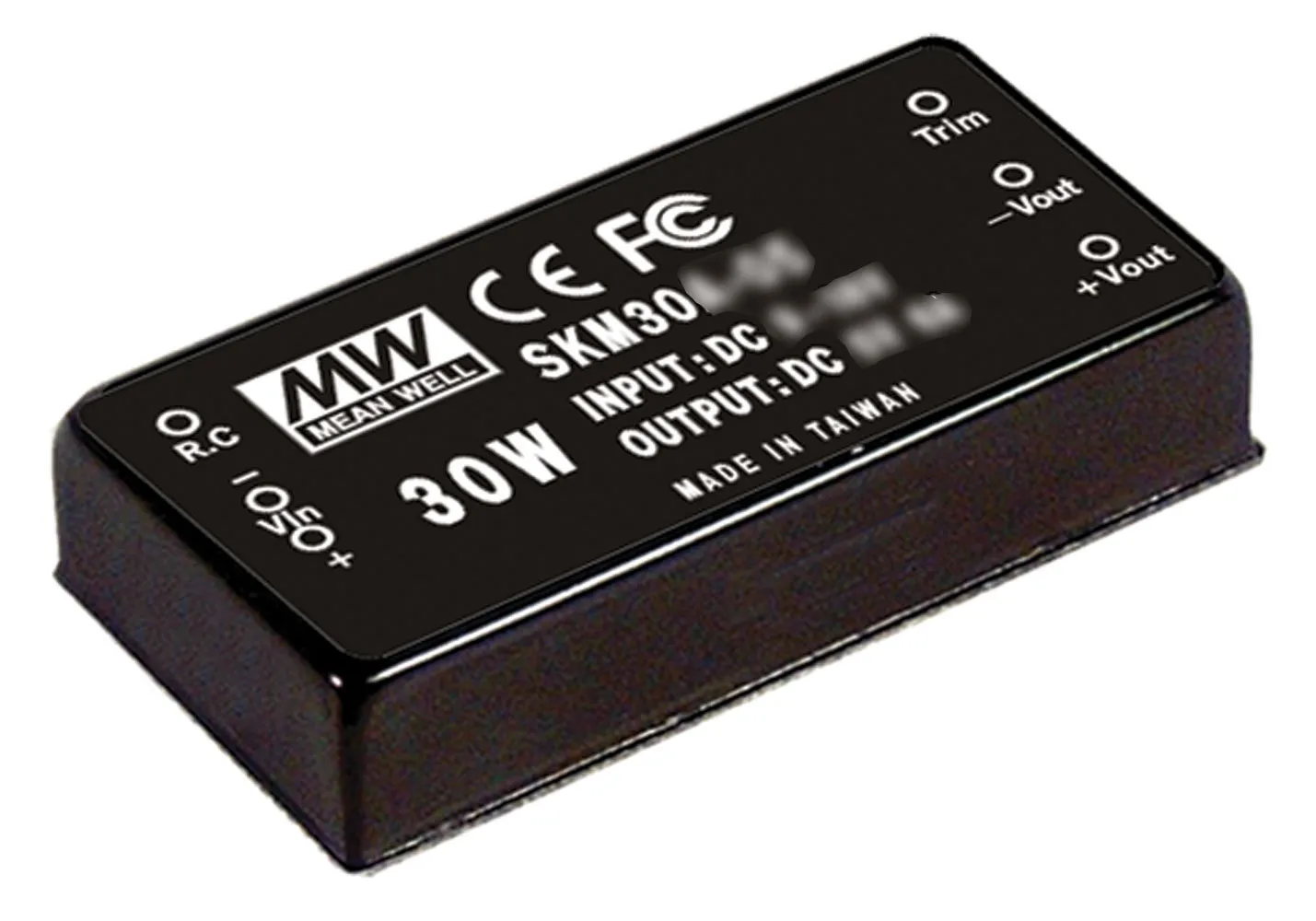

30 Watt DC-DC Regulated Single Output Converter

15 Volts @ 0.2-2 Amps

Features:

  • 2" 1" compact size
  • 2:1 wide input range
  • 90% efficiency
  • 1500VDC I/O isolation
  • Built-in remote ON/OFF control
  • Built-in trimming output
  • Comply with CE / FCC without external components
  • Protections: Short circuit / Overload / Input and Output Over voltage
  • Cooling by free air convection
  • Six-sided shield metal case
  • 100% burn-in test
  • Low cost / High reliability
  • Approvals: FCC / CE
  • 2 years warranty

Product Identification

Product Type:DC to DC Regulated Single Output Converter SMPS
Manufacturer Series:SKM30

Dimensions & Appearance

Height:0.44 in.
Width:1 in.
Length:2 in.

Packaging

Package:Enclosed Module

Input

Input Voltage Range:18 VDC to 36 VDC

Output

Number of Outputs:1
Output Connector Type:PC Pins
Output Voltage:15 VDC
Additional Output Voltages (VDC):N/A
Output Current:2 A

Features

Power Rating:30 W
,
