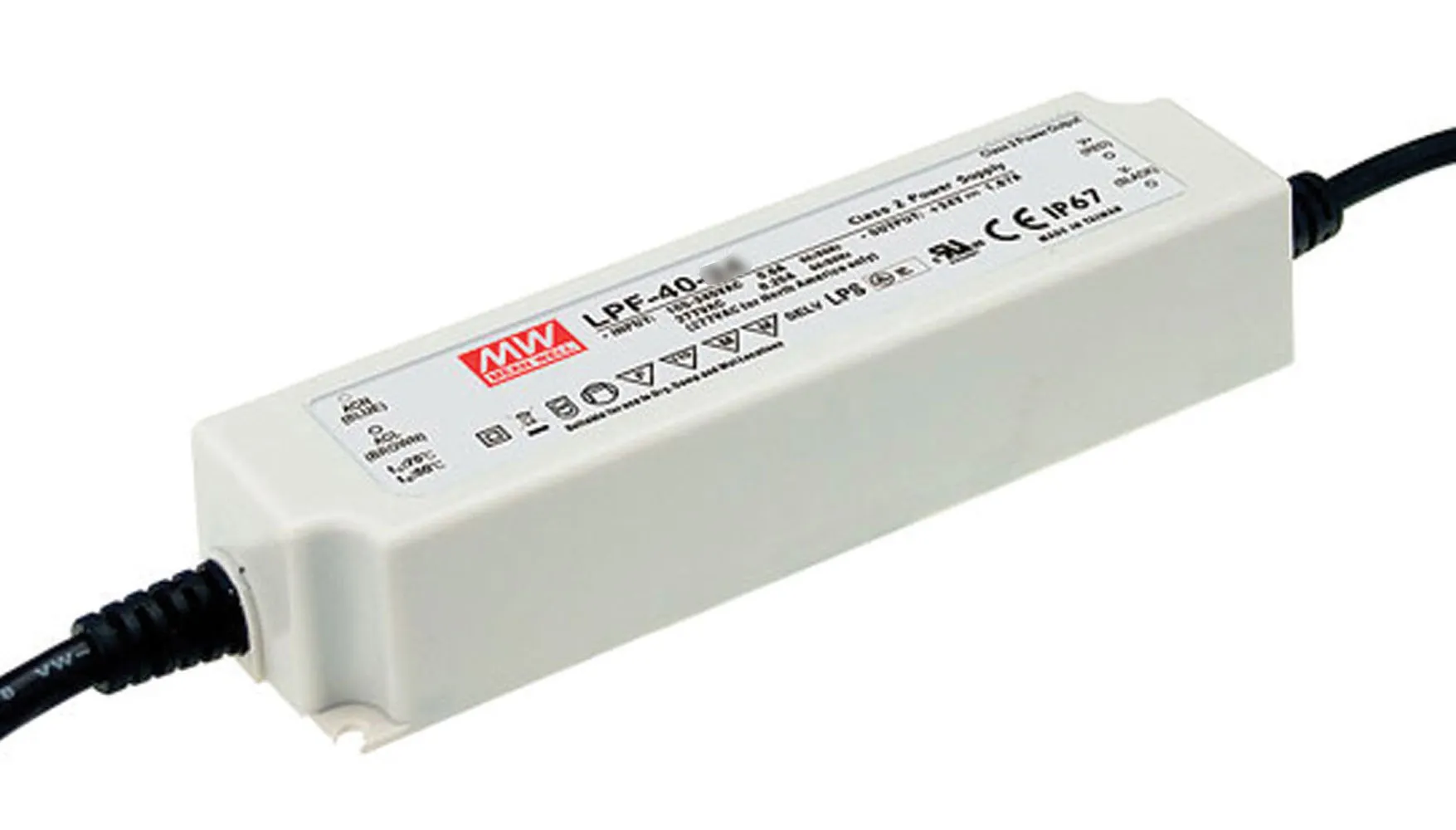

40W Single Output Switching LED Power Supply

15 Volts @ 2.67 Amps
Constant Current Region: 9 - 15 Volts

Features:
  • Universal AC input / Full range (up to 305VAC)
  • Built-in active PFC function
  • High efficiency up to 85%
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Fully isolated plastic case
  • Fully encapsulated with IP67 level
  • Class II power unit, no FG
  • Suitable for LED lighting and moving sign applications
  • Compliance to worldwide safety regulations for lighting
  • Suitable for dry / damp / wet locations
  • 3 years warranty

Product Identification

Product Type:Auto Switching SMPS
Manufacturer Series:LPF-40

Compliance

Agency Approvals: CB, CCC, CE, CUL, EAC, EN, ENEC, TUV, UL

Dimensions & Appearance

Style:Enclosed
Color:White
Height:1.25 in.
Width:1.69 in.
Length:6.39 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 305 VAC
Maximum Input Current:0.6 A

Output

Number of Outputs:1
Output Range:9 VDC to 15 VDC
Output Voltage:15 VDC
Output Connector Type:Stripped and Tinned
Output Current:2.67 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3750V
IP Rating:IP67
Efficiency:85%
Power Rating:40.08 W
,
