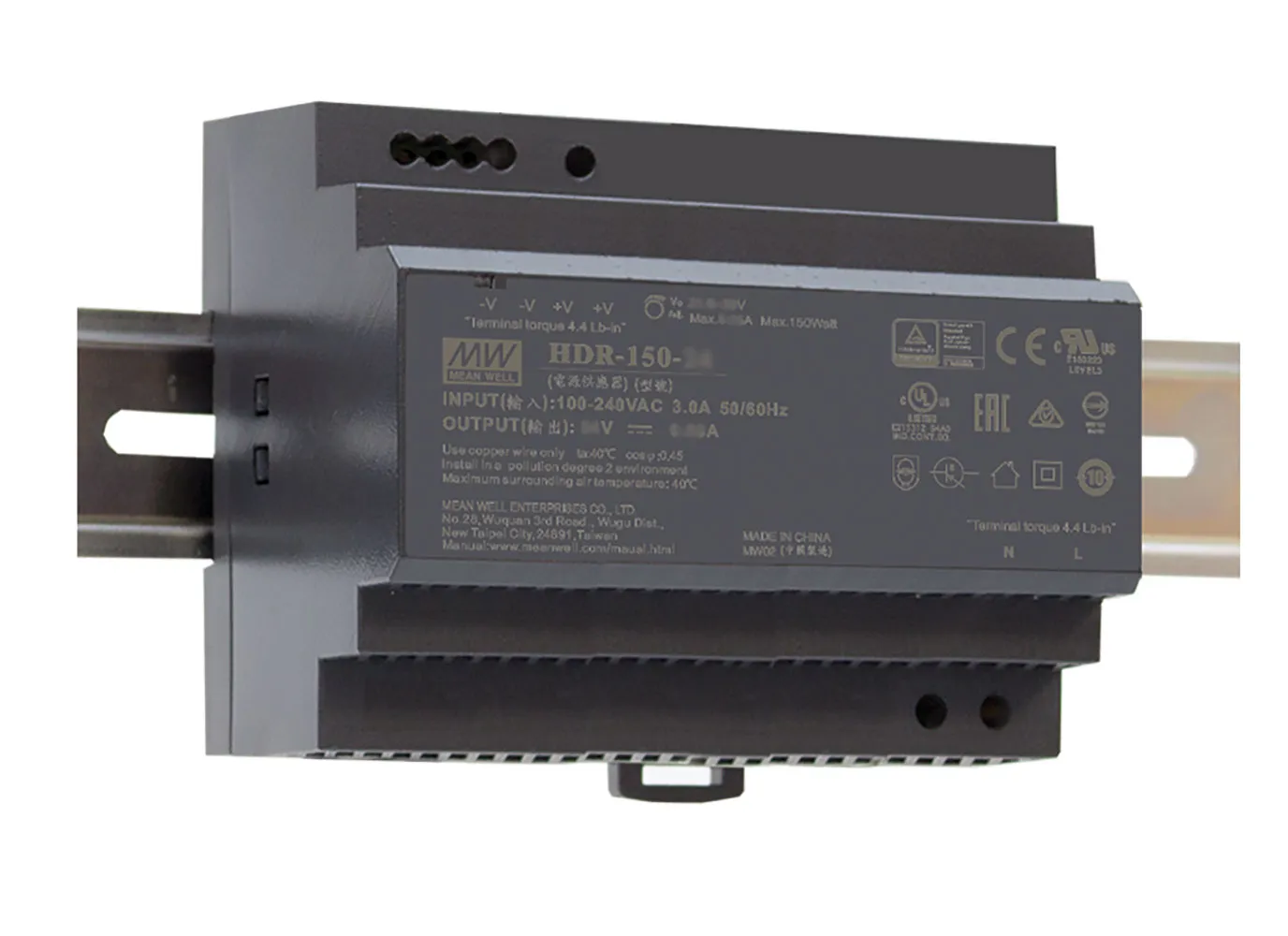

15 Volt DC 8.55 Amp 128.3 Watt Ultra Slim Step-Shape 6SU DIN Rail Power Supply

Output: 15 Volts DC @ 8.55 Amps (115 VAC), 9.5 Amps (230V VAC)

Features

  • Ultra slim design with 105mm (6SU) width
  • Universal input 85 to 264 VAC (277 VAC operational)
  • No load power consumption <0.3W
  • Efficiency: 89.5%
  • Isolation Class 2
  • DC output voltage adjustable
  • Protections: Short circuit, overload, over voltage
  • Cooling by free air convection
  • DIN rail TS-35/7.5 or 15 mountable
  • Over voltage category III
  • LED indicator for power on
  • 3 year warranty
  • Agency approvals: UL, CUL, TUV, CB, CE, EAC

Applications

  • Household control system
  • Building automation
  • Industrial control system
  • Factory automation
  • Electromechanical apparatus

Overview

Product Identification

Product Type:DIN Rail Power Supply SMPS
Manufacturer Series:HDR-150

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Color:Black
Depth:4.13 in.
Height:2.15 in.
Width:3.54 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:85 VAC to 264 VAC
Maximum Input Current:3 A

Output

Number of Outputs:1
Output Voltage:15 VDC
Output Connector Type:Screw Terminal Block
Additional Output Voltages (VDC):N/A
Output Current:8.55 A

Features

PFC Function:No
Low Power Source (LPS):No
Minimum Isolation Voltage:4000V
Efficiency:89.5%
Power Rating:128.3 W
,
