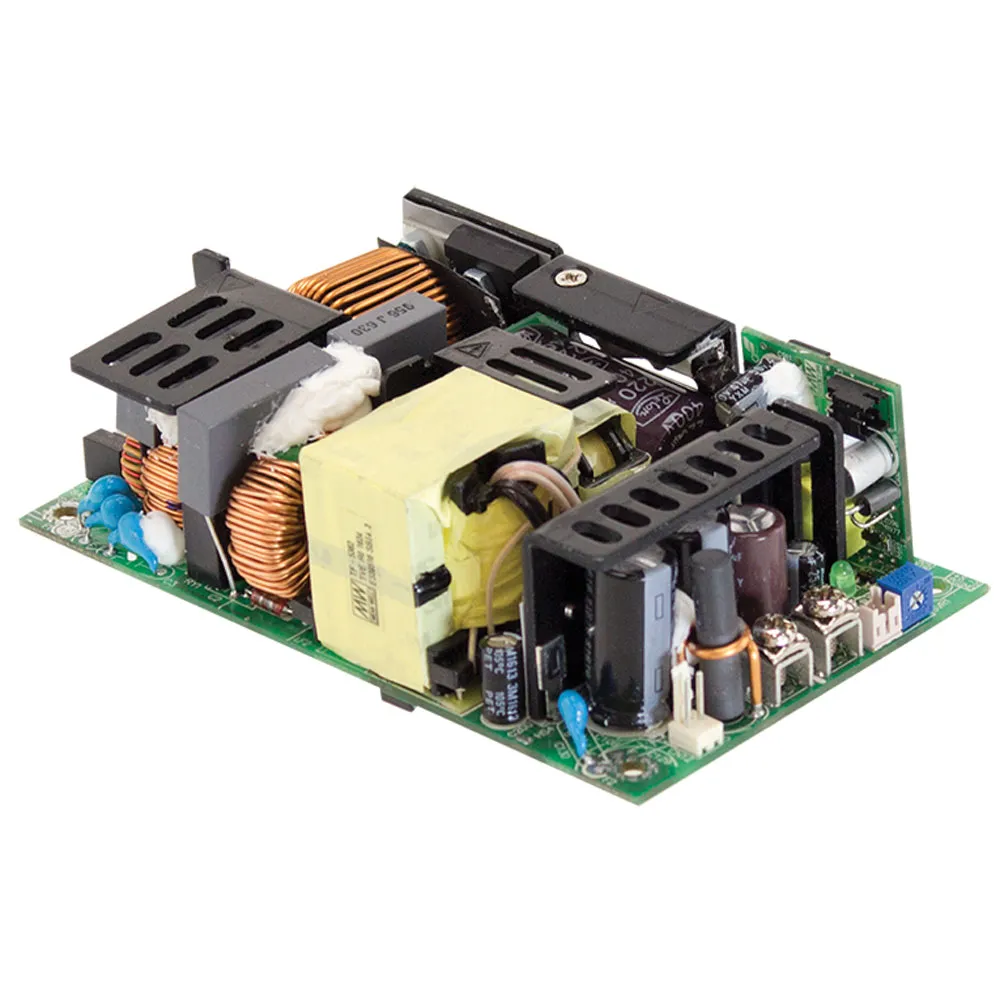

15V 16.7A 250.5W Green Industrial Open Frame Power Supply

15 Volts @ 16.7 Amps (Convection) / 26.7 Amps (25 CFM)

Features

  • Output voltage: 15 VDC
  • Output current: 16.7 A (convection); 26.7 A (25 CFM fan)
  • Rated power: 250.5 W (convection); 400.5 W (25 CFM fan)
  • Universal input voltage: 80 to 264 VAC @ 47 to 63 Hz
  • Line regulation: ±0.5%
  • Load regulation: ±1%
  • Efficiency: 92%
  • 5" x 3" miniature size
  • Built-in active PFC function
  • EMI Class B for both Class I (with FG) and Class II (without FG) configuration
  • 250W convection, 400W force air
  • No load power consumption <0.5W
  • Protections: Short circuit, overload, over voltage, over temperature
  • Built-in 12V/0.5A fan supply, Standby 5V@1A with fan, 0.6A without fan
  • Built-in remote sense function
  • 3 year warranty

Applications

  • Industrial automation machinery
  • Industrial control systems
  • Mechanical and electrical equipment
  • Electronic instruments, equipment or apparatus

Product Identification

Manufacturer Series:EPP-400

Compliance

Agency Approvals: CB, CCC, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Open Frame
Height:0.38 in.
Width:3 in.
Length:5 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:80 VAC to 264 VAC
Maximum Input Current:4.2 A

Output

Number of Outputs:1
Output Voltage:15 VDC
Output Connector Type:Screw Terminal Block
Additional Output Voltages (VDC):N/A
Output Current:16.70 A

Features

PFC Function:Yes
Switching:Auto Switching SMPS
Minimum Isolation Voltage:3000V
Efficiency:92%
Power Rating:250.5 W
,
