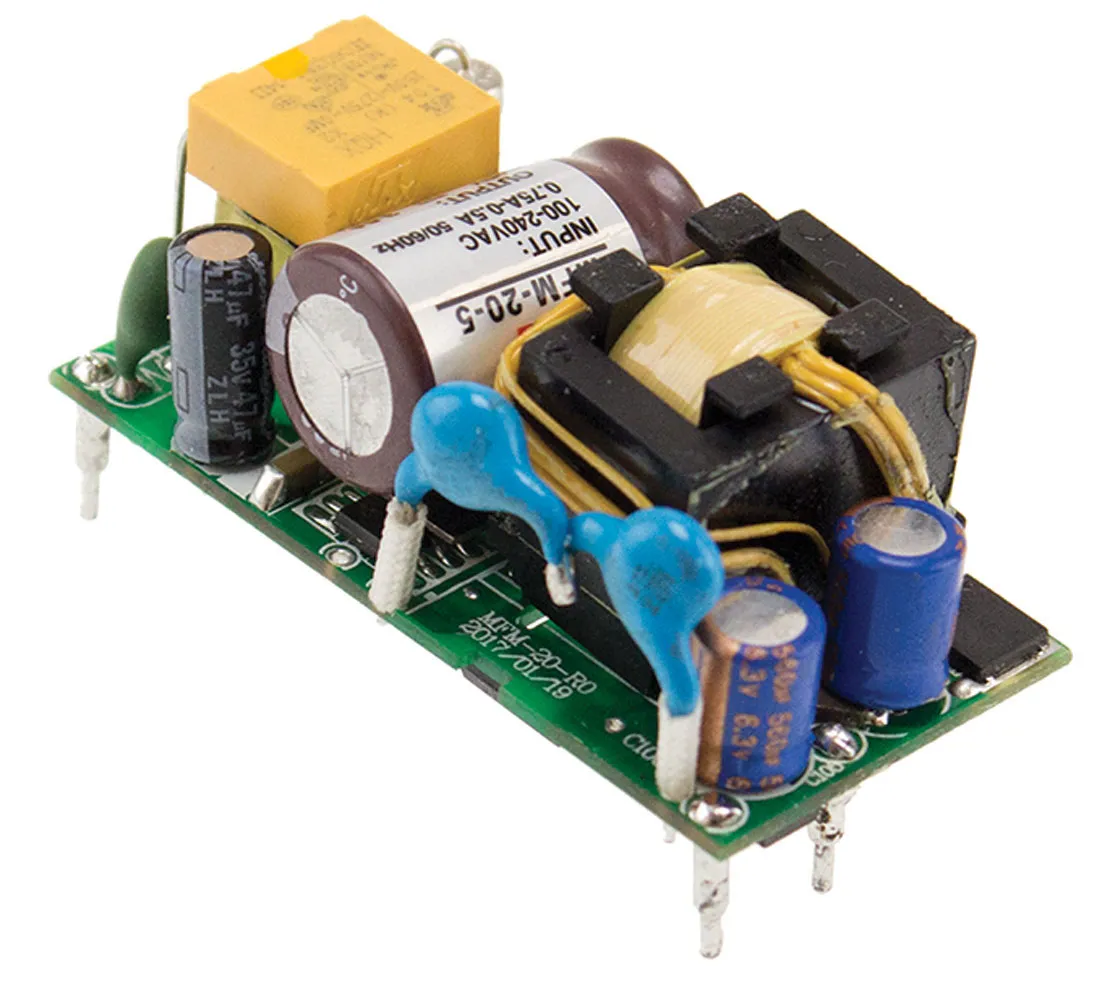

15V 1400mA 21W High Reliability Open Frame 2xMOPP Green Medical Power Supply

15 Volts DC @ 1.4 Amps

Features

  • 1.93" x 0.94" compact size
  • Medical safety approved (2x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
  • Suitable for BF applications with appropriate system considerations
  • No load power consumption <0.075W
  • Extremely low leakage current
  • Wide operating temperature range: -35 to +85°C
  • EMI Class B for class II configuration
  • Protections: Short circuit, overload, over voltage
  • No minimum load required
  • 3 year warranty

Specifications

  • Input: 80-264 VAC @ 47 -63 Hz
  • Rated power: 21 watts
  • Ripple & Noise: 180 mVp-p
  • Line regulation: ± 0.3%
  • Load regulation: ± 0.5%
  • Efficiency: 87%
  • Agency approvals: UL, CUL, TUV, CB, CE

Applications

  • Portable medical devices
  • Mobile clinical workstations
  • Medical computer monitor
  • Medical examination instruments

Overview

Product Identification

Type:Auto Switching SMPS
Product Type:AC to DC Power Supply SMPS
Manufacturer Series:MFM-20

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Medical Open Frame
Height:0.73 in.
Width:0.94 in.
Length:1.93 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:80°C

Input

Input Frequency:47 Hz to 440 Hz
Input Voltage:80 VAC to 264 VAC
Maximum Input Current:0.75 A

Output

Number of Outputs:1
Output Connector Diameters:N/A
Output Connector Type:PC Pins
Output Voltage:15 VDC
Additional Output Voltages (VDC):N/A
Output Current:1.40 A

Features

Minimum Isolation Voltage:4000V
Efficiency:84%
Power Rating:21 W
,
