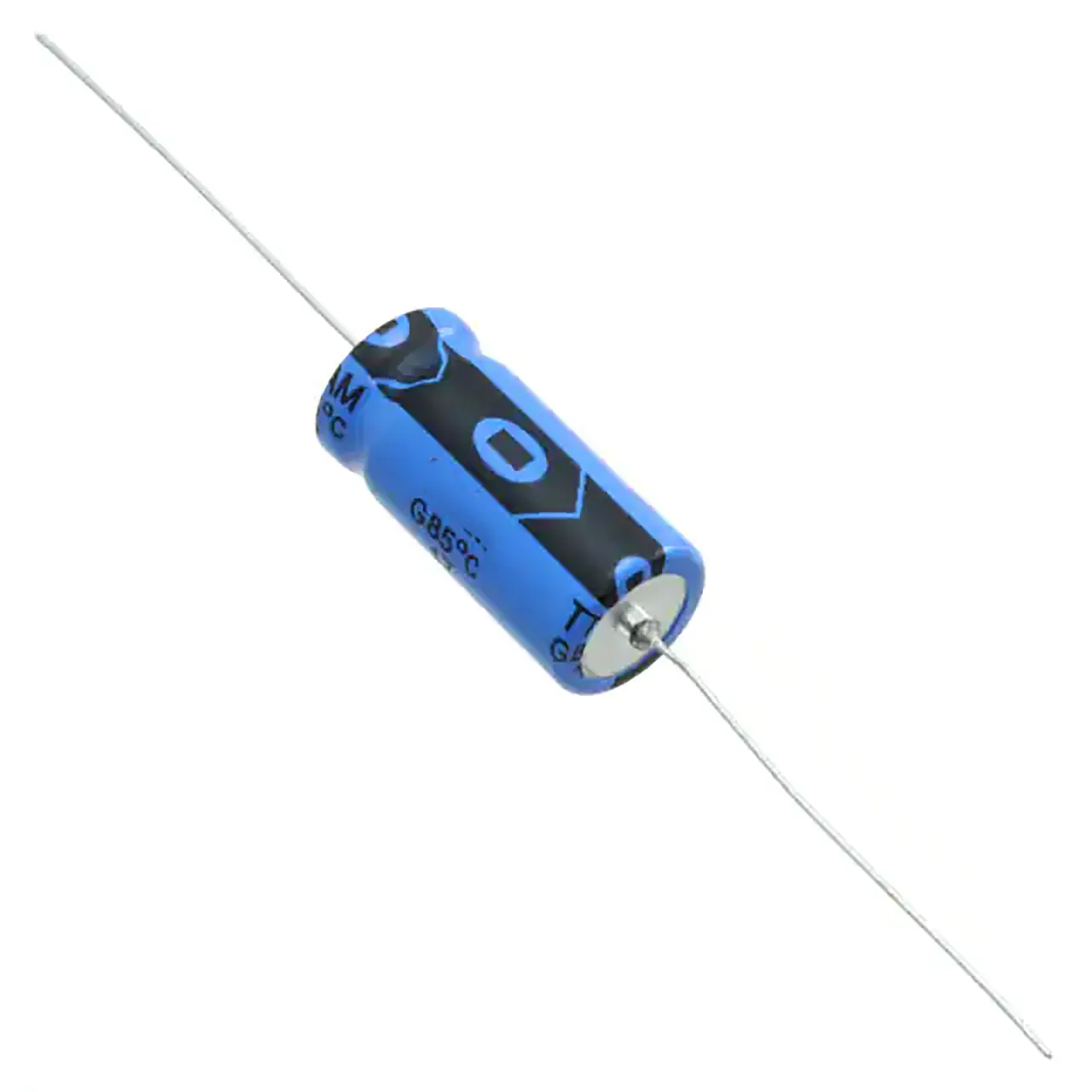

15µF 50V Axial Capacitor ±20%

Features

  • Capacitance: 15 µF
  • Tolerance: ±20%
  • Voltage – Rated: 50 V
  • ESR (Equivalent Series Resistance): 13.2629Ohm at 120Hz
  • Lifetime at Temp: 2000 Hrs at 85°C
  • Operating Temperature: -40°C ~ 85°C
  • Polarization: Polar
  • Applications: General Purpose
  • Ripple Current at Low Frequency: 70 mA at 120 Hz
  • Ripple Current at High Frequency: 107.1 mA at 50 kHz
  • Size / Dimension: 0.197" Dia x 0.512" L (5.00mm x 13.00mm)
  • Mounting Type: Through Hole

Overview

This aluminum axial capacitor has a capacitance of 15µF and a voltage rating of 50.

Product Identification

Type:Electrolytic

Dimensions & Appearance

Length:13 mm
Mounting:Through Hole
Body Diameter:6.3 mm

Operating conditions

Maximum Operating Temperature:105°C

Features

Construction:Axial
Tolerance:20%
Capacitance (uF):15
Capacitance:15 uF
Voltage Rating:50 VDC
,
