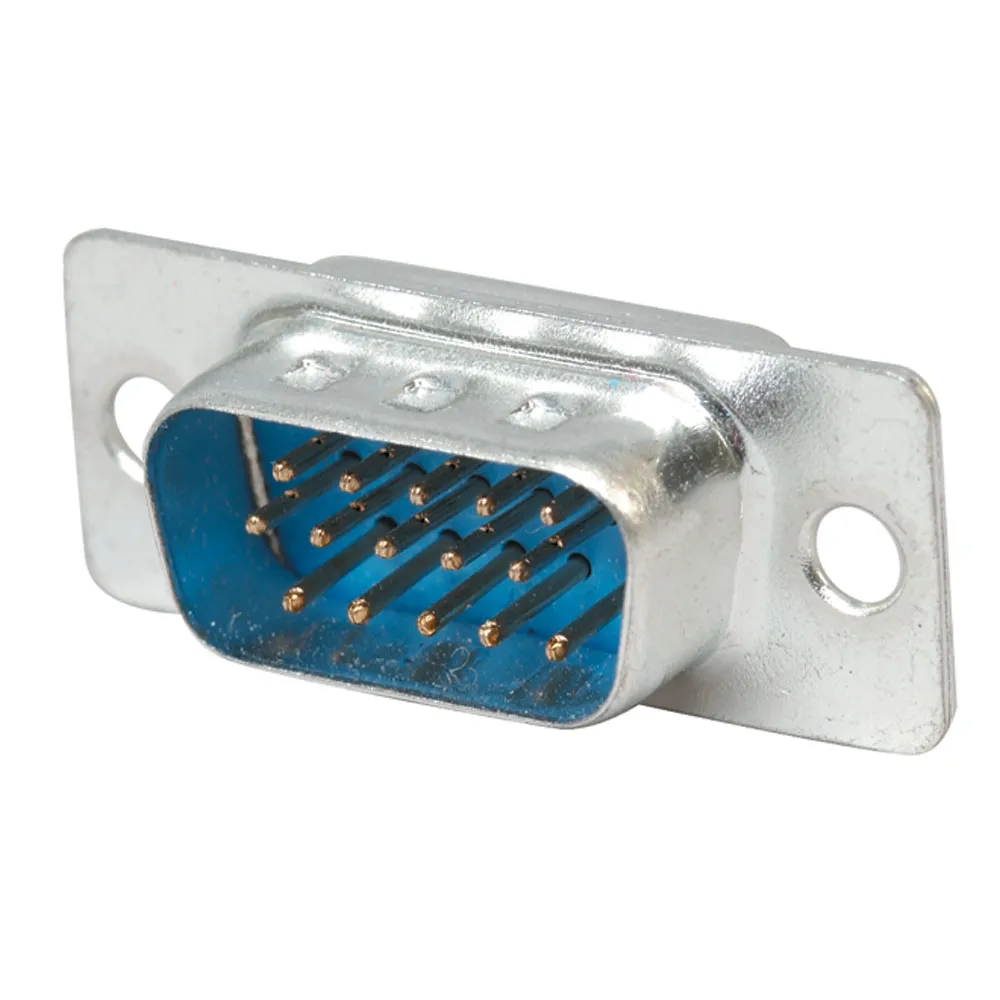

15-Pin Male High Density D-Sub Connector

  • For 22 AWG wire
  • Solderable cup terminals
  • Three row
  • 2.77 mm pitch in a row
  • Current rating: 5A
  • Voltage rating: 250 VAC/rms 60Hz

    • Product Identification

    Manufacturer Series:1002
    Product Type:Solderable Cup

    Dimensions & Appearance

    Body Orientation:Straight
    Mounting:Unthreaded
    Height:12.55 mm
    Length:30.81 mm
    Body Plating:Tin Over Nickel

    Features

    Number of Rows:3
    Contact Material:Brass
    Shell Material:Metal
    Contact Plating:Gold
    Number of Contacts:15
    Gender:Male
    Housing Material:Steel
    Pitch:2.29 mm
    Termination:Cable Mount (High Density)
    Voltage Rating:250 VAC
    Current Rating:3 A
    ,
