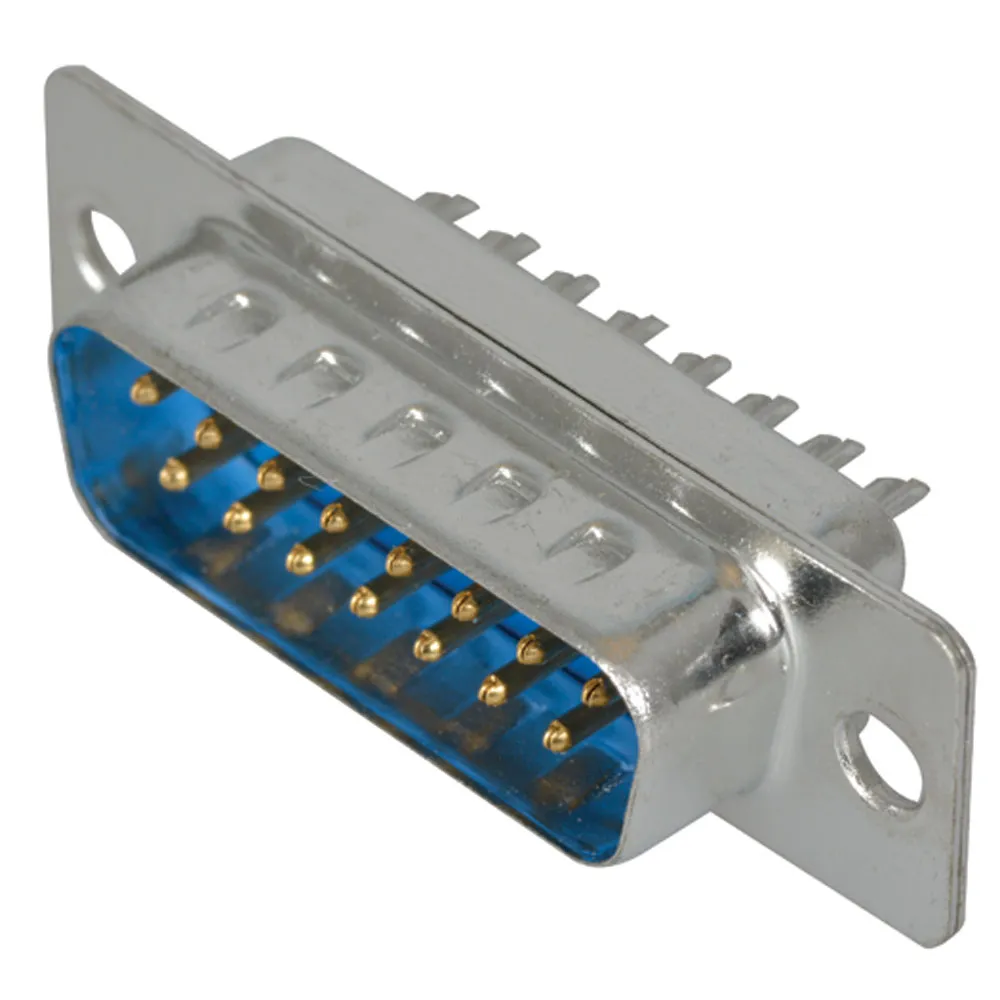

15 Pin Male Connector

Find solder style connectors used for a variety of computer hookups with Jameco's selection of 15 pin male connectors. These electrical connectors feature solderable cup terminals with dual rows. We also carry the 15-in male high density d-sub connectors with three rows & solderable cup terminals, and more. >
  • For 22 AWG wire
  • Solderable cup terminals
  • Dual row
  • 2.77 mm pitch in a row

    • Product Identification

    Product Type:Solderable Cup
    Manufacturer Series:1001

    Dimensions & Appearance

    Body Orientation:Straight
    Mounting:Unthreaded
    Height:12.55 mm
    Length:39.14 mm
    Body Plating:Tin Over Nickel

    Features

    Number of Rows:2
    Contact Material:Brass
    Shell Material:Metal
    Contact Plating:Gold
    Number of Contacts:15
    Gender:Male
    Housing Material:Steel
    Pitch:2.77 mm
    Termination:Cable Mount
    Voltage Rating:250 VAC
    Current Rating:5 A
    ,
