1.5GHz Advanced-Series Spectrum Analyzer

Features

• Freq: 9kHz-1.5GHz, RBW: 1Hz-1MHz, DANL: -161dBm/Hz, Phase Noise: -98dBc/Hz, Full Amplitude Accuracy: <0.7dB, Display: 10.1in touch screen, USB/LAN, SCPI
• Display Size: 10.1 in.
• Warranty: 3 years
• Interface: USB, LAN, Ext Ref In, Trg In, HDMI,
• Prop65: No
• Reach: No

Overview

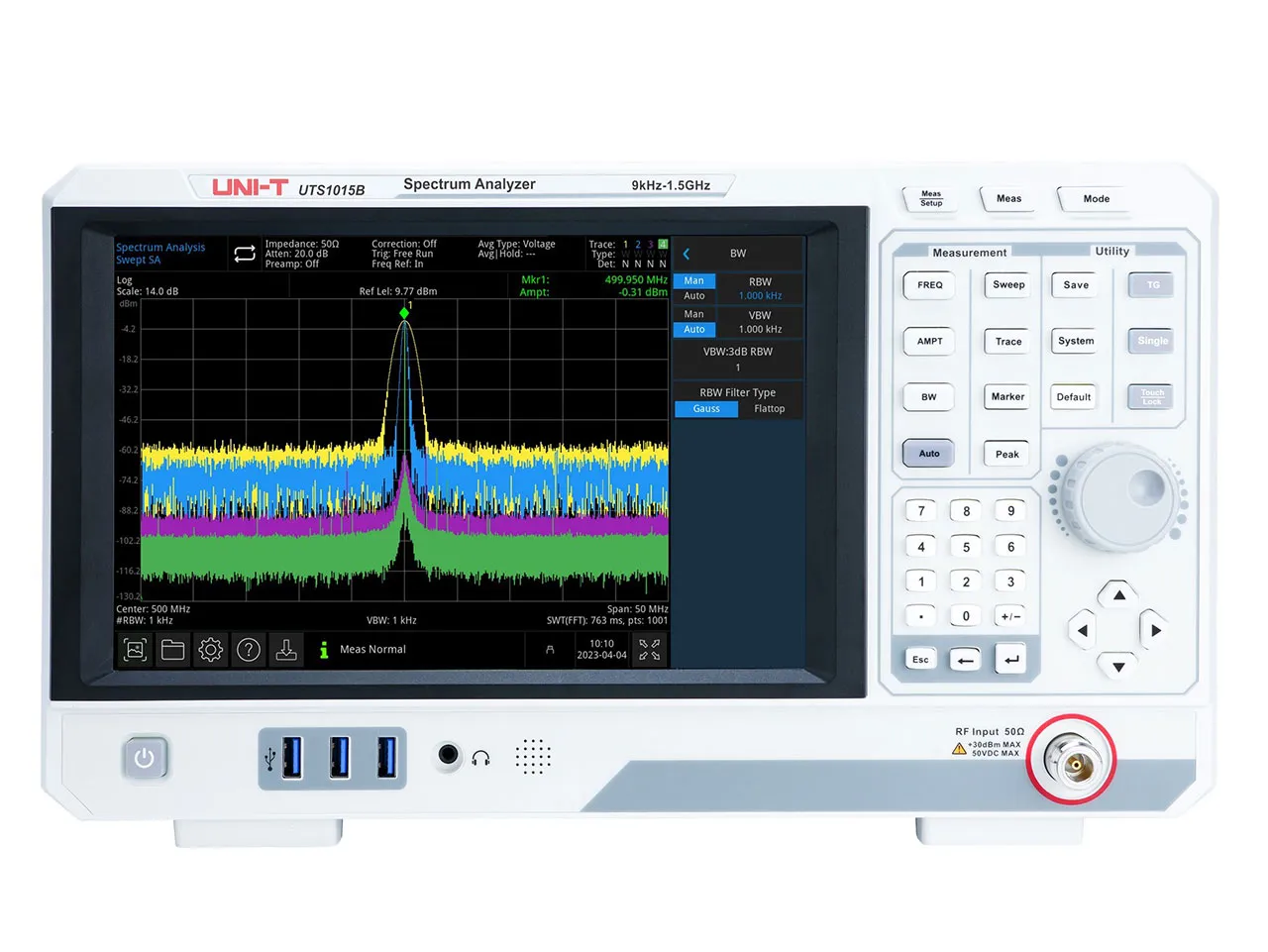

The UNI-Trend UTS1015B Advanced-Series Spectrum Analyzer is an affordable 1.5GHz signal analyzer for a variety applications.

Technical Specifications

• Accessories Universal Accessories: Power cord, USB2.0 printing cable
• Packing List: English download guide, multi-language safety manual, calibration report (COC)
• Software Downloads
• T Screen: Yes
• Frequency Range: 9kHz-1.5GHz
• RBW: 1Hz-1MHz
• DANL: -161dBm/Hz
• Tracking Generator: Not Available
• Sweep Points: 10,001
• Traces: 4
• Phase Noise: -98 dBc/Hz @10kHz
