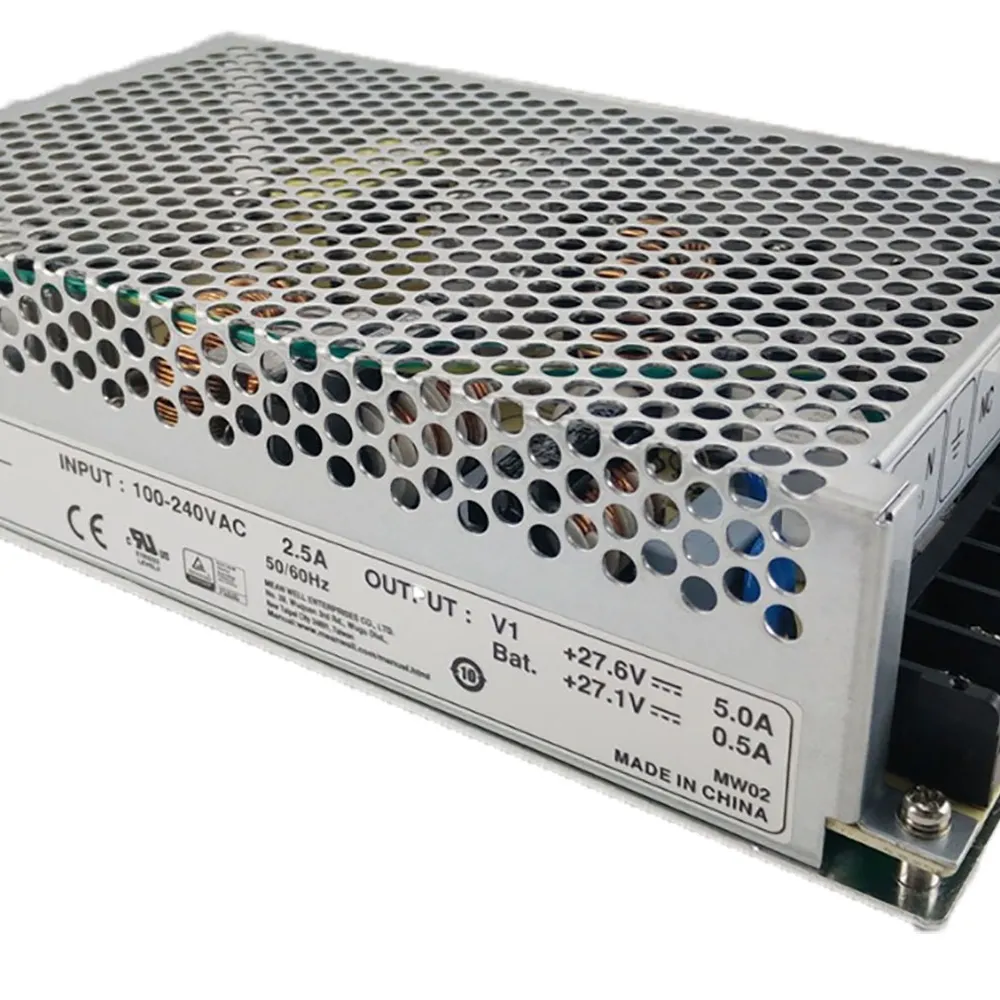

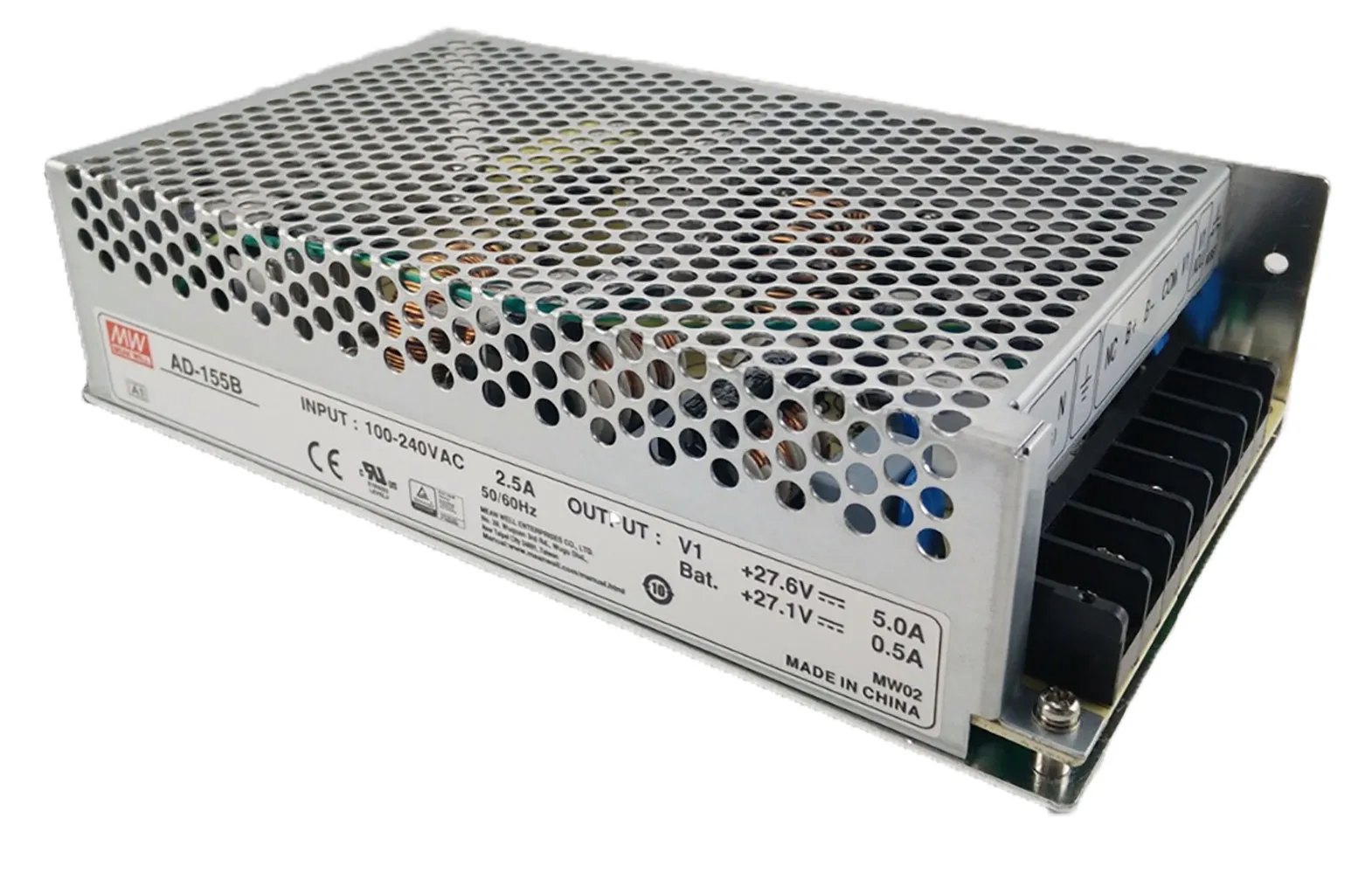

155 Watt Single Output with Battery Charger (UPS Function)


CH1: 27.6 Volts @ 5 Amps
CH2: 27.1 Volts @ 0.5 Amps

Find out more about MEAN WELL Security Power Solutions.

Features:

  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage
  • Battery low and battery polarity protection
  • Cooling by free air convection
  • 100% full load burn-in test
  • Fixed switching frequency at PFC 67 KHz, PWM 134 KHz
  • 2 year warranty

Product Identification

Type:Auto Switching SMPS
Product Type:AC to DC Power Supply
Manufacturer Series:AD-155

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Multiple Output
Color:Silver
Height:2 in.
Width:4.3 in.
Length:7.8 in.

Operating conditions

Minimum Operating Temperature:-10°C
Maximum Operating Temperature:60°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:88 VAC to 264 VAC
Maximum Input Current:2.5 A

Output

Number of Outputs:2
Output Current (Channel 2):0.5 A
Output Voltage (Channel 2):27.1 VDC
Output Voltage (Channel 1):27.6 VDC
Output Connector Type:Screw Terminal Block
Output Voltage:27.6 VDC
Additional Output Voltages (VDC):27.1
Output Current (Channel 1):5 A
Output Current:5 A

Features

Minimum Isolation Voltage:3000V
Efficiency:84%
Power Rating:151.55 W
,
