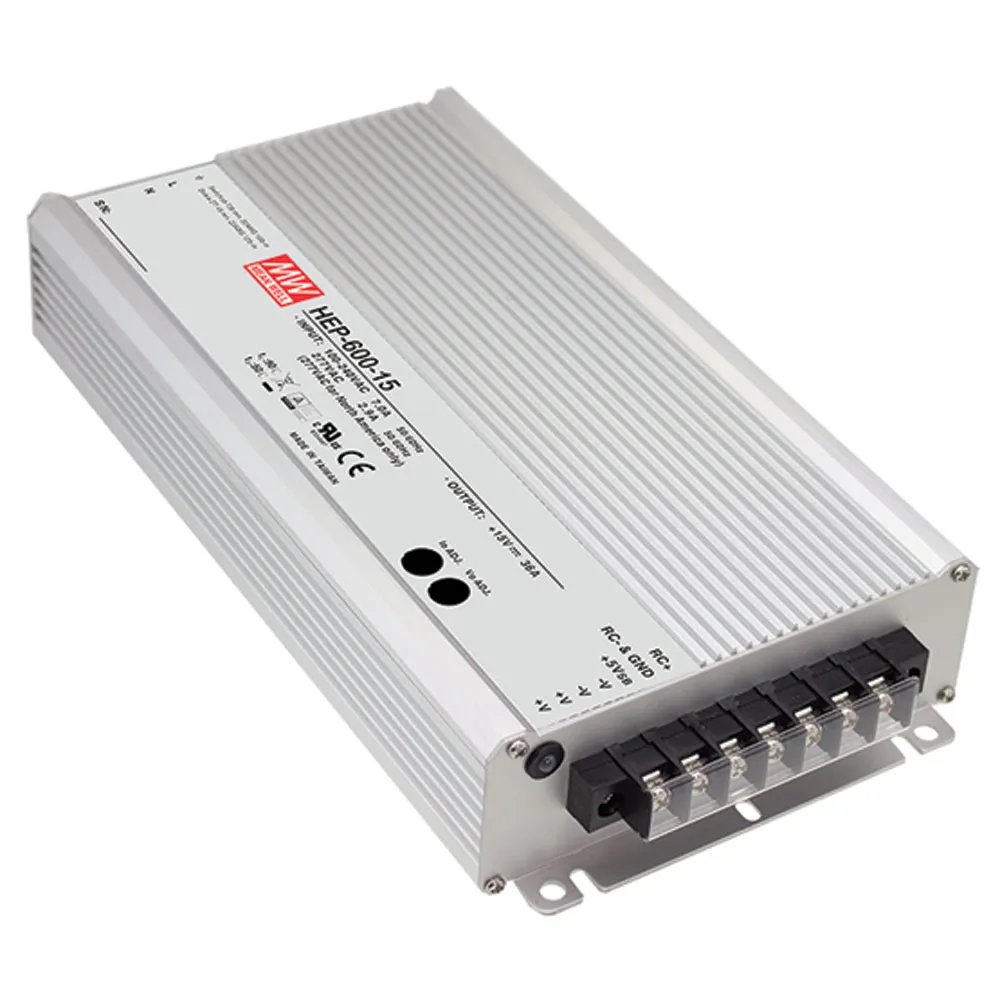

15.1 Volt 35 Amp 600 Watt AC-to-DC Single Output Battery Charger

15.1 Volts @ 35 Amps

Features

  • Voltage adjusted range: 11.5V to 15.1V
  • Current adjusted range: 17.5A to 35A
  • Efficiency: 93.5%
  • 3 stage charging
  • Universal AC input, full range
  • Built-in active PFC function
  • No load power consumption < 0.5W at remote OFF
  • Fanless design, cooling by free air convection
  • Aluminum case and filling with heat-conducted glue
  • Withstand 5G vibration test and 300VAC surge input for 5 seconds
  • Protection: short circuit, over voltage, over temperature
  • Charger for lead-acid batteries
  • 3 color LED loading indicator
  • 6 year warranty

    • Product Identification

    Additional Feature:For Lead-Acid (flooded /Gel / AGM) and Li-Ion
    Product Type:Battery Charger
    Manufacturer Series:HEP-600C

    Compliance

    Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UKCA, UL

    Dimensions & Appearance

    Color:Silver
    Height:1.91 in.
    Length:11.02 in.
    Width:5.67 in.

    Operating conditions

    Minimum Operating Temperature:-40°C
    Maximum Operating Temperature:70°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:90 VAC to 305 VAC
    Maximum Input Current:7 A

    Output

    Output Range:11.5 VDC to 15.1 VDC
    Output Voltage:13.6 VDC
    Output Connector Type:Screw Terminal Block
    Output Current:35 A

    Features

    PFC Function:Yes
    AC Power Cord:NOT INCLUDED, RECOMMEND 2295495
    Efficiency:93.5%
    Power Rating:504 W
    ,
