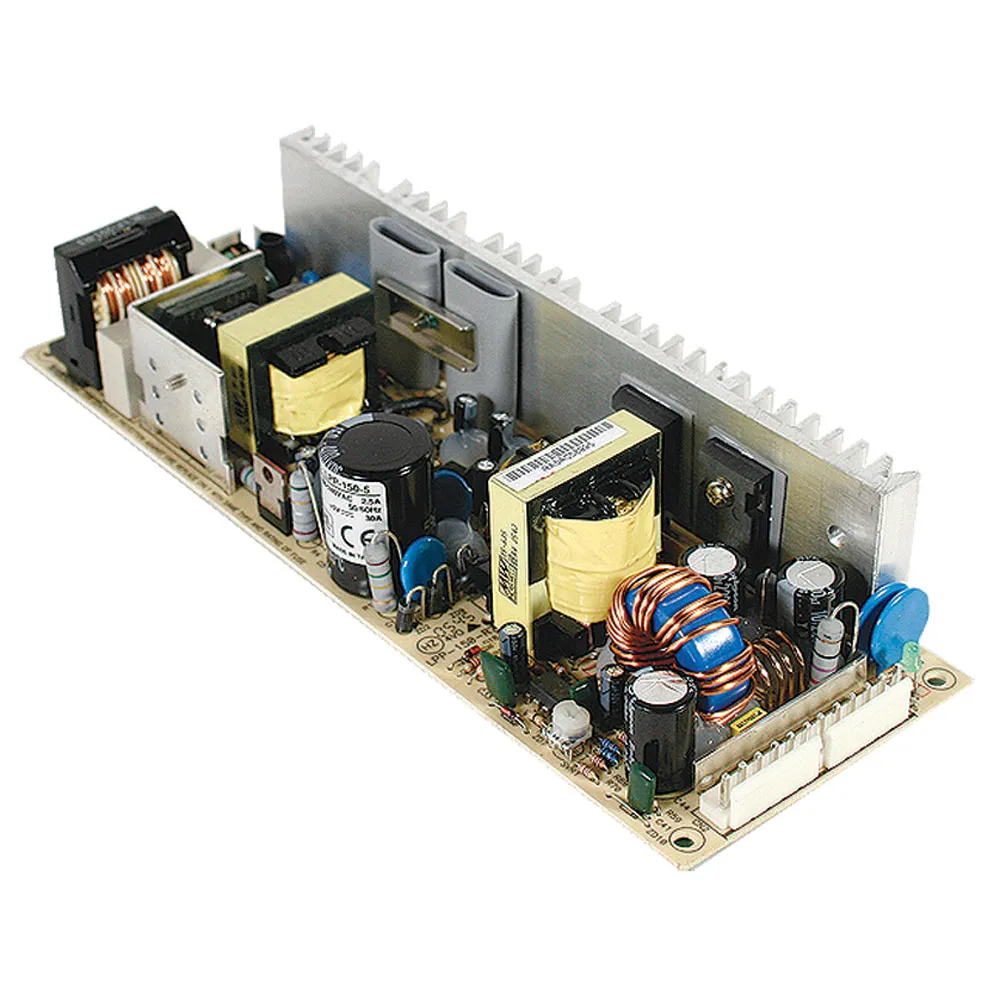

150W Single Output Power Supply with PFC


Output: 5 Volts @ 30 Amps


Features:

  • Input voltage range: 85-264 @ 47-63Hz, or 120-370VDC
  • Efficiency: 72%
  • Built-in active PFC function, PF>0.96
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • 100% full load burn-in test
  • Fixed switching frequency at PFC: 67kHz, PWM: 134kHz
  • Size: 8.7"L x 3.0"W x 1.6"H
  • Weight: 1.4 lbs.

    • Product Identification

    Manufacturer Series:LPP-150

    Compliance

    Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

    Dimensions & Appearance

    Style:Open Frame
    Height:1.60 in.
    Width:3 in.
    Length:8.70 in.

    Operating conditions

    Minimum Operating Temperature:-10°C
    Maximum Operating Temperature:60°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:85 VAC to 264 VAC
    Maximum Input Current:2.5 A

    Output

    Number of Outputs:1
    Output Connector Type:JST B6P-VH or equiv. (x2)
    Output Voltage:5 VDC
    Additional Output Voltages (VDC):N/A
    Output Current:30 A

    Features

    PFC Function:Yes
    Switching:Auto Switching SMPS
    Minimum Isolation Voltage:3000V
    Efficiency:72%
    Power Rating:150 W
    ,
