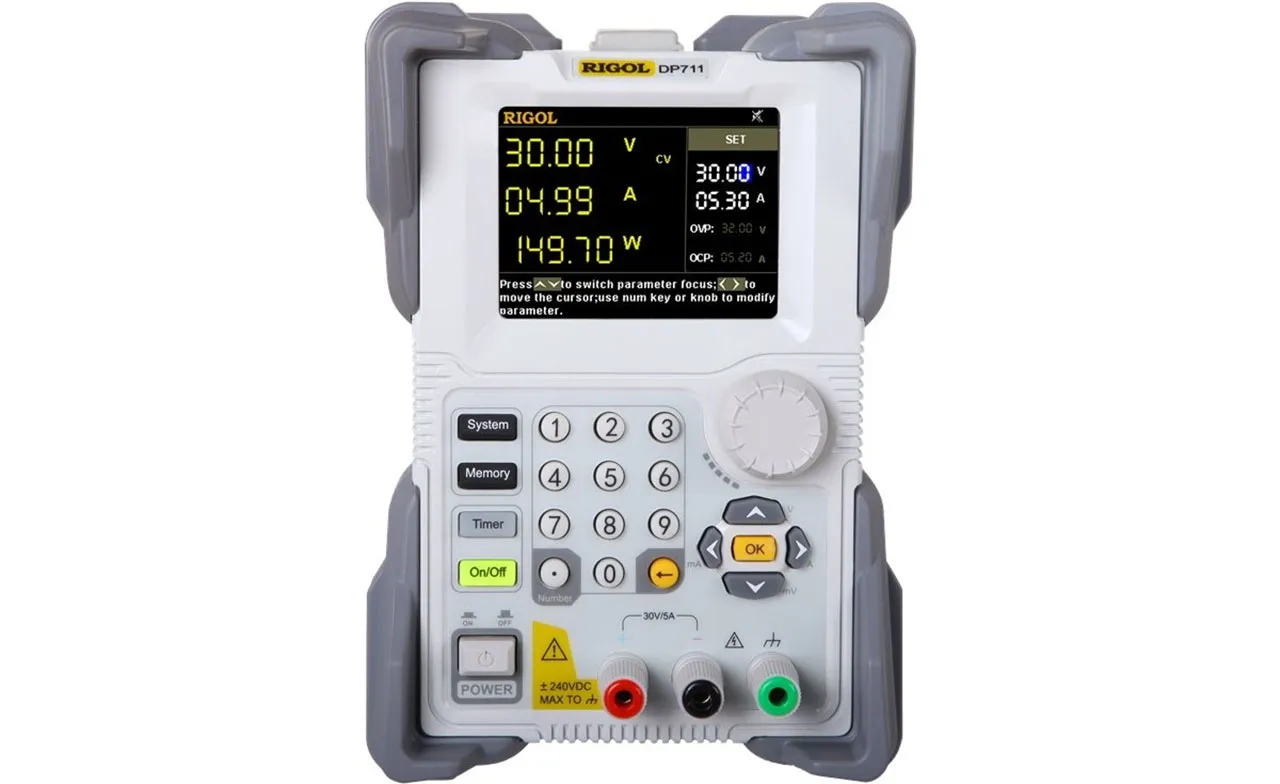

150W High Performance 1 Channel Benchtop Linear DC Power Supply 0-30V 5A

Specifications

  • Entry Level
  • Series: DP700
  • Type: Bench (AC to DC)
  • Voltage - Supply: 100/115/230VAC
  • Voltage - Output: 0 to 30V
  • Current - Output: 0 to 5A
  • Display Type: LCD
  • Number of Outputs: 1
  • Size: 13.071" L x 5.512" W x 7.953" H (332 mm x 140 mm x 202 mm)
  • Power (Watts): 150 W
  • Accuracy - Voltmeter; Ammeter: 0.05% + 20 mV; 0.2% + 10 mA
  • Voltage Regulation - Line: 0.01% + 2mV
  • Voltage Regulation - Load: 0.01% + 2 mV
  • Current Regulation - Line: 0.01% + 2 mA
  • Current Regulation - Load: 0.01% + 2 mA
  • Ripple: 0.50 mV rms, 3mV p-p

Product Identification

Product Type:Benchtop Power Supply

Compliance

RoHS Status:ROHS Compliant

Dimensions & Appearance

Weight:15 lbs.
Depth:13.1 in.
Width:5.5 in.
Height:8.0 in.

Input

Input Frequency:50Hz, 60Hz
Input Voltage:120 VAC, 220 VAC

Output

Number of Outputs:1
Output Voltage:0 VDC to 30 VDC, 5 VDC
Output Current:0 A to 5 A
Output Connector Type:Banana Jacks

Features

Type of Displays:Digital LCD
Power Rating:150 W
,
