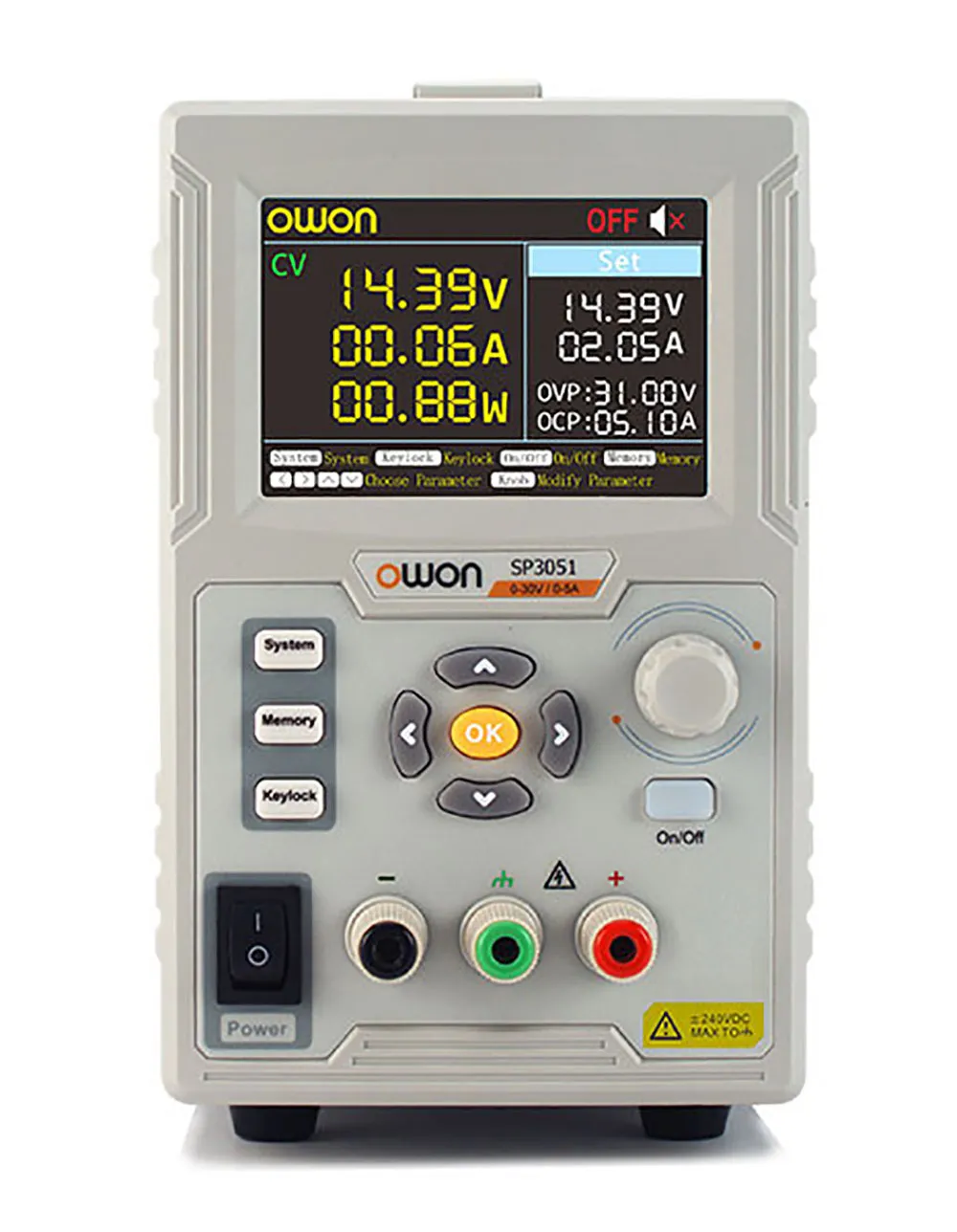

150W 30V 5A Single Channel Benchtop DC Power Supply 3.7" LCD

Features

  • Small body for easy carry
  • High resolution: 10mV/1mA
  • Low ripple and noise
  • Constant power design
  • Over-voltage and over-current protection
  • Intelligent temperature control fan cooling
  • 3.7" color TFT LCD

Specifications

  • Total Output Power: 150 W
  • Channel Output: 0 to 30 VDC / 0 to 5 A
  • Interface: RS232
  • Dimensions: 117 mm L x 295 mm D x 194 mm H
  • Power cord (C13 type) and test cables not included

Product Identification

Product Type:Benchtop Power Supply

Compliance

RoHS Status:Undefined

Dimensions & Appearance

Depth:11.61 in.
Width:4.60 in.
Height:7.64 in.

Input

Input Frequency:50Hz, 60Hz
Input Voltage:110 VAC, 220 VAC

Output

Number of Outputs:1
Output Voltage:0 VDC to 30 VDC
Output Current:0 A to 5 A
Output Connector Type:Banana Jacks

Features

Type of Displays:Digital LCD
Power Rating:150 W
,
