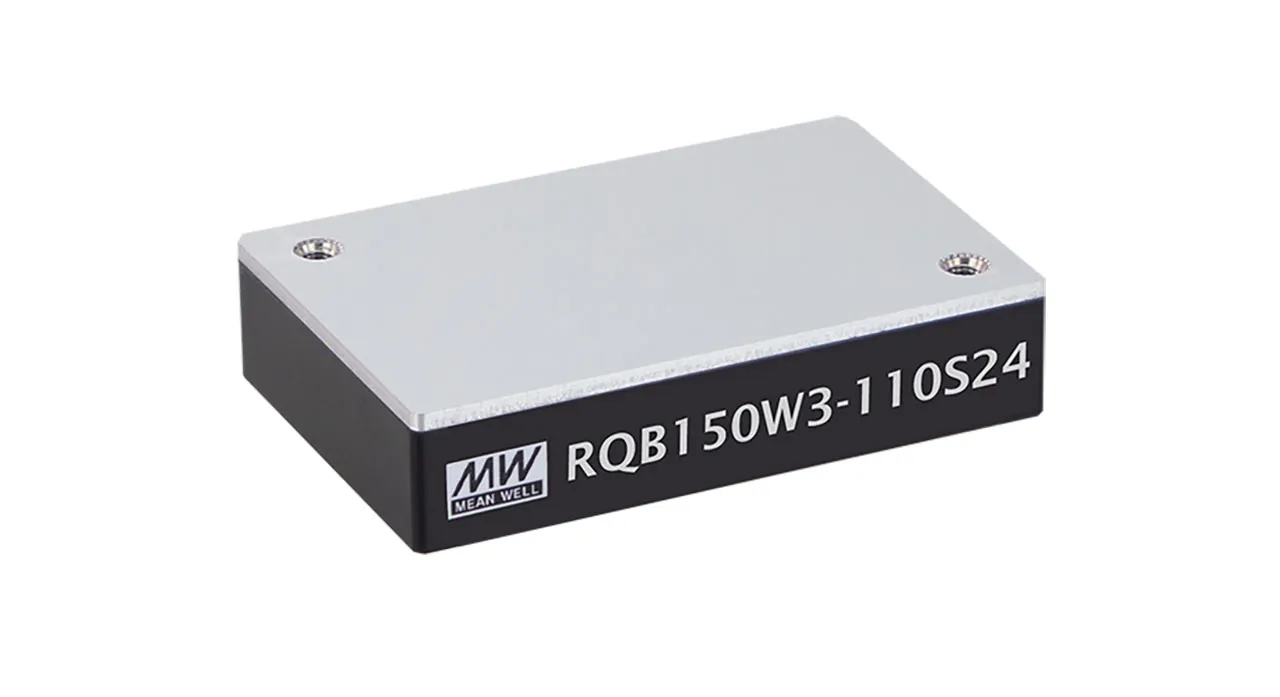

150W 24V 6.25A Railway DC-DC-Converter 60-160VDC Input Quarter Brick
Features
- Input Current: 10mA to 1.52A
- Output Voltage: 24V @ 6.25A
- Quarter-brick with industrial standard pin-out
- 3:1 (60 to 160Vdc) wide input range
- Wide operating temperature range -40 to +90°C
- No minimum load required
- Full Encapsulated
- Protections: Short circuit (Continuous)/ Overload/ Over temperature/ Over voltage/ Input under voltage lockout
- Remote ON/OFF control and remote sense
- 3 year warranty
Overview
RQB150W3 series is 150W module type DC-DC reliable railway with quarter brick package. It features international standard pins, a high efficiency up to 89%, wide working temperature range -40 to +90°C, 3KVAC I/P to O/P isolation voltage, meet EN50155 with external circuits, continuous-mode short circuit protection, ect. The models input for 60 to 160VDC 3:1 ultra-wide input range, and various output voltage, 24V for single output, which are suitable for railway, trams, buses and also can be used in the harsh environment with high vibration, high dust, extremely low or high temperature, ect.
Product Identification
Type:Isolated
Product Type:DC-DC Converter for Railway SMPS
Manufacturer Series:RQB150
Compliance
Agency Approvals:CE, EN, EAC, UKCA
Dimensions & Appearance
Color:Black
Height:0.50 in.
Width:1.45 in.
Length:2.28 in.
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:90°C
Input
Input Voltage Range:60 VDC to 160 VDC
Input Voltage:110 VDC
Maximum Input Current:1.52 A
Output
Number of Outputs:1
Output Connector Type:PC Pins
Output Voltage:24 VDC
Additional Output Voltages (VDC):N/A
Output Current:6.25 A
Features
Pins:8
Efficiency:89%
Power Rating:150 W
