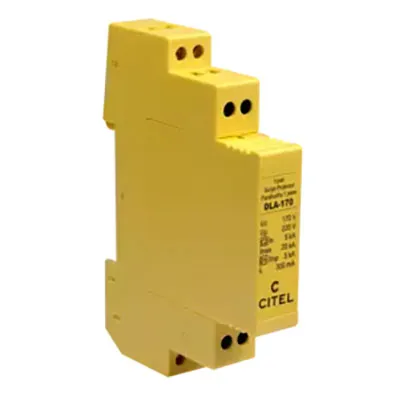

150V Modular Data Line Surge Protection Device 20kA IMAX Surge DIN Rail Mount

Specifications

  • Max Load Current (IL): 300 mA
  • Power SPD Type: UL497B
  • Volts (V): 150
  • Wires: 2W+Shield+Ground
  • Line Current Max (A): 0.3
  • Ambient Min (C): -50
  • Ambient Max (C): +85
  • Residual Voltage (V): 220
  • MCOV (V): 170/225/225
  • IN (kA): 10
  • SCCR (kA): n/a
  • IMAX (kA): 20
  • Limp (kA): 5
  • Data Speed (bps): 10/100
  • Frequency (MHz): >3
  • Insertion Loss (@ Freq)(db): <1
  • Capacitance (pF): <50
  • Technology: Hybrid SAD-GDT
  • Network Configuration: 1 Channel (2W+Shield+G
  • Connection Method: Screw Terminal (16-22 AWG)
  • Mounting: DIN Rail
  • Material: Thermoplastic UL94-V0
  • NEMA Rating (IP Rating): NEMA 2 (IP20)
  • Weight: 0.30 lbs.
  • Spare Part: DLAM-170D3
  • UL Standard: UL497B
  • UL Category: QVGQ
  • UL File Number: E184939
  • Standards: IEC 61643-11, NOM-003-SCFI-2014, NOM-001-SCFI-1993

Compliance

Agency Approvals:UL497B

Dimensions & Appearance

Depth:N/A
Height:N/A
Width:N/A
Mounting Type:DIN Rail

Input

Input Voltage:N/A

Features

Failsafe Protection:N/A
Short Circuit Protection:N/A
Surge Current Rating:20 kA
Technology:N/A
Protection Style:N/A
IP Rating:N/A
Application:Telephone, ADSL, DSL
Maximum Clamping Voltage:N/A
Voltage Rating:170 VDC
Current Rating:N/A
,
