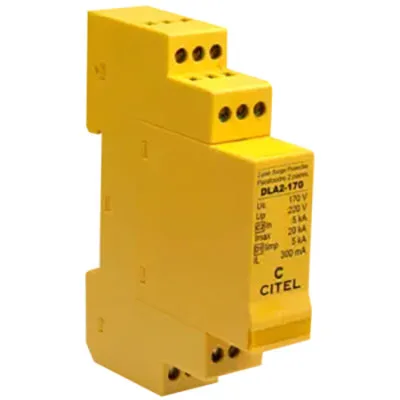

150V Dataline Surge Protection Device Hybrid SAD-GDT 170V MCOV 20kA IMAX

This modular DIN rail mounted dataline surge protection device (SPD) designed for 150 volt dataline circuits. It features Hybrid SAD-GDT technology and offers 20kA IMAX surge current rating and 5 kA impulse current per module.

Specifications

• 20 kA Imax (1x 8/20us)
• 5 kA Imp (2x 10/350us)
• 10 kA In (10x 8/20us)
• Max. load current (IL): 300 mA
• Impulse current (Iimp): 5 kA
• Nominal discharge current (In): 5 kA
• Data SPD Type: UL497B Listed
• Volts: 150 V
• Wires: 4W+SHIELD+GROUND
• Line Current Max: 0.3 A
• Ambient Temperature: -40°C to +85°C
• Residual Voltage: 220 V
• MCOV (V): 170 / 225 / 225
• IN (kA): 10 (kA)
• IMAX (kA): 20
• Iimp (kA): 5
• Data Speed: (bps): 10/100
• Frequency: (MHz): >3
• Insertion Loss (@ Freq.): (db): < 1
• Capacitance: (pF): < 50
• Technology: Hybrid SAD-GDT
• Network Configuration: 2 Channel (4W+SHIELD+G)
• Connection Method: Screw Terminal (16 to 22 AWG)
• Mounting: DIN Rail
• Material: Thermoplastic UL94-V0
• NEMA Rating (IP Rating): NEMA 2 (IP20)
• Spare Part: DLA2M-170D3
• UL Standard: UL497B
• UL Category: QVGQ
• IL File Number: E184939
• Standards: IEC 61643-11, NOM-003-SCFI-2014, NOM-001-SCFI-1993
