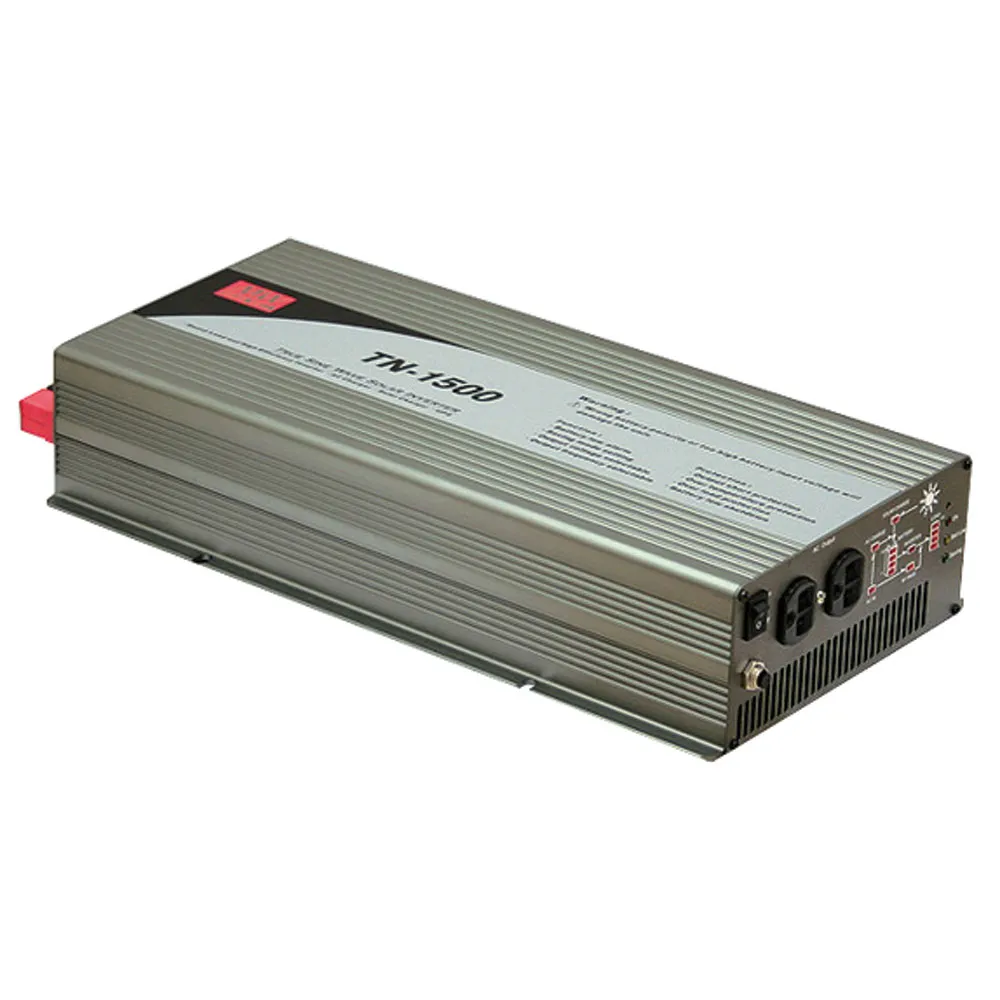

1500W True Sine Wave DC-to-AC Inverter
Output: 100/110/115/120VAC @ 50/60Hz selectable by switch ± 3%Features:
- Input range: 10.5VDC-15VDC
- Total harmonic distortion (THD): <3%
- Protections: Battery low alarm/Battery low shutdown/Over-voltage/Over-temperature/Output short/Input reverse polarity/Overload
- Thermostatically-controlled cooling function
- High surge power up to 3000W
- High efficiency up to 91%
- Battery input protection fuse: 40A x 5
- Low input voltage warning alarm at 11.3VDC
- Low input voltage shut-down at 10.5VDC
- Input connection: Tubular-type screw-down terminals
- Output connection: 3-prong AC receptacle NEMA 5-15R
- Size: 16.5"L x 8.7"W x 3.5"H
- Weight: 7.5 lbs.
Product Identification
Product Type:True Sine DC-AC Inverter
Manufacturer Series:TS-1500
Compliance
Agency Approvals: CE, EAC, UKCA, FCC, FCC, CE, EAC, UKCA
Dimensions & Appearance
Color:Gray
Height:3.46 in.
Length:16.53 in.
Width:8.66 in.
Mounting:Chassis
Operating conditions
Minimum Operating Temperature:0°C
Maximum Operating Temperature:40°C
Input
Input Frequency:50 Hz, 60 Hz
Input Voltage:12 VDC
Input Voltage Range:10.5 VDC to 15 VDC
Maximum Input Current:150 A
Output
Number of Outputs:1
Output Connector Type:NEMA 5-15R
Output Voltage:100 VAC, 110 VAC, 115 VAC, 120 VAC
Output Current:N/A
Features
AC Power Cord:NOT INCLUDED
Efficiency:87%
Power Rating:1500 W
