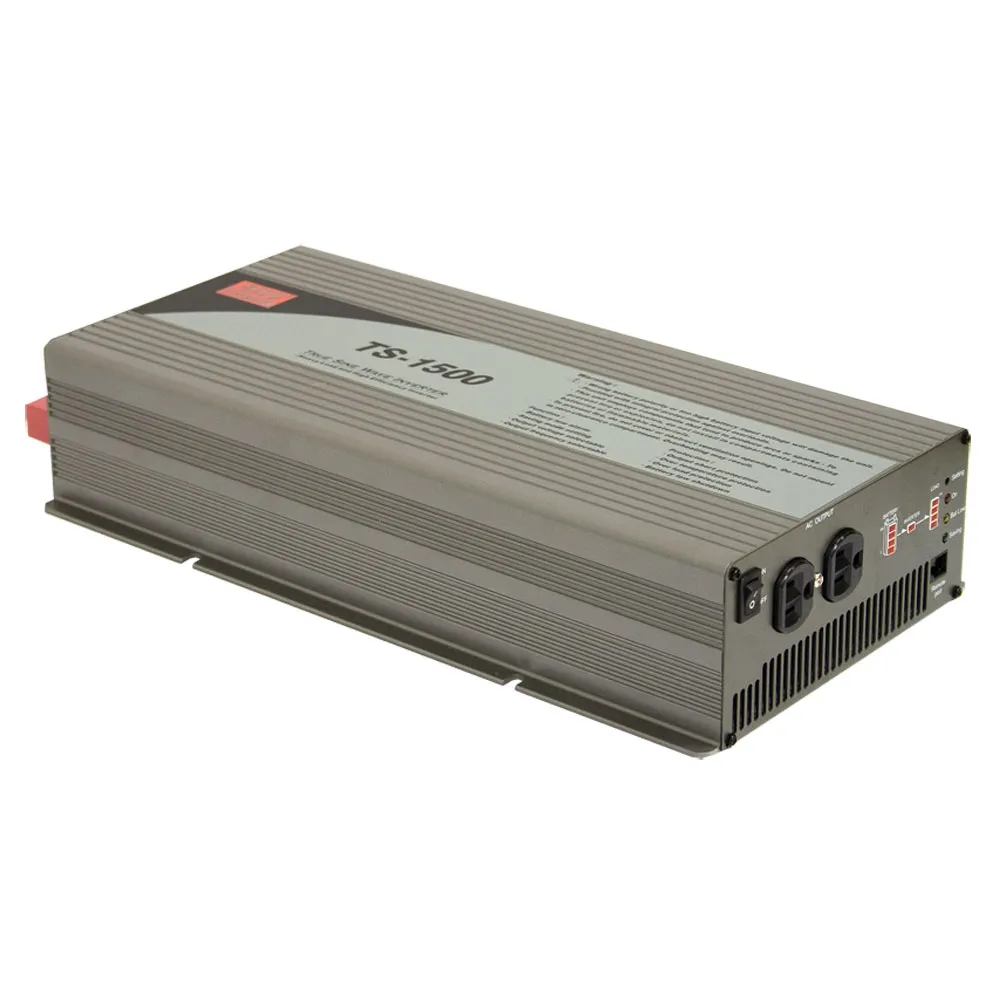

1500W True Sine Wave DC-AC Power Inverter

24 Volts @ 75 Amps

Features:

  • True sine wave output (THD<3%)
  • High surge power up to 3000W
  • High efficiency up to 91%
  • Power ON-OFF switch
  • Standby saving mode can be selectable
  • Front panel indicator for operation status
  • Thermostatically controlled cooling fan
  • Protections: Bat. low alarm / Bat. low shutdown / Over voltage / Over temp./ Output short / Input polarity reverse / Overload
  • Application : Home appliance, power tools, office and portable equipment, vehicle and yacht, etc.
  • Optional monitoring software
  • 3 years warranty

Product Identification

Product Type:True Sine DC-AC Inverter
Manufacturer Series:TS-1500

Compliance

Agency Approvals: CB, CE, EAC, UKCA, FCC, FCC, CB, CE, EAC, UKCA

Dimensions & Appearance

Mounting:Chassis
Color:Gray
Height:3.46 in.
Length:16.53 in.
Width:8.66 in.

Operating conditions

Minimum Operating Temperature:0°C
Maximum Operating Temperature:40°C

Input

Input Frequency:50 Hz, 60 Hz
Input Voltage:24 VDC
Input Voltage Range:21 VDC to 30 VDC
Maximum Input Current:75 A

Output

Number of Outputs:1
Output Connector Type:Euro Plug
Output Voltage:200 VAC, 220 VAC, 230 VAC, 240 VAC
Output Current:N/A

Features

AC Power Cord:NOT INCLUDED
Efficiency:90%
Power Rating:1500 W
,
